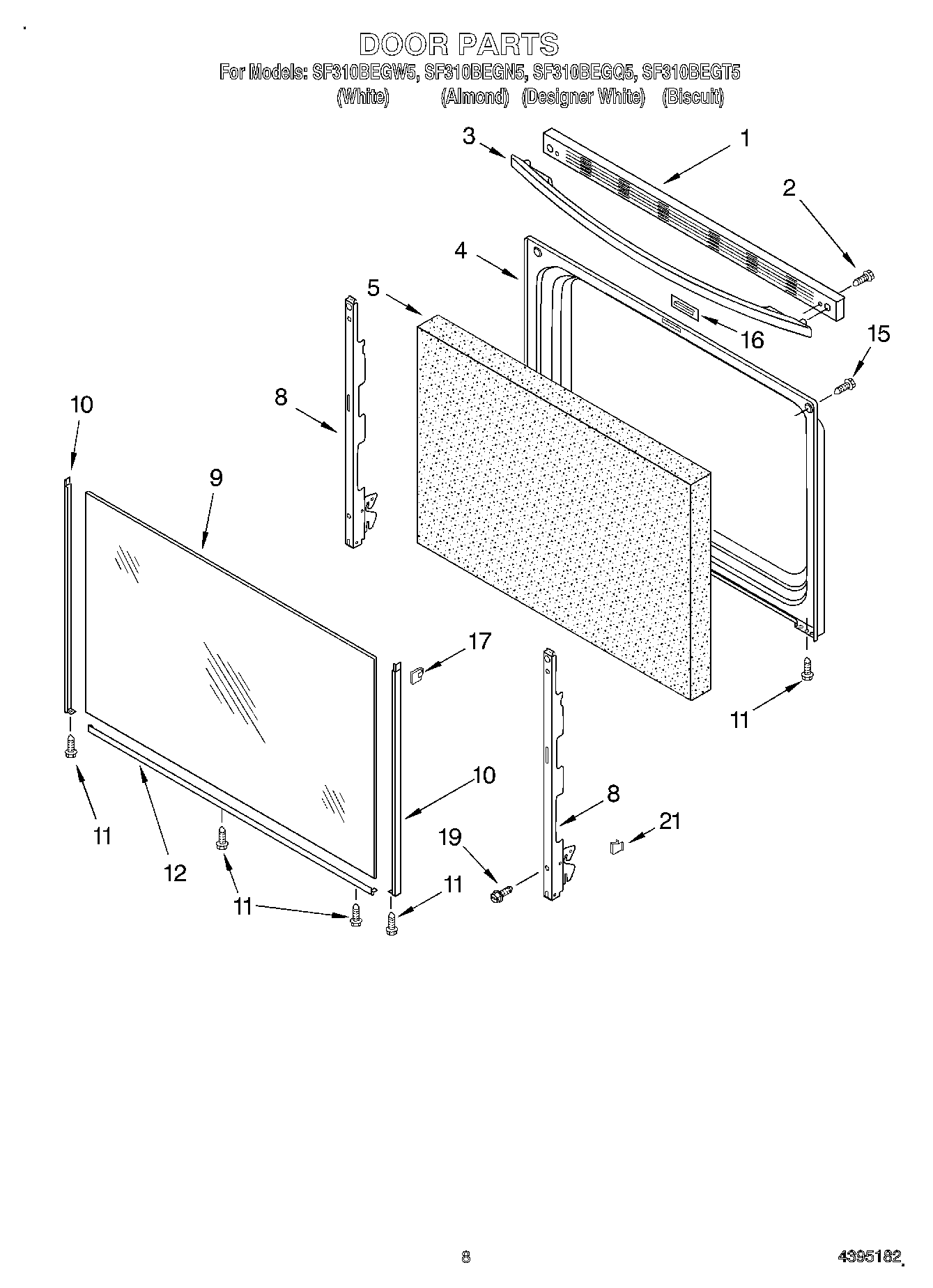

SF310BEGT5 06 – DOOR, OPTIONAL

SF310BEGT5 06 – DOOR, OPTIONAL

Written by

in

SF310BEGT5 06 – DOOR, OPTIONAL

Products

Position	Product
1	Trim, Top (Black)
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Biscuit)
2	WP179051 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
3	Handle, Door (Biscuit)
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	WPW10278991 Whirlpool Insulation
8	Hinge, Door (2)
9	Glass, Door (Biscuit)
9	Glass, Door (White)
9	Glass, Door (Black)
10	8184860 Whirlpool Oven Door Trim
11	W10491985 Whirlpool Screw
12	8184858 Whirlpool Door Trim
12	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
15	WP3196164 Whirlpool Screw
16	Plug, Door
17	Clip, Glass (4)
19	WP3196175 Whirlpool Screw
21	Grease
21	8212471 Whirlpool Oven Paint
21	1
21	Wire (14 Ga. 200 c Brown)
21	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
21	WPL 8053588
21	WPL 8053527
21	WPL 8273341
21	3196896 Whirlpool Clip
21	18 Ga. 80~c Rating (Red)
21	Wire (12 Ga. 150 c Black)
21	Wire (14 Ga. 150 c Yellow)
21	WPL 799832
21	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
21	511873 Whirlpool Refrigerator Paint
21	4392901 Whirlpool Biscuit Spray Paint
21	4392899 Whirlpool Biscuit Touch-Up Paint
21	350942 Whirlpool Spray Paint
21	Almond (Uncut)
21	WP72107 Whirlpool Touchup
21	799344 Whirlpool Refrigerator Paint
21	72017 Whirlpool Appliance Touch-Up Paint White
21	350956 Whirlpool Spray Assembly
21	WPW10208653 Whirlpool Insulation
21	FOIL, ALUMINUM OVEN (18“ X 25 )
21	Wire, 25` Roll (Black 14 Ga.)
21	Wire (14 Ga. 150 c Orange)
21	Wire (14 Ga. 150 c Green)
21	Wire (14 Ga. 150 c Brown)
21	Wire (14 Ga. 150 c Blue)
21	242831 Whirlpool Oven Wire
21	3400964 Whirlpool Oven Clip
21	WP3196925 Whirlpool Clip Assembly
21	814381 Whirlpool Pin
21	285006 Whirlpool Spray
21	Wire, 25“ Roll (White 14 GA.)
21	Wire, 25` Roll (Red 14 Ga.)
21	350930 Whirlpool White Spray Paint
