SF310PEAN2 03 – BROILER AND OVEN BURNER

SF310PEAN2 03 – BROILER AND OVEN BURNER

Written by

in

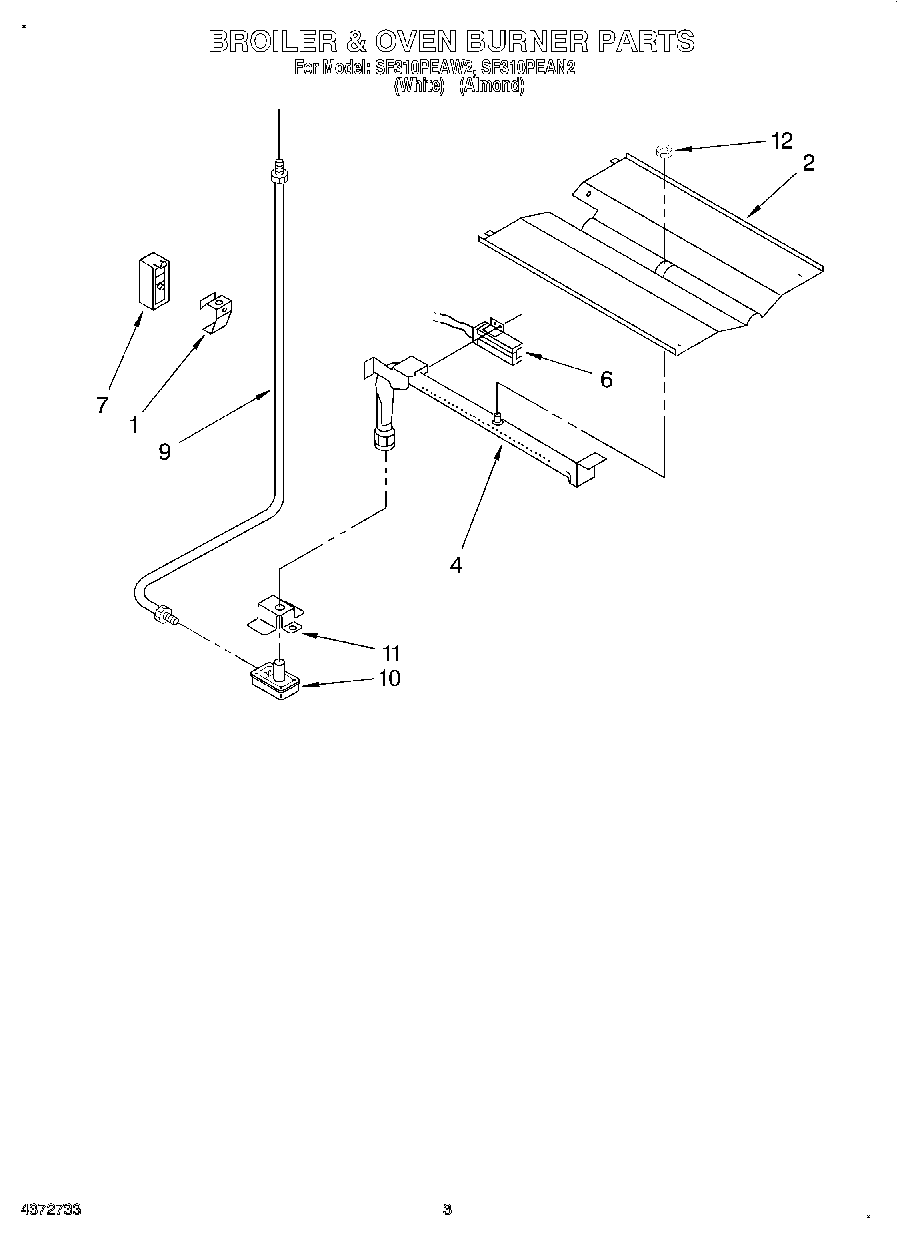

SF310PEAN2 03 – BROILER AND OVEN BURNER

Products

Position	Product
1	Bracket, Burner
2	Baffle, Oven Burner
4	Burner, Oven
6	814269 Whirlpool Oven Flat Igniter
7	Module, Spark
9	Tubing, Valve
10	Valve, Safety
11	Bracket, Valve
12	Nut, Hex (2)
