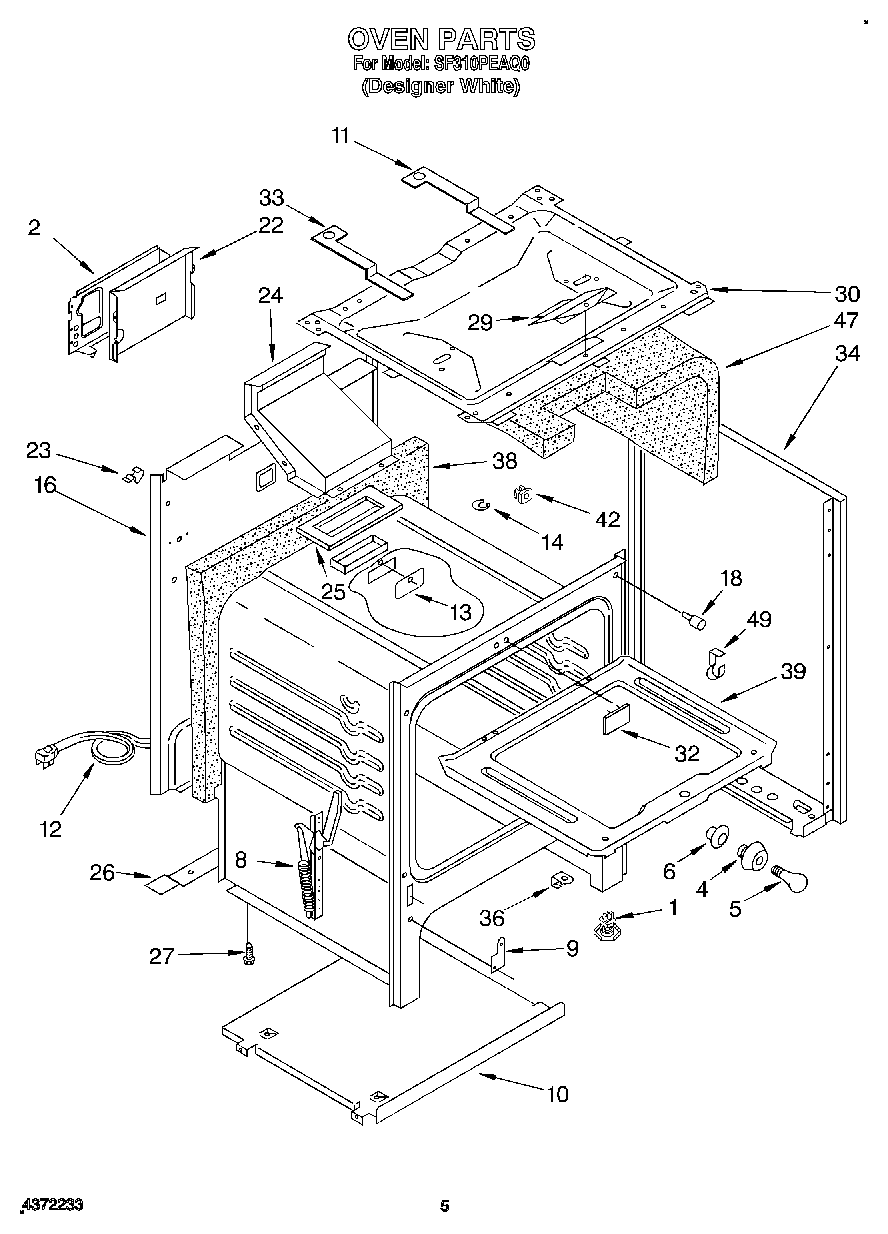

SF310PEAQ0 05 – OVEN

Products

Position	Product
1	Screw, Leveler (4)
2	Shield, Module
4	Housing, Oven Light
5	RANGE ONLY 40W 120V APPL BULB
6	W10856866 Whirlpool Light Socket
8	Hinge, Oven Door
9	Cover, Hinge
10	Base, Broiler
11	Bracket, Top RH
12	Cord, Power
13	Plate, Cover
14	Fastener, U Type
16	Back, Main
18	Bumper, Front (4)
22	Shield, Flue
23	Clip, Wire
24	Flue Box
25	Gasket, Flue
26	Bracket, Anti-Tip
27	Screw, Oven Bottom
29	Plate, Cover
30	Burner Box
32	Cover, Front
33	Bracket, Top LH
34	Panel, Side (White LH)
34	Panel, Side (White RH)
36	Support, Oven Bottom
38	Insulation, Oven Back
39	Bottom, Oven
42	Spacer, Body (8)
47	WPW10208653 Whirlpool Insulation
49	Clip, Thermo Bulb
