SF310PEAQ1 04 – CONTROL PANEL

SF310PEAQ1 04 – CONTROL PANEL

Written by

in

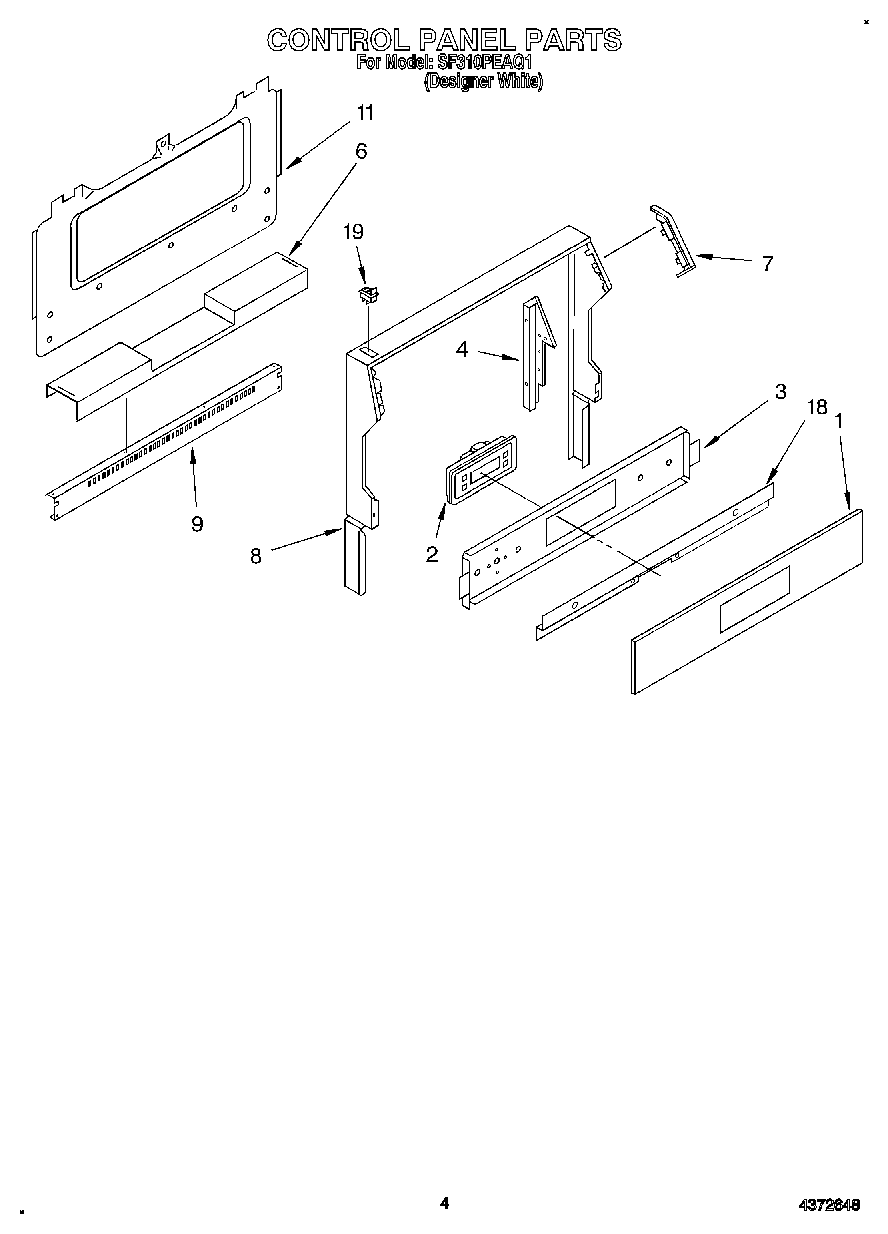

SF310PEAQ1 04 – CONTROL PANEL

Products

PositionProduct
1Panel, Control
2Clock, Electronic
3Plate, Timer Mounting
4Support, Control Panel (R.H.)
4Support, Control Panel (L.H.)
6Deflector, Flue
7Cap, End (R.H.)
7Cap, End (L.H.)
8Screw, Panel (4)
8Trim, Wrapper
9Trim, Vent
11Shield, Rear Wall
18Retainer, Timer
19Switch, Rocker
