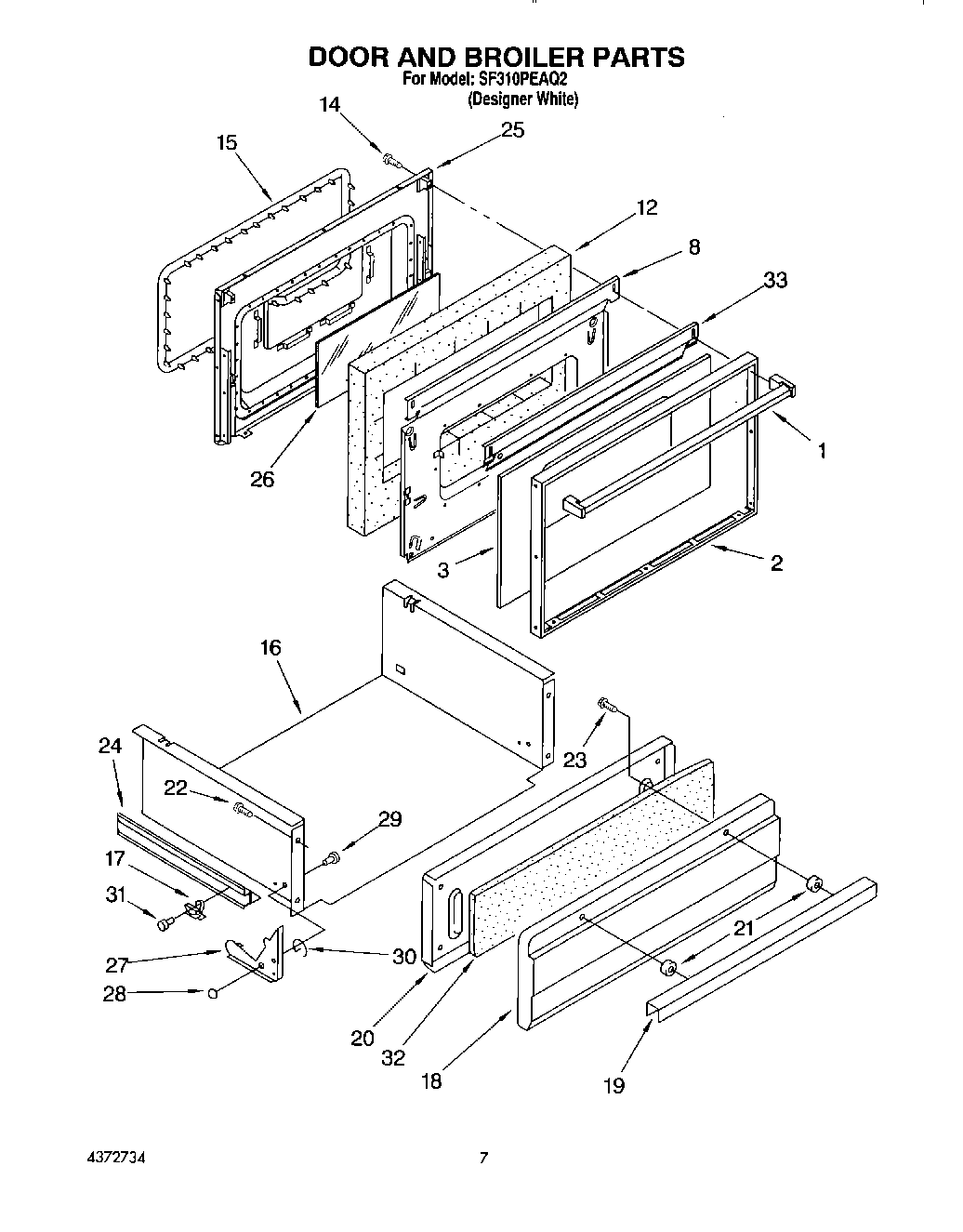

SF310PEAQ2 06 – DOOR AND BROILERadmin2025-04-26T11:21:57+00:00SF310PEAQ2 06 – DOOR AND BROILER
Products
| Position | Product |
|---|
| 1 | Handle, Door |
| 2 | Screw, Panel (4) |
| 2 | Trim, Oven Door |
| 3 | Glass, Door |
| 8 | Shield, Heat |
| 12 | Insulation |
| 14 | Screw, Handle |
| 15 | Seal, Door |
| 16 | Body, Broiler |
| 17 | Glide, Drawer (6) |
| 18 | Panel, Drawer (White) |
| 19 | Handle, Broiler Drawer |
| 20 | Liner, Broiler Door |
| 21 | Spacer, Handle |
| 22 | Screw, Panel (4) |
| 23 | Screw, Handle (2) |
| 24 | Channel, Broiler |
| 25 | Liner, Oven Door |
| 26 | Glass, Inner |
| 27 | Bracket, Hinge (L.H.) |
| 27 | Bracket, Hinge (R.H.) |
| 28 | Fastener, Push Nut |
| 29 | Pin, Hinge (2) |
| 30 | Spring, Broiler (L.H.) |
| 30 | Spring, Broiler (R.H.) |
| 31 | Button, Glide (2) |
| 32 | Insulation |
| 33 | Liner, Oven Door |
