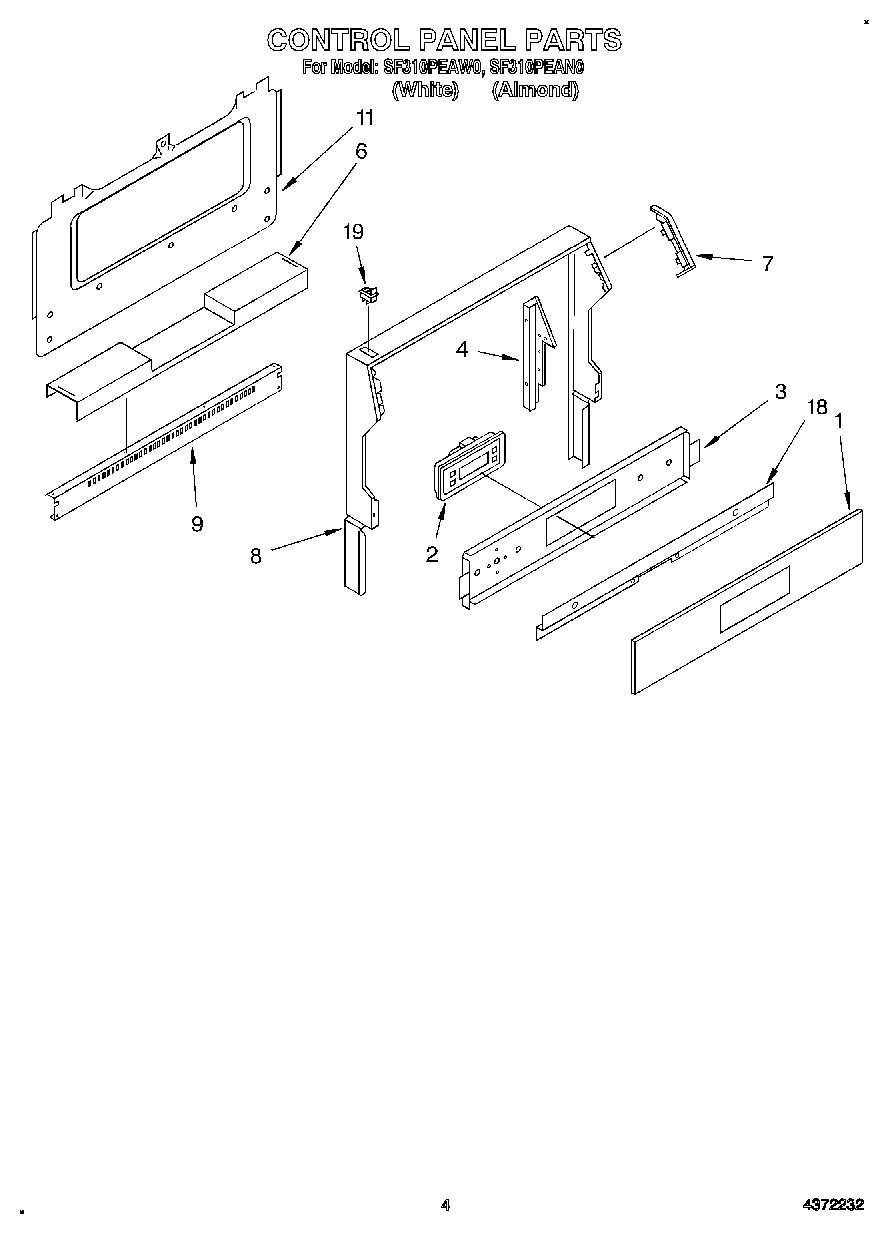

SF310PEAW0 04 – CONTROL PANELadmin2025-04-26T11:23:00+00:00SF310PEAW0 04 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Panel, Control |
| 2 | Clock, Electronic |
| 3 | Plate, Timer Mounting |
| 4 | Support, Control Panel (L.H.) |
| 4 | Support, Control Panel (R.H.) |
| 6 | Deflector, Flue |
| 7 | Cap, End (R.H.) |
| 7 | Cap, End (L.H.) |
| 8 | Trim, Wrapper |
| 9 | Trim, Vent |
| 11 | Shield, Rear Wall |
| 18 | Retainer, Timer |
| 19 | WP4314961 Whirlpool Lite Switch |
