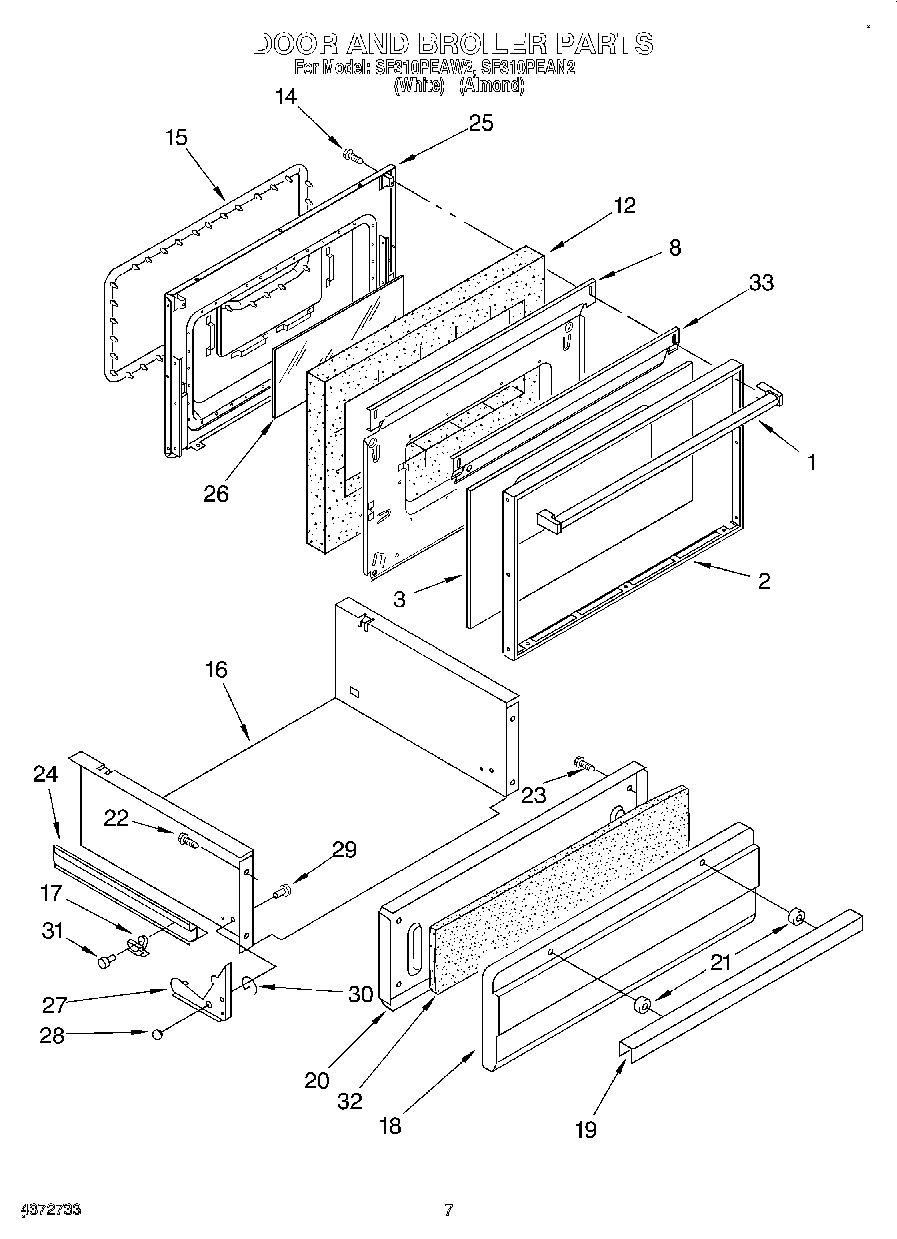

SF310PEAW2 06 – DOOR AND BROILER

Products

PositionProduct
1Handle, Door
2Trim, Door
3Glass, Door
8Shield, Heat
12Insulation
14Screw, Handle
15Seal, Door
16Body, Broiler
17Glide, Drawer (6)
18Panel, Drawer
19Handle, Utility Drawer
20Liner, Broiler Door
21Spacer, Handle
22Screw, Panel (4)
23Screw, Handle (2)
24Channel, Broiler
25Liner, Oven Door
26Glass, Inner
27Bracket, Hinge (L.H.)
27Bracket, Hinge (R.H.)
28Fastener, Push Nut
29Pin, Hinge (2)
30Spring, Broiler (L.H.)
30Spring, Broiler (R.H.)
31Button, Glide (2)
32Insulation
33Sheild, Door Top
