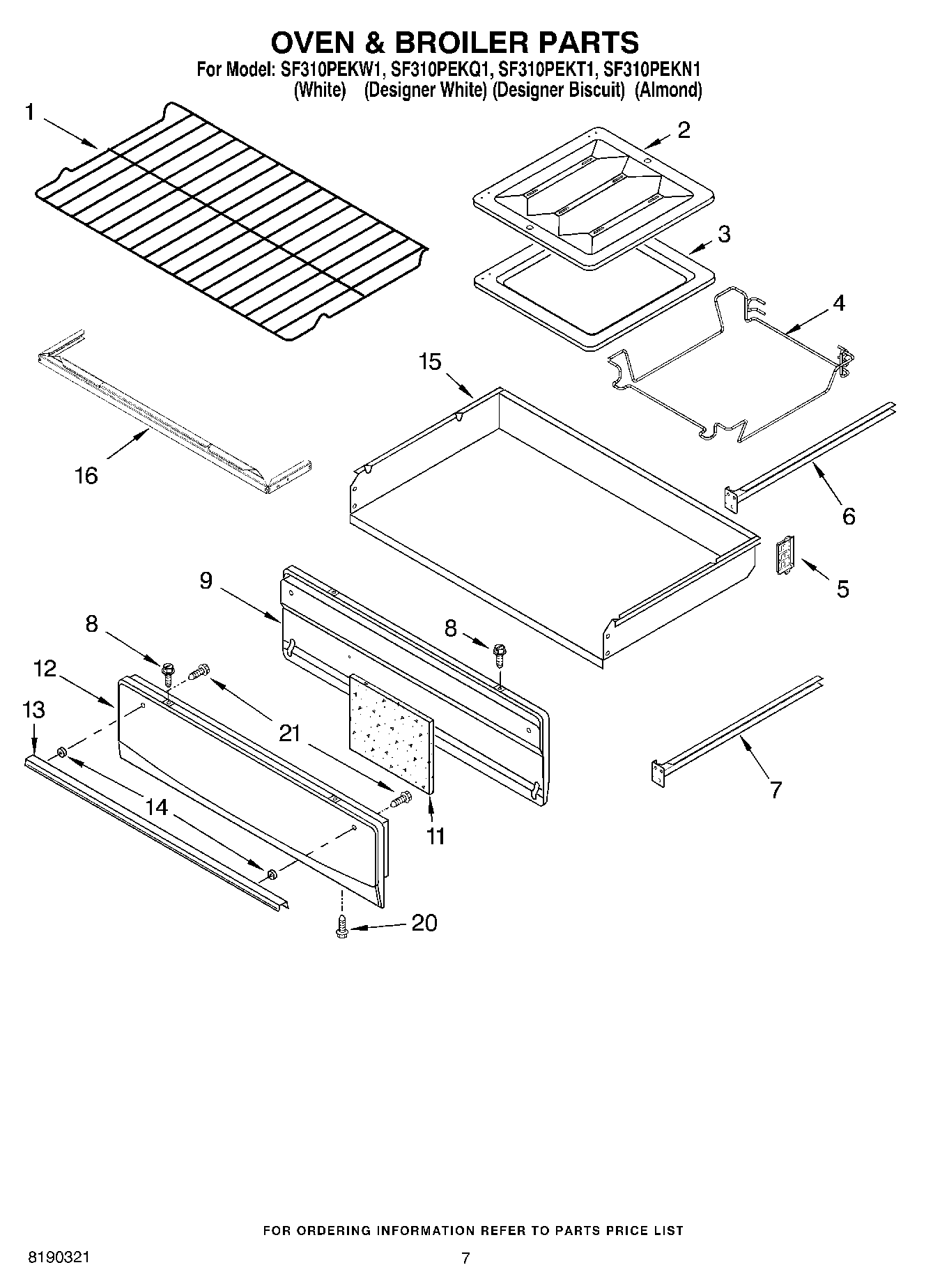

SF310PEKQ1 05 – OVEN & BROILER PARTS

Products

PositionProduct
1Rack, Oven (2)
2WP98003480 Whirlpool Grill Pan
3WP98016005 Whirlpool Broiler Pan
4Rack, Broiler
5Bracket, Rack
6W10206642 Whirlpool Drawer Guide
6WPW10206641 Whirlpool Drawer Guide
7WPW10206639 Whirlpool Drawer Guide
798004994 Whirlpool Oven Drawer Guide
8Screw (Almond)
8Screw (Biscuit)
83196166 Whirlpool Screw
9Liner, Door
11Insulation, Door
12Panel, Door (Almond)
12Panel, Door (White)
12Panel, Door (Biscuit)
13Handle, Brlr Door (Almond)
13Handle, Brlr Door (Biscuit)
13Handle, Brlr Door (White)
14Spacer, Handle
15Storage, Drawer
16Support Rack, Broiler
20WP3400805 Whirlpool Screw Assembly
21Screw
