SF310PEKT0 06 – DOOR

SF310PEKT0 06 – DOOR

Written by

in

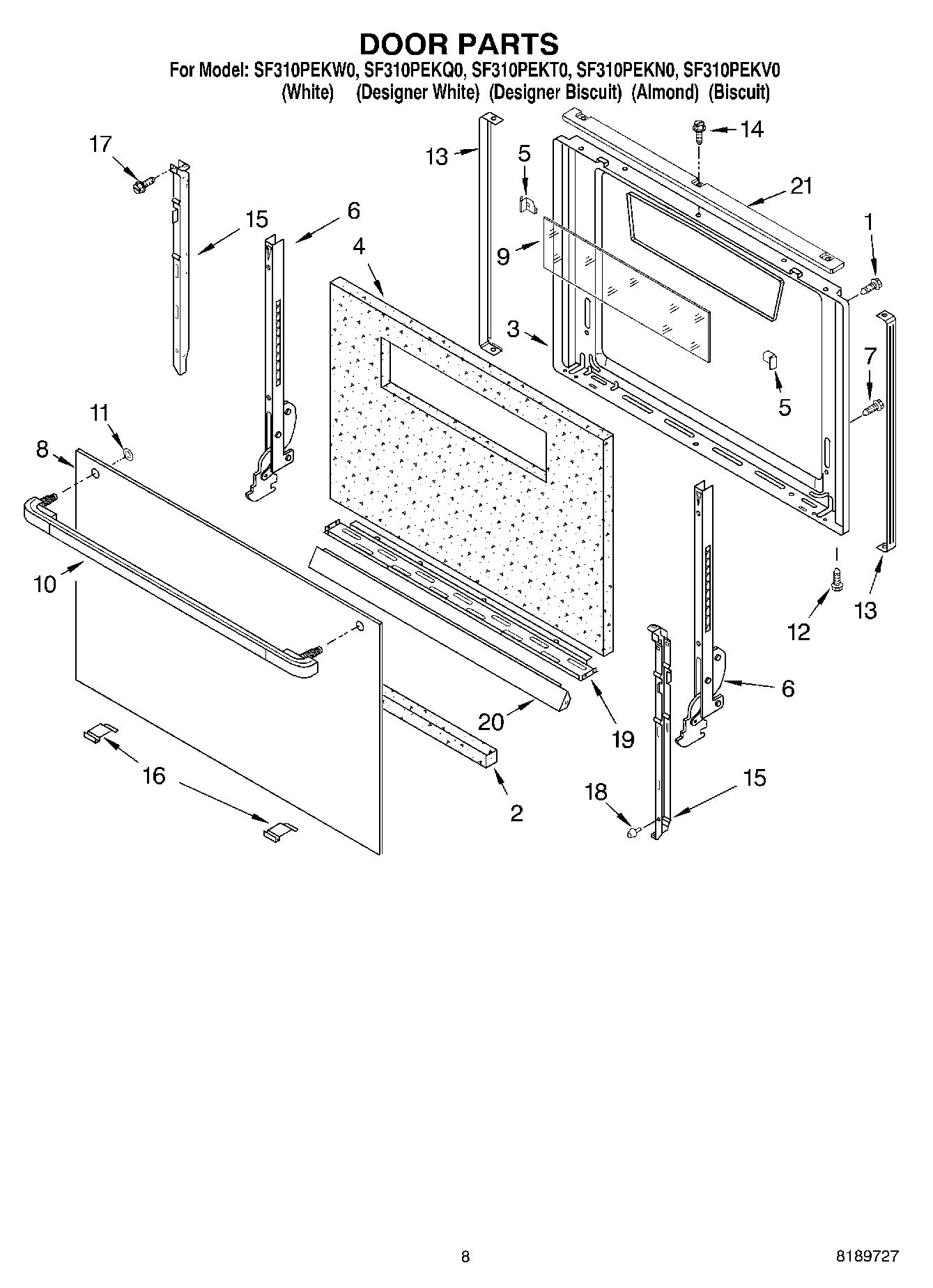

SF310PEKT0 06 – DOOR

Products

Position	Product
1	WP98004218 Whirlpool Screw
2	Insulation
3	98010182 Whirlpool Door Liner
4	Insulation, Door
5	98004953 Whirlpool Clip
5	98004952 Whirlpool Oven Clip
6	Hinge, Door (2)
7	W11206744 Whirlpool Screw
8	Panel, Door (Black)
8	Panel, Door (White)
8	Panel, Door (Biscuit)
9	Glass, Inner
10	WP98005317 Whirlpool Door Handle
10	Handle, Oven Door (Biscuit)
10	WP98005318 Whirlpool Door Handle
11	WP98004650 Whirlpool Nut
12	WP59002061 Whirlpool Microwave Screw
13	98006794 Whirlpool Oven Door Trim
13	98008174 Whirlpool Oven Door Trim
13	WP98006793 Whirlpool Door Trim Assembly
14	Screw (Almond)
14	3196166 Whirlpool Screw
14	Screw (Biscuit)
14	WP3400832 Whirlpool Screw
15	98004564 Whirlpool Oven Retainer
15	98004629 Whirlpool Oven Retainer
16	WP98010187 Whirlpool Range Door Trim
16	98010184 Whirlpool Oven Door Trim
16	WP98010185 Whirlpool Door Trim
17	WP3400805 Whirlpool Screw Assembly
18	98004227 Whirlpool Oven Bumper
19	98004938 Whirlpool Oven Retainer
20	Insulation, Retainer-Bottom
21	72017 Whirlpool Appliance Touch-Up Paint White
21	Wire, 25` Roll (Black 14 Ga.)
21	98008175 Whirlpool Door Trim
21	WPL 98005552
21	Wire, 25` Roll (Red 14 Ga.)
21	Harness, Switch
21	FOIL, ALUMINUM OVEN (18“ X 25 )
21	WPW10208653 Whirlpool Insulation
21	WPL 799832
21	799344 Whirlpool Refrigerator Paint
21	WP72107 Whirlpool Touchup
21	511873 Whirlpool Refrigerator Paint
21	Almond (Uncut)
21	350942 Whirlpool Spray Paint
21	549193 Whirlpool Refrigerator Power Clamp
21	350956 Whirlpool Spray Assembly
21	350930 Whirlpool White Spray Paint
21	98017831 Whirlpool Oven Anchor Tip
21	Top Trim, Door (White)
21	Wire (14 Ga. 200 c Brown)
21	Wire (14 Ga. 150 c Yellow)
21	Wire (14 Ga. 150 c Orange)
21	Wire (12 Ga. 150 c Black)
21	8212471 Whirlpool Oven Paint
21	Grease
21	WP9757891 Whirlpool Power Cord
21	CLIP, WIRE
21	Wire (14 Ga. 150 c Green)
21	Wire (14 Ga. 150 c Brown)
21	Wire (14 Ga. 150 c Blue)
21	242831 Whirlpool Oven Wire
21	814381 Whirlpool Pin
21	285006 Whirlpool Spray
21	1
21	Wire, 25“ Roll (White 14 GA.)
21	98006884 Whirlpool Oven Door Trim
21	18 Ga. 80~c Rating (Red)
