SF310PEPW0 06 – COOKTOP

SF310PEPW0 06 – COOKTOP

Written by

in

SF310PEPW0 06 – COOKTOP

Products

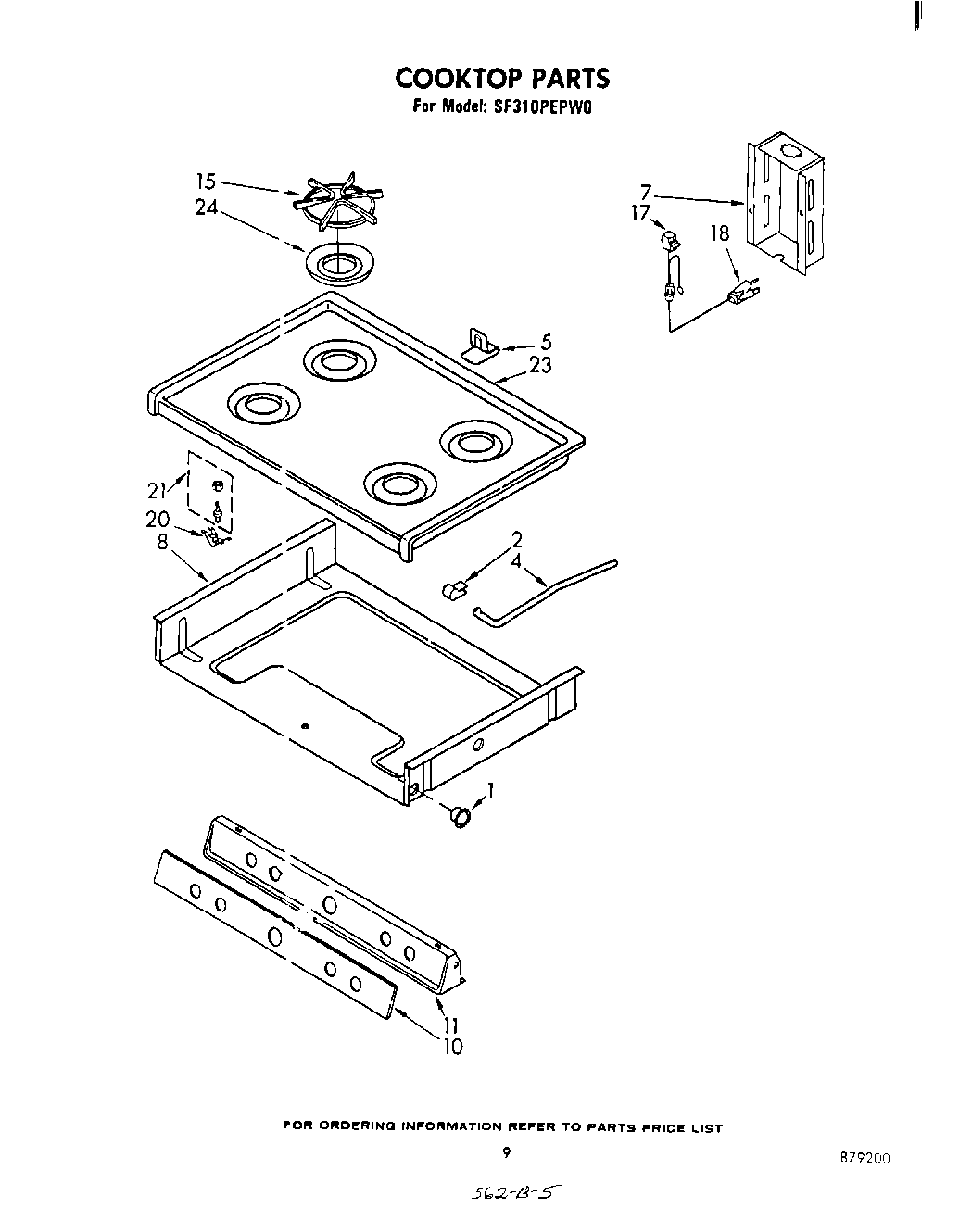

Position	Product
1	Bushing, Snap
2	Clamp, Top Stop
4	Stop, Cook Top
5	Spacer, Main Top
7	Cover, Wire
8	Bottom, Burner Box
10	Inlay, Manifold Panel
11	Panel, Manifold (Almond)
11	Panel, Manifold (White)
11	Panel, Manifold (Toast)
11	Panel, Manifold (Toast)
15	Grate, Burner (4)
17	Block, Disconnect Socket
18	Cord, Extension
20	Catch, Main Top (2)
21	Strike, Main Top (2)
23	Top, Main (White)
23	Top, Main (Brushed Chrome)
23	Top, Main (Almond)
23	Top, Main (Toast)
23	Top, Main (Platinum)
24	Bowl, Drip (4
