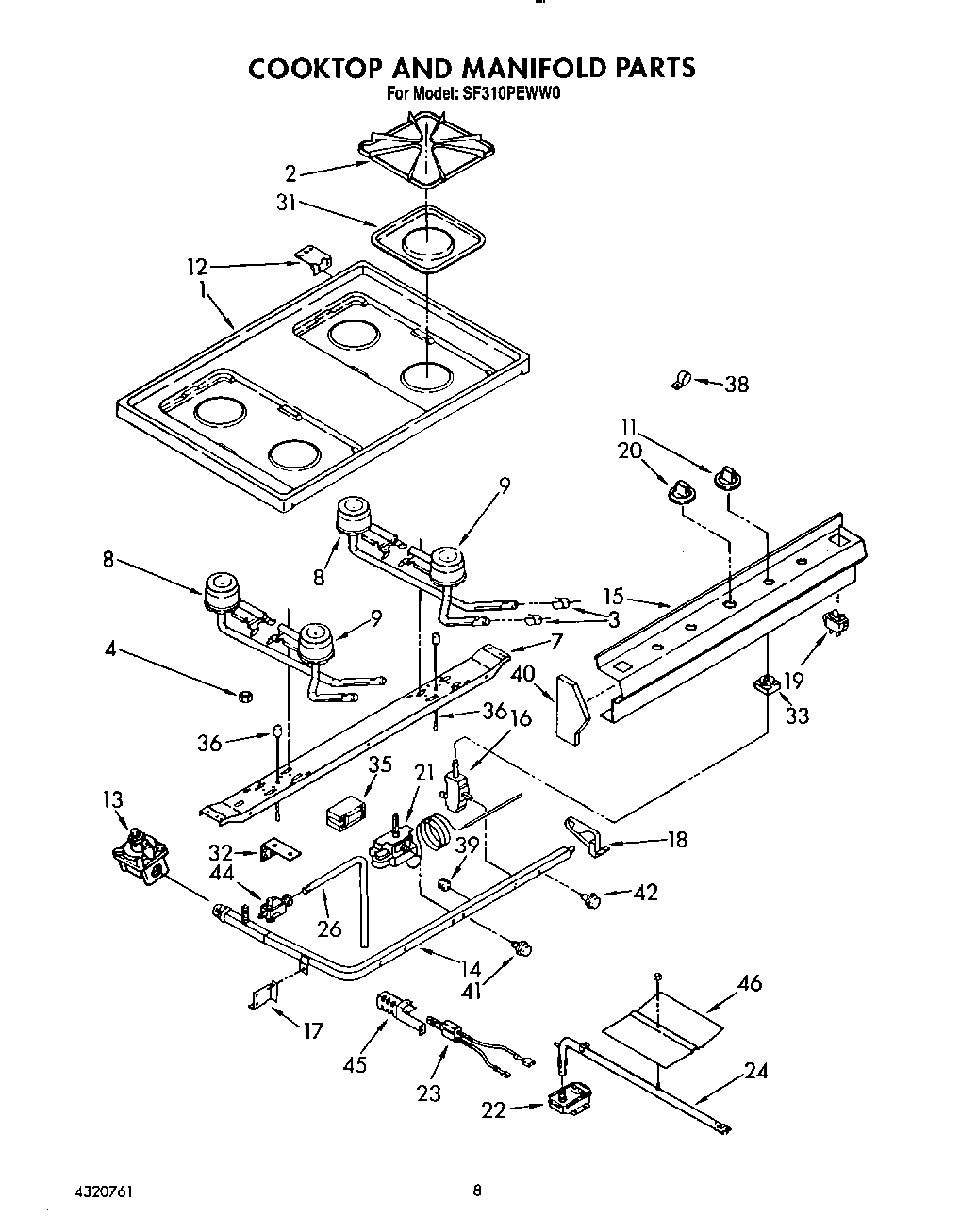

SF310PEWW0 06 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	Guide, Cooking
	WPL LIT786735
	List, Repair Parts
	Guide
1	Cooktop (White)
1	Cooktop (Almond)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
7	Wire, Tie
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
11	WP4320580 Whirlpool Knob Assembly
12	Bracket, Support (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
19	Switch, Oven Light
20	Knob, Thermostat
21	Thermostat
22	Valve, Safety
22	Screw, 10-12 X 1/2 (6)
23	Screw, 10-12 X 3/8 (2)
23	Pilot
24	Burner, Oven
26	Burner, Oven
31	WPY0060872 Whirlpool Drip Pan
32	Plate, Spark Module
33	WP4157180 Whirlpool Surface Burner Ignition Switch
35	Module, Spark
36	Ignitor (L.H.)
36	Ignitor (R.H.)
38	Strain Relief
39	W10295523 Whirlpool Plug
40	Endcap (L.H.)
40	Endcap (R.H.)
41	Bolt, Thermostat Mounting (2)
42	Bolt, Valve Mounting
44	Valve, Shut Off
45	Bracket, Ignitor
46	Spreader, Flame
46	W10080180 Whirlpool Nut
