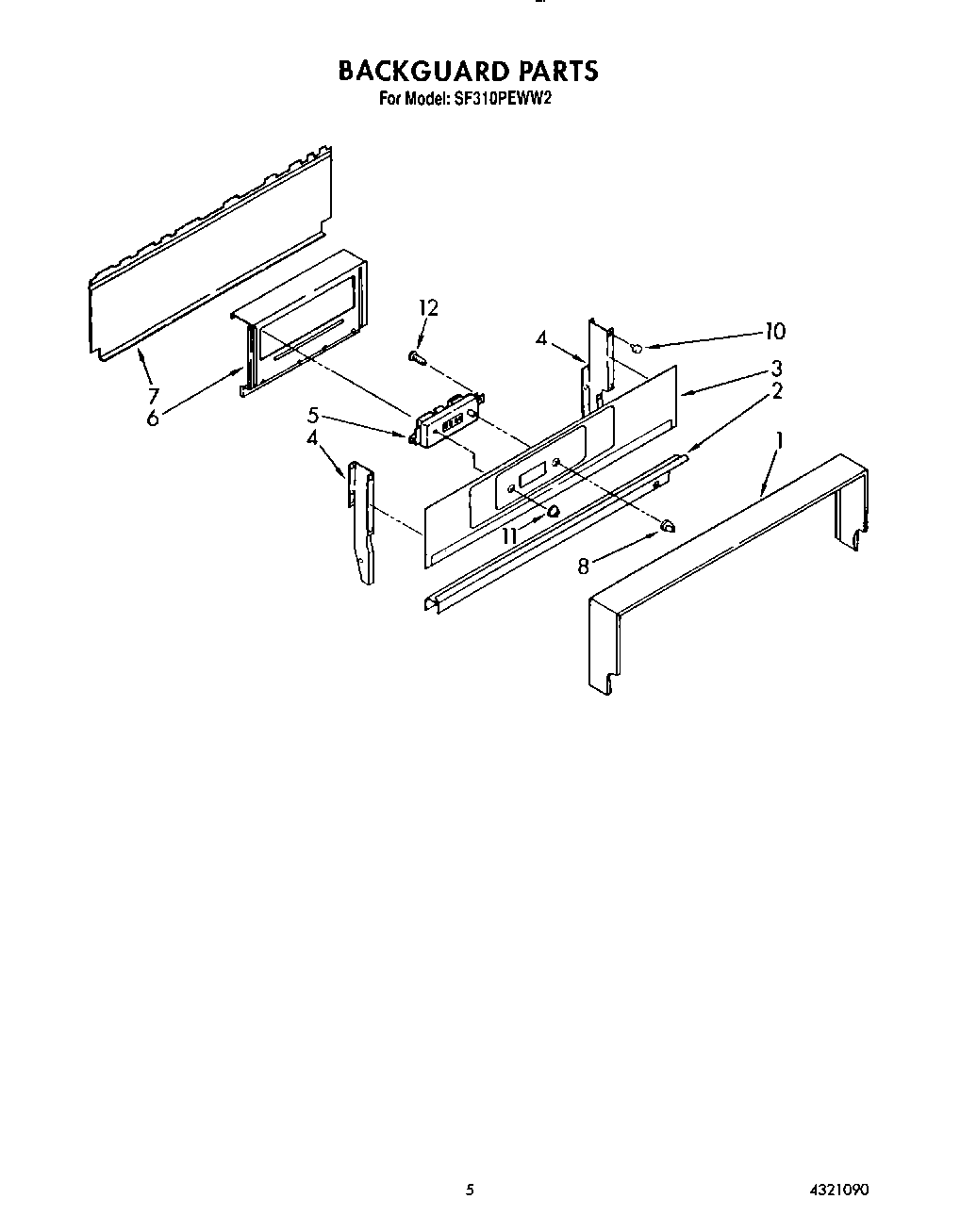

SF310PEWW2 04 – BACKGUARDadmin2025-04-26T11:22:05+00:00SF310PEWW2 04 – BACKGUARD
Products
| Position | Product |
|---|
| 1 | Frame |
| 2 | Bottom, Backguard |
| 2 | Screw, 10-12 x 1/2 (4) |
| 3 | Glass |
| 4 | Support, Backguard (Left Hand) |
| 4 | Support, Backguard (Right Hand) |
| 4 | Screw, 10-32 X 1/2 (1) |
| 5 | Clock |
| 6 | Bracket, Clock |
| 7 | Panel, Rear |
| 7 | Screw, 10-12 X 3/8 (2) |
| 8 | Knob, Clock |
| 10 | Bumper, Rubber (6) |
| 11 | Set Button (1) |
| 12 | Screw, Timmer (2) |
