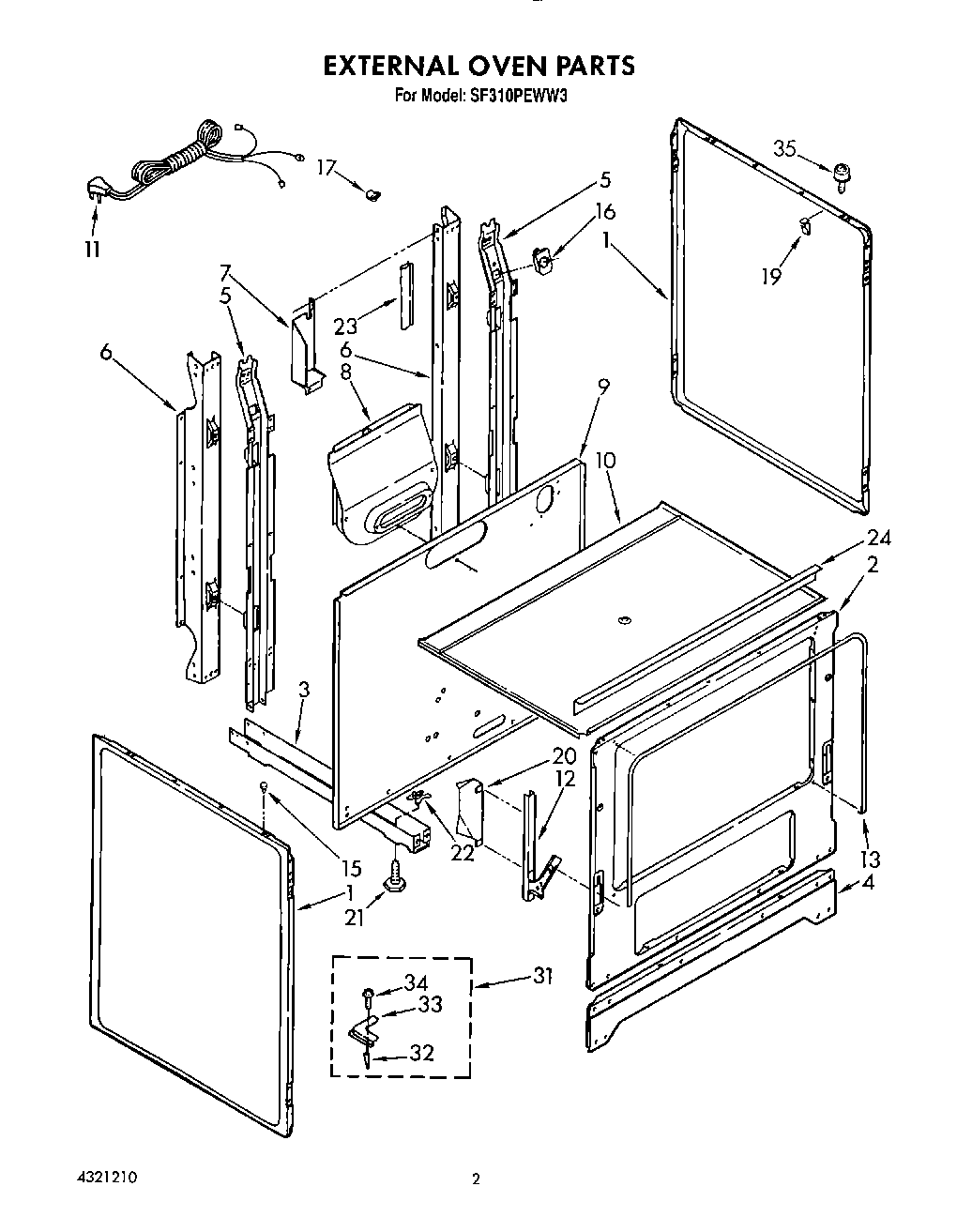

SF310PEWW3 02 – EXTERNAL OVEN
Written by
in
SF310PEWW3 02 – EXTERNAL OVEN
Products
Position
Product
1
Panel, Side (2) (White)
1
Panel, Side (2) (Almond)
2
Frame, Front
3
Rail, Base (2)
4
Ignitor (Screw, 8 X 1/2 (4))
4
Base, Front
5
Support, Main (2)
5
Screw, 10-32 X 1/2 (1)
6
Support, Rear (2)
7
Cover, Wire
7
Screw, 10-12 X 3/8 (2)
8
Flue, Box
8
SCREW
9
Panel, Rear
10
WP308685 Whirlpool Microwave Screw
10
Burner Box
11
WP9757891 Whirlpool Power Cord
12
Screw, 10-24 X 3/8 (2)
12
Hinge, Door (2)
13
Seal, Door (2)
16
Bracket, Receptable
17
Strain Relief
19
Wire, Tie
20
Shield, Insulation
21
Leg, Leveler (4)
22
Nut (4)
23
Safe Edge
24
Extension Burner Box
31
Anti Tip Kit
32
Anchor (2)
33
Bracket
34
W11693756 Whirlpool Screw Assembly
35
Stud Screw (2)
35
Locator stud (2)
←
