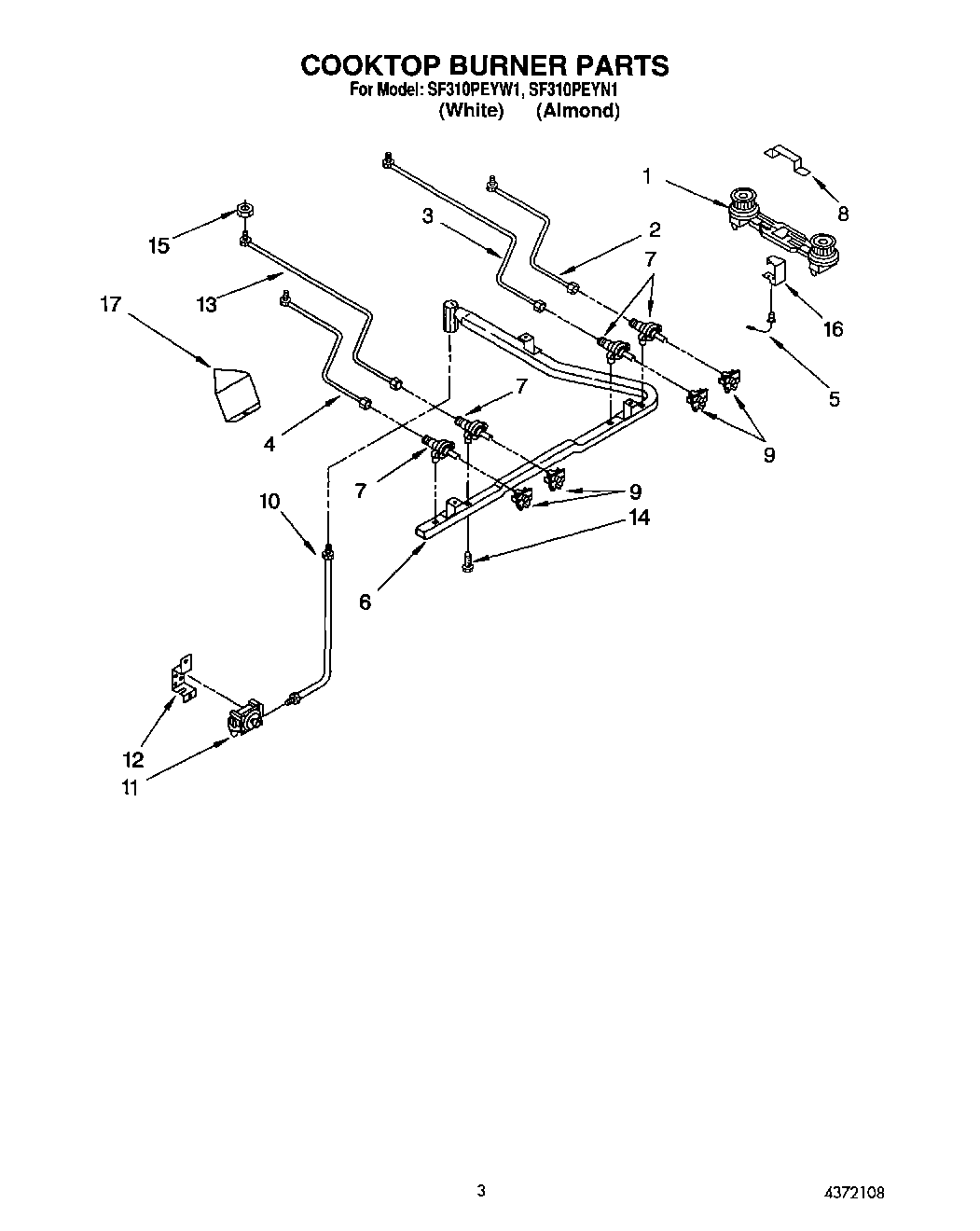

SF310PEYN1 02 – COOKTOP AND BURNER

Written by

Products

Position	Product
1	Burner, Double
2	Tubing, Burner (RF)
3	Tubing, Burner (RR)
4	Tubing, Burner (LF)
5	Ignitor, Top Burner
6	Pipe, Manifold
7	Valve, Top Burner (4)
8	Bracket, Burner Mounting
9	Switch, Ignitor (4)
10	Tubing, Regulator To Manifold Pipe
11	Control, Regulator
12	Bracket, Regulator
13	Tubing, Burner (LR)
14	WP3186217 Whirlpool Screw
15	Nut, Special (4)
16	Retainer, Ignitor
17	Shield, Ignitor
