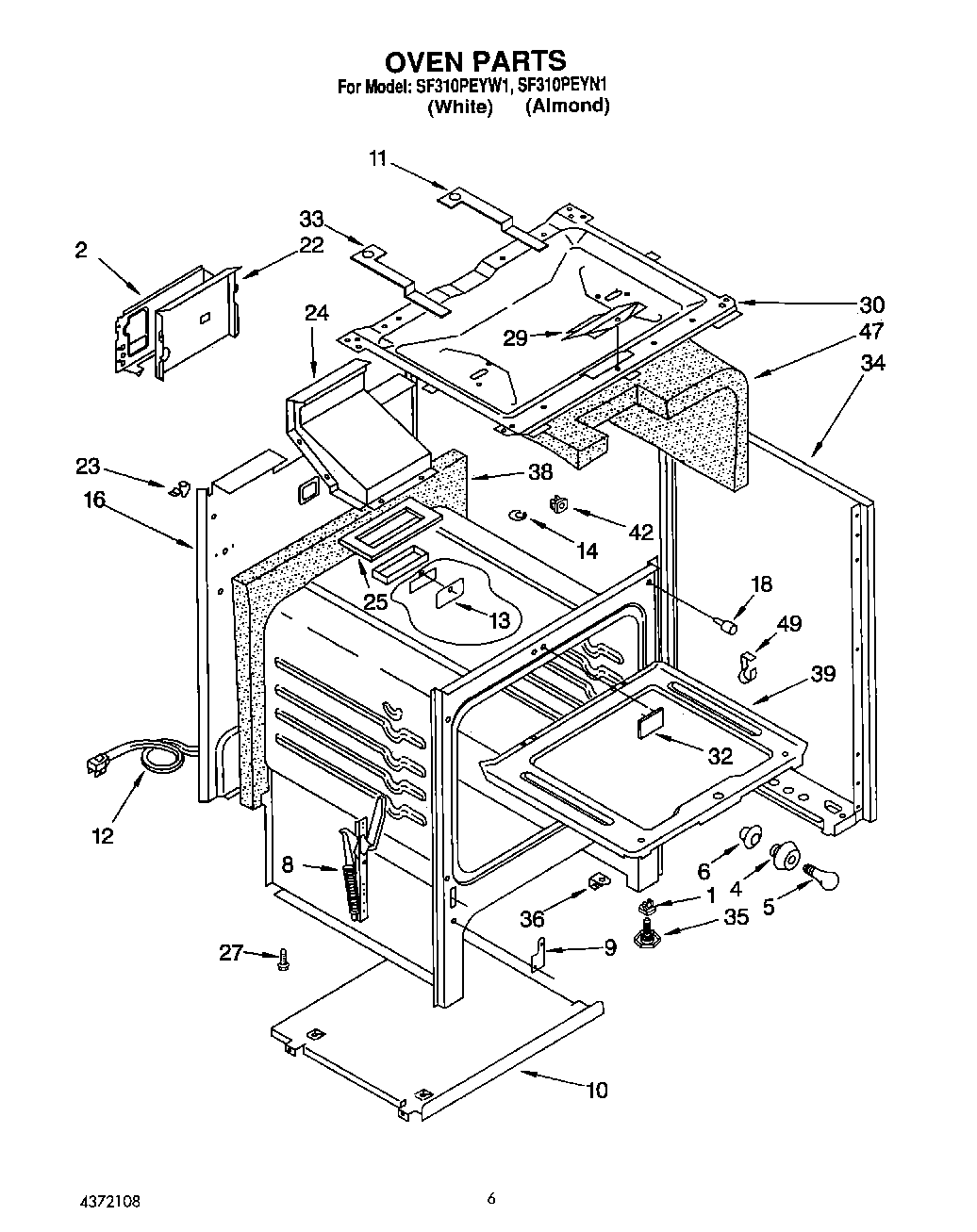

| 1 | Fastener, T Nut (4) |
| 2 | Shield, Rear Wall |
| 4 | Housing, Oven Light |
| 5 | RANGE ONLY 40W 120V APPL BULB |
| 6 | W10856866 Whirlpool Light Socket |
| 8 | Hinge, Oven Door |
| 9 | Cover, Hinge |
| 10 | Base, Broiler |
| 11 | Bracket, Top RH |
| 12 | Cord, Power |
| 13 | Plate, Cover |
| 14 | Fastener, U Type |
| 16 | Back, Main |
| 18 | Bumper, Front (4) |
| 22 | Shield, Flue |
| 23 | Clip, Wire |
| 24 | Flue Box |
| 25 | Gasket, Flue |
| 27 | Screw, Oven Bottom |
| 29 | Plate, Cover |
| 30 | Burner Box |
| 32 | Cover, Front |
| 33 | Bracket, Top LH |
| 34 | Panel, Side (Almond RH) |
| 34 | Panel, Side (Almond LH) |
| 34 | Panel, Side (White RH) |
| 34 | Panel, Side (White LH) |
| 35 | Screw, Leveler (4) |
| 36 | Support, Oven Bottom |
| 38 | Insulation, Back |
| 39 | Bottom, Oven |
| 42 | Spacer, Body (8) |
| 47 | WPW10208653 Whirlpool Insulation |
| 49 | Clip, Thermo Bulb |
