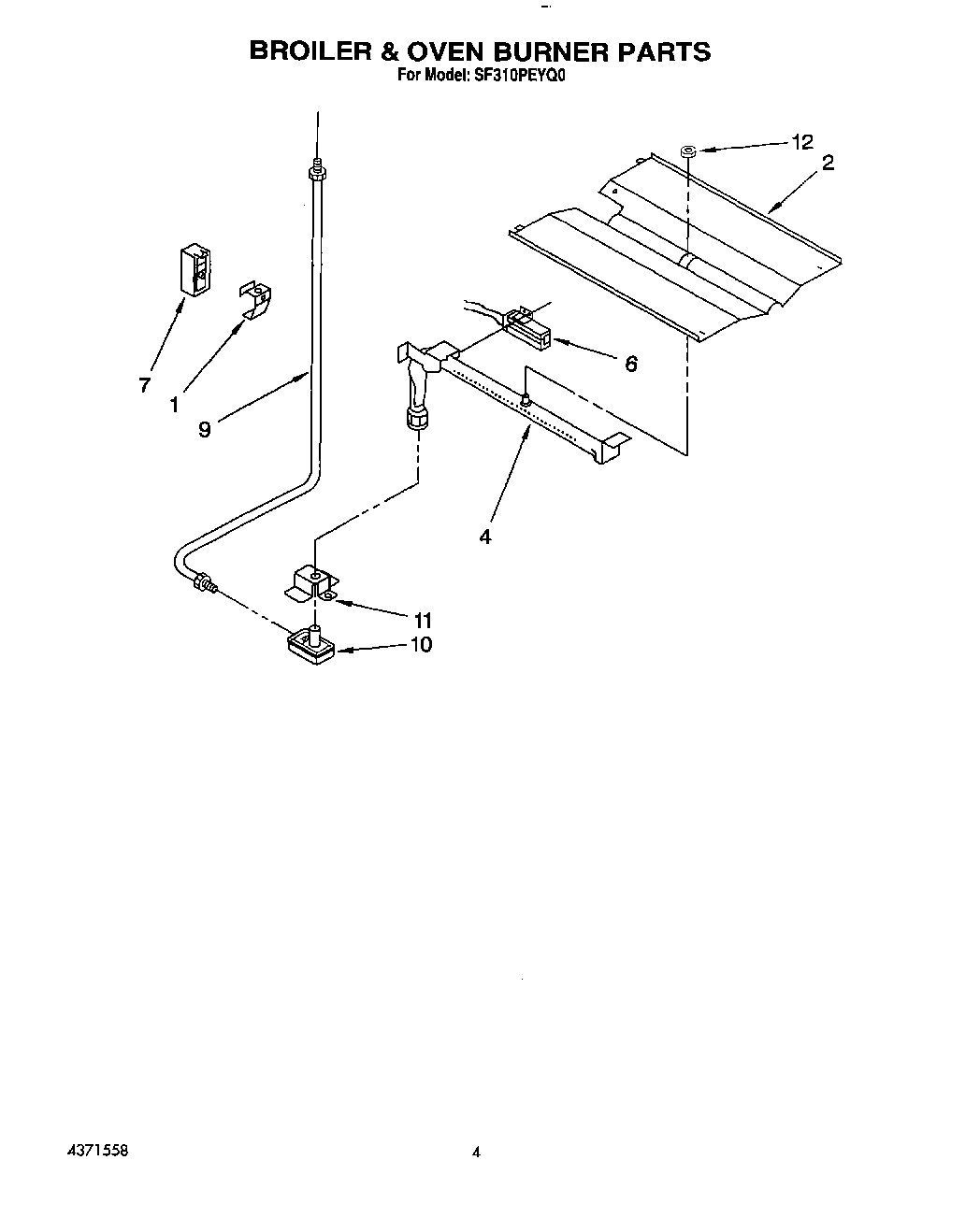

SF310PEYQ0 04 – BROILER & OVEN BURNER

SF310PEYQ0 04 – BROILER & OVEN BURNER

Written by

in

SF310PEYQ0 04 – BROILER & OVEN BURNER

Products

Position	Product
1	Bracket, Burner
2	Baffle, Oven Burner
4	Burner, Oven
6	814269 Whirlpool Oven Flat Igniter
7	Module, Spark
9	Tubing, Valve
10	Valve, Safety
11	Bracket, Valve
12	Nut, Hex (2)
