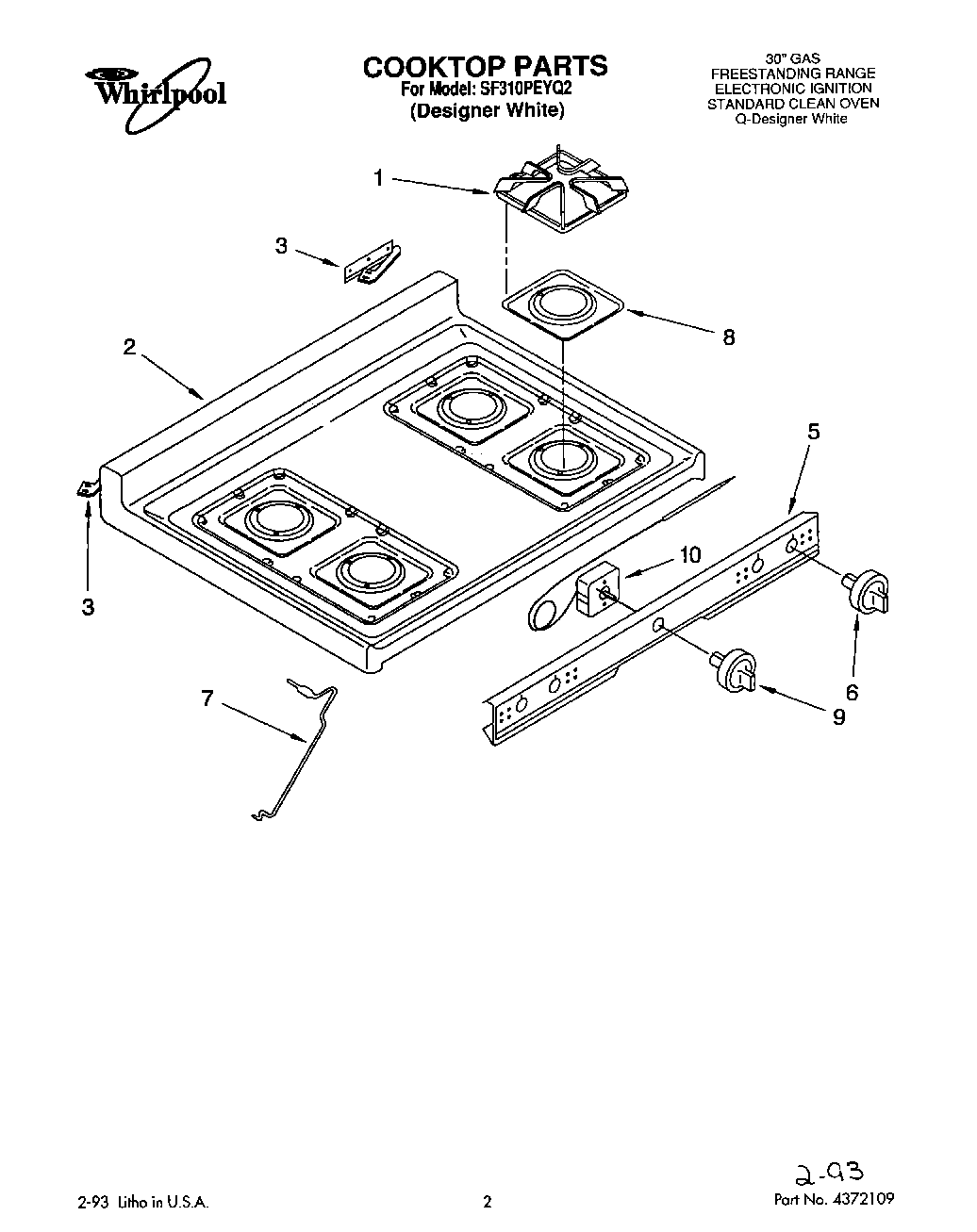

SF310PEYQ2 01 – COOKTOP

Products

Position	Product
1	Grate, Burner
2	Top, Main
3	Bracket, Hinge (Left Side)
3	Bracket, Hinge (Right Side)
5	Panel, Manifold
6	Knob, Burner (4)
7	Rod, Support Top
8	Pan, Burner
9	Knob, Thermostat
10	Thermostat, Oven
