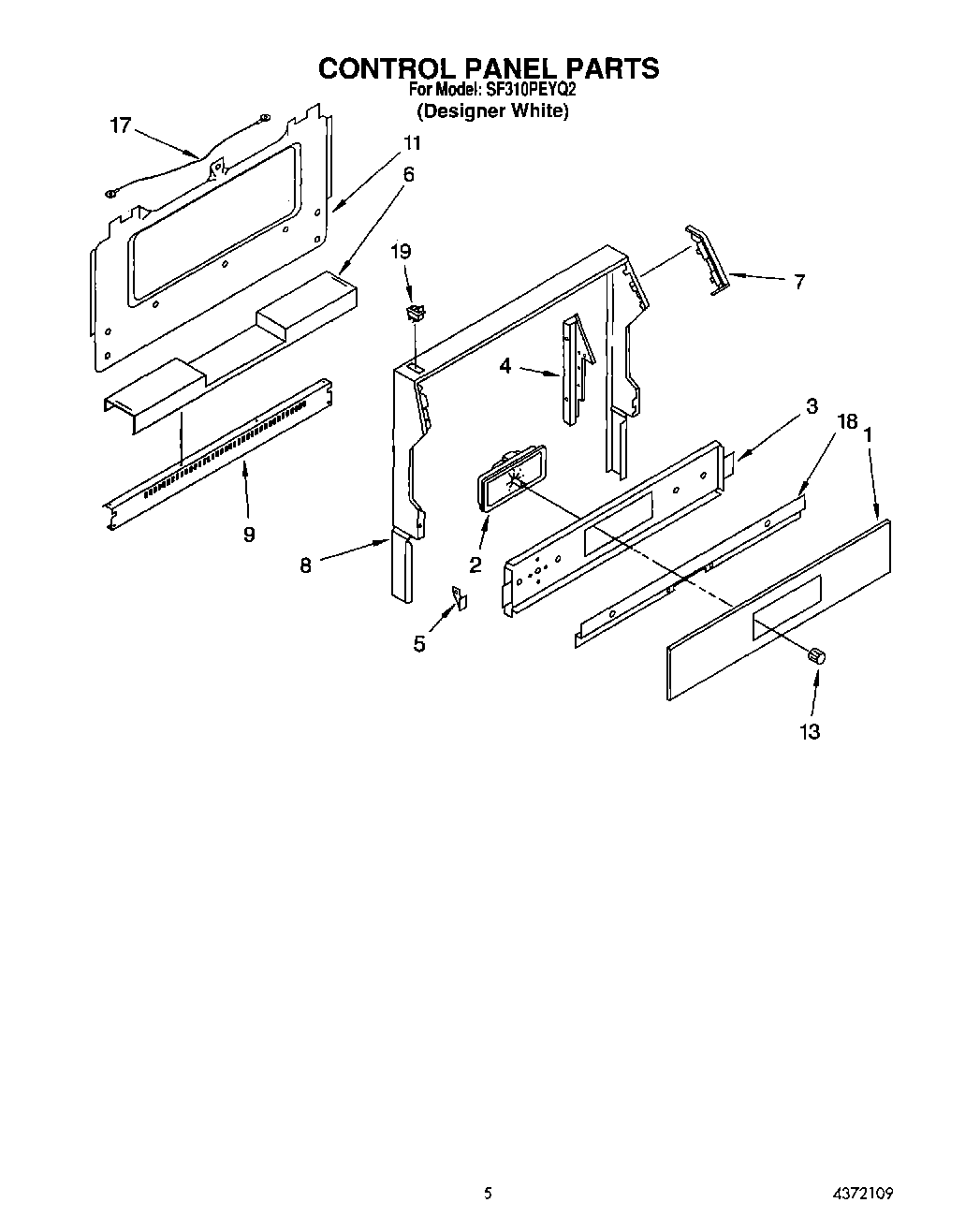

SF310PEYQ2 04 – CONTROL PANEL

Products

Position	Product
1	Panel, Control
2	Clock
3	Bracket, Timer
4	Support, Control Panel (L.H.)
4	Support, Control Panel (R.H.)
5	Cap, Filler
6	Deflector, Flue
7	Cap, End (R.H.)
7	Cap, End (L.H.)
8	Trim, Wrapper
9	Trim, Vent
11	Shield, Rear Wall
13	Knob, Clock
17	Cable, Anti-Tip
18	Retainer, Timer
19	WP4314961 Whirlpool Lite Switch
