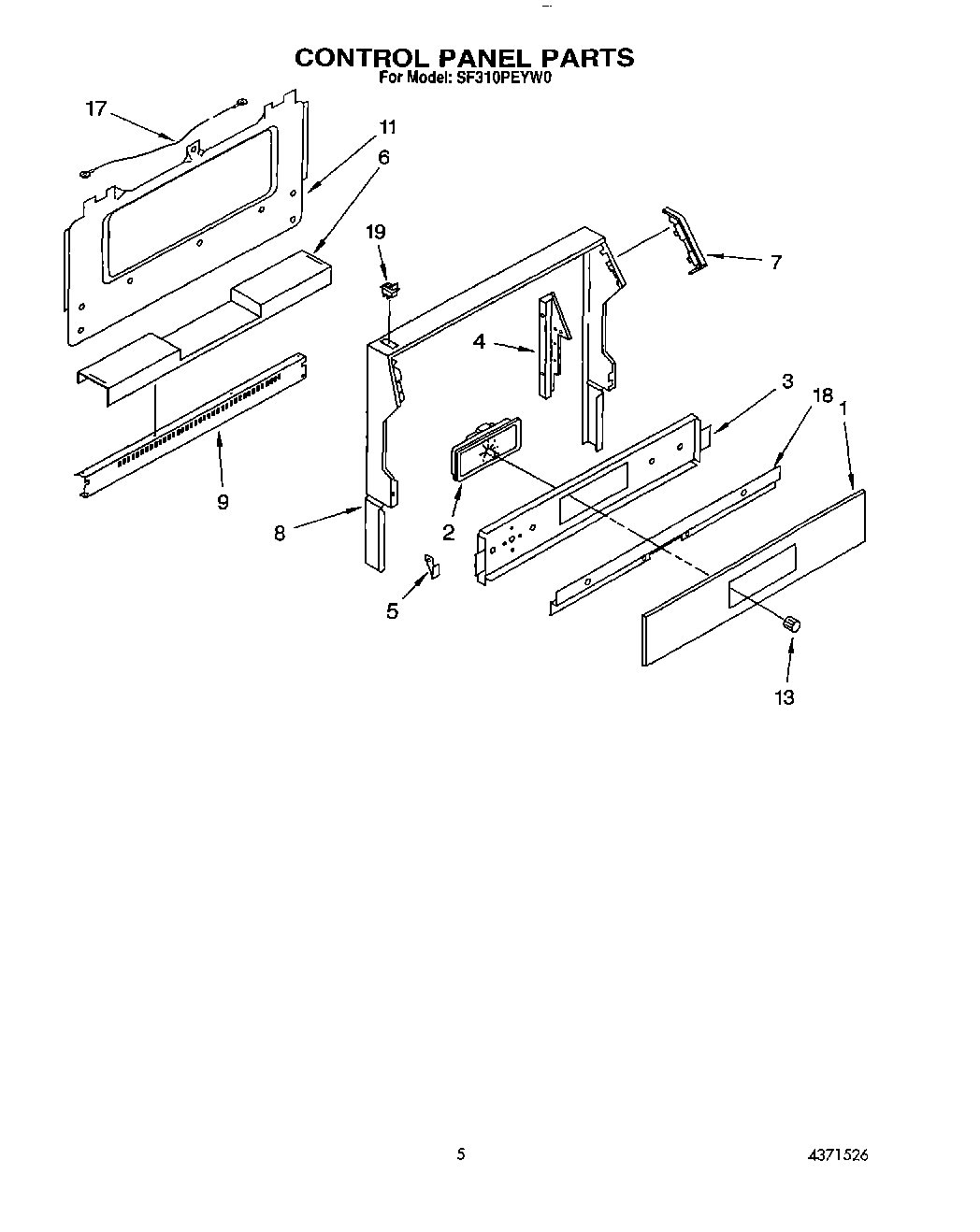

SF310PEYW0 05 – CONTROL PANEL

Products

PositionProduct
1Panel, Control
2Clock
3Bracket, Timer
4Support, Control Panel (L.H.)
4Support, Control Panel (R.H.)
5Cap, Filler
6Deflector, Flue
7Cap, End (R.H.)
7Cap, End (L.H.)
8Trim, Wrapper
9Trim, Vent
11Shield, Rear Wall
13Knob, Clock
17Cable, Anti-Tip
18Retainer, Timer
19WP4314961 Whirlpool Lite Switch
