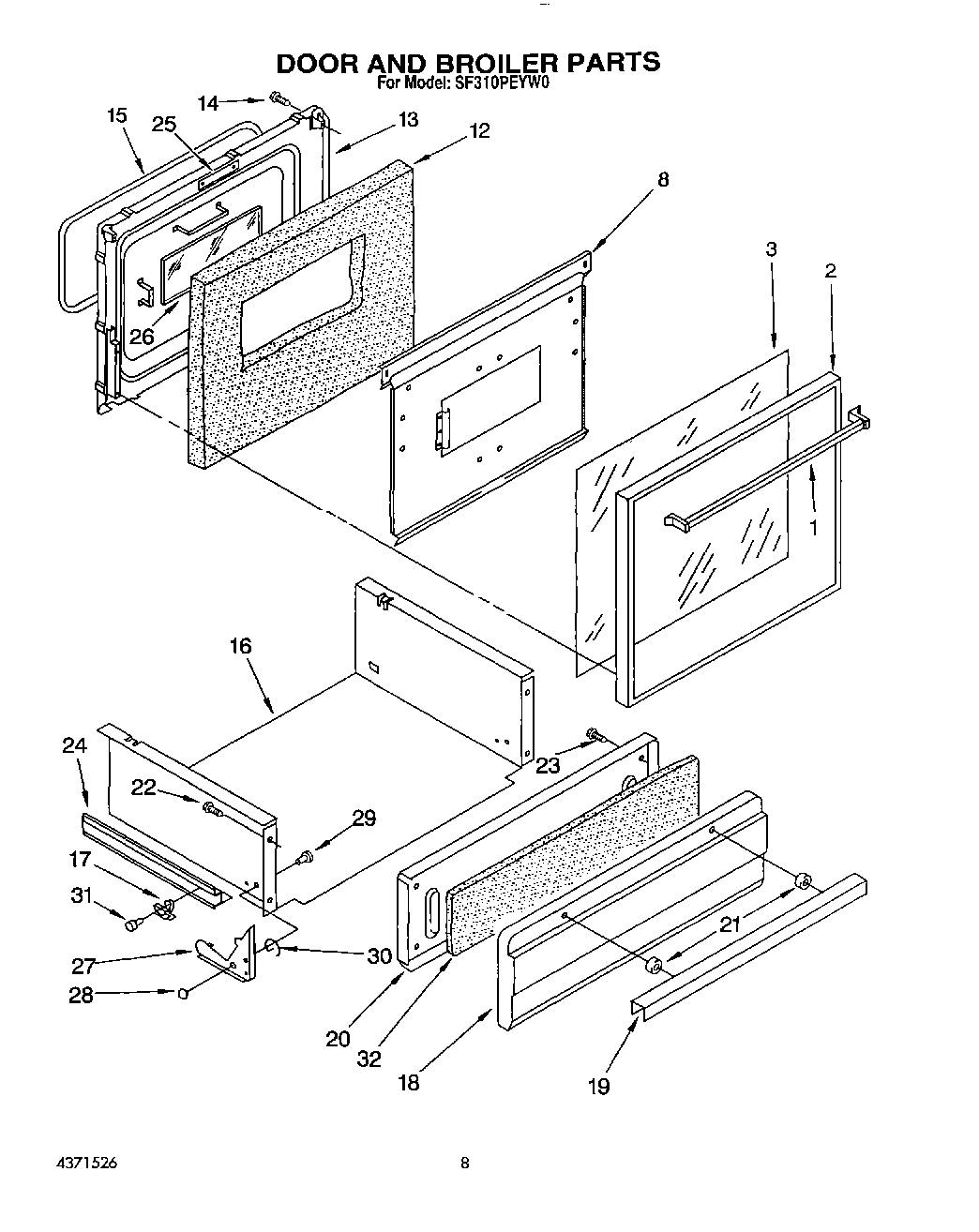

SF310PEYW0 08 – DOOR AND BROILER

Products

Position	Product
1	Handle, Door
2	Trim, Door
3	Glass, Door
8	Shield, Heat
12	Insulation
13	Liner, Oven Door
14	Screw, Handle
15	Seal, Door
16	Body, Broiler
17	Glide, Drawer (6)
18	Panel, Drawer
19	Handle, Utility Drawer
20	Liner, Broiler Door
21	Spacer, Handle
22	Screw, Panel (4)
23	Screw, Handle (2)
24	Channel, Broiler
25	Cover, Door
26	Glass, Inner
27	Bracket, Hinge (R.H.)
27	Bracket, Hinge (L.H.)
28	Fastener, Push Nut
29	Pin, Hinge (2)
30	Spring, Broiler (R.H.)
30	Spring, Broiler (L.H.)
31	Button, Glide (2)
32	Insulation
