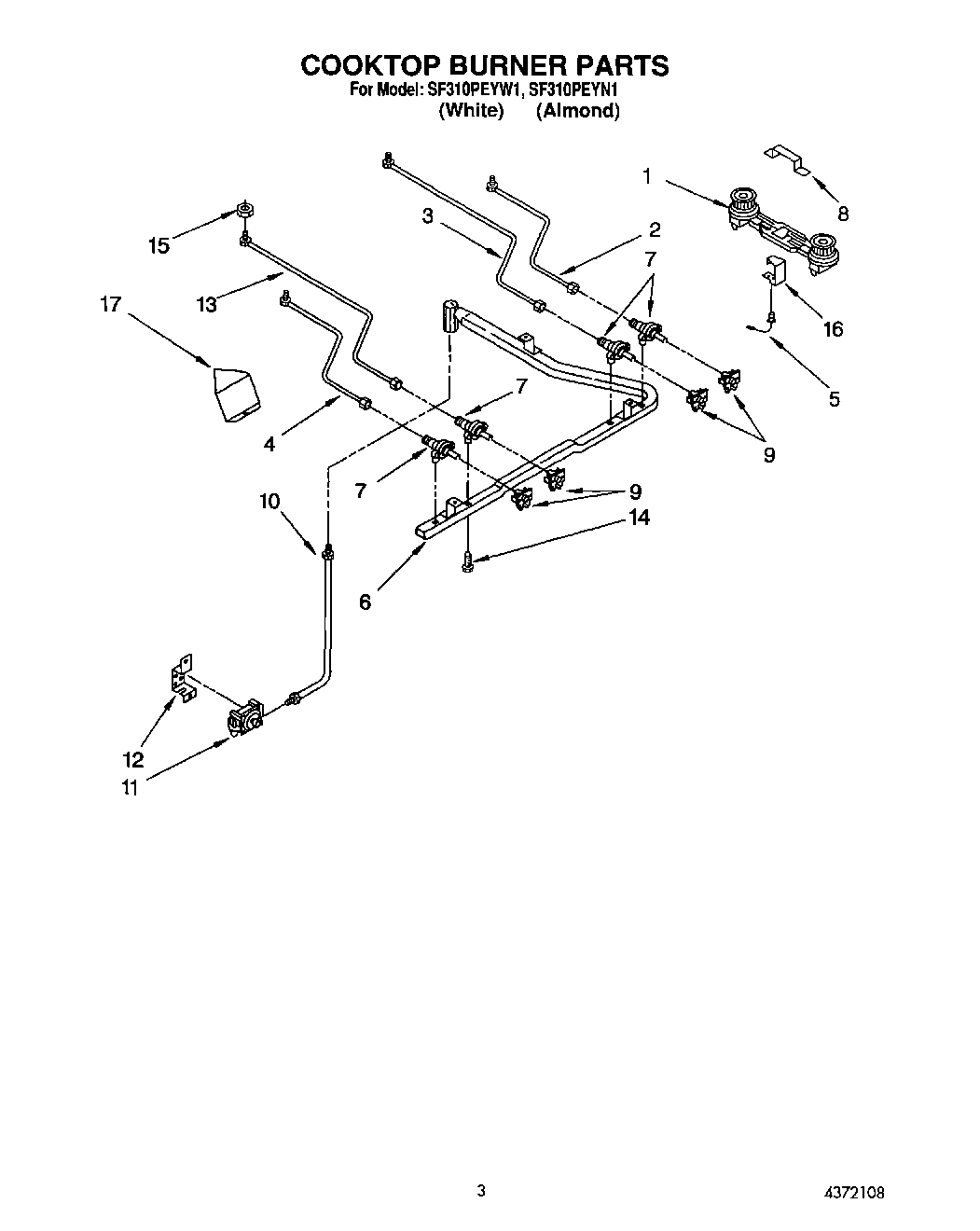

SF310PEYW1 02 – COOKTOP AND BURNER

Products

PositionProduct
1Burner, Double
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Ignitor, Top Burner
6Pipe, Manifold
7Valve, Top Burner (4)
8Bracket, Burner Mounting
9Switch, Ignitor (4)
10Tubing, Regulator To Manifold Pipe
11Control, Regulator
12Bracket, Regulator
13Tubing, Burner (LR)
14WP3186217 Whirlpool Screw
15Nut, Special (4)
16Retainer, Ignitor
17Shield, Ignitor
