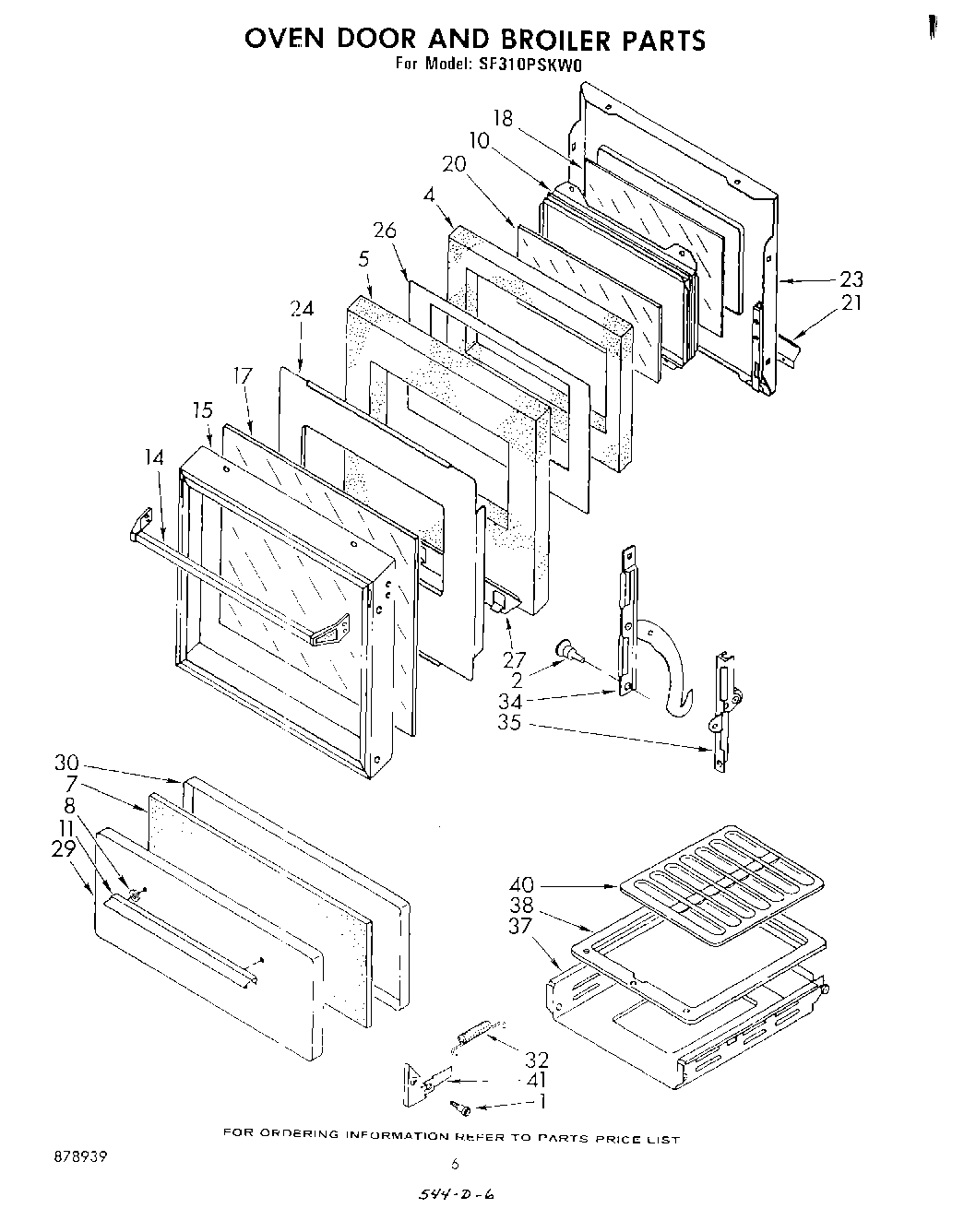

SF310PSKW0 04 – OVEN DOOR AND BROILER

Products

Position	Product
1	Bolt, Shoulder 10-24 x 7/16
2	Bolt, Shoulder 10-24 x 7/16 (2)
4	Insulation, Oven Door
5	WPW10208653 Whirlpool Insulation
7	Insulation, Broiler Door
8	Spacer, Oven Door Handle (2)
10	Frame, Window
11	Handle, Broiler Door
14	Handle, Door
15	Frame, Door
17	Glass, Oven Door Outside
18	Glass, Oven Door Inside
20	Glass, Oven Door Center
21	Strip, Door Seal
23	Lining, Oven Door
24	Baffle, Door
26	Shield, Heat
27	Retainer, Insulation
29	Panel, Broiler Door (White)
29	Panel, Broiler Door (Harvest Gold)
29	Panel, Broiler Door (Coffee)
29	Panel, Broiler Door (Black)
29	Panel, Broiler Door (Almond)
29	Panel, Broiler Door (Toast)
29	Panel, Broiler Door (Platinum)
30	Lining, Broiler Door
32	Spring, Broiler Door (2)
34	Hinge, Oven Door (2)
35	Support, Oven Door (Left Side)
35	Support, Oven Door (Right Side)
37	Drawer, Broiler
38	Pan, Broiler
40	Tray, Broiler Pan
41	Hinge, Broiler Door (Left Side)
41	Hinge, Broiler Door (Right Side)
