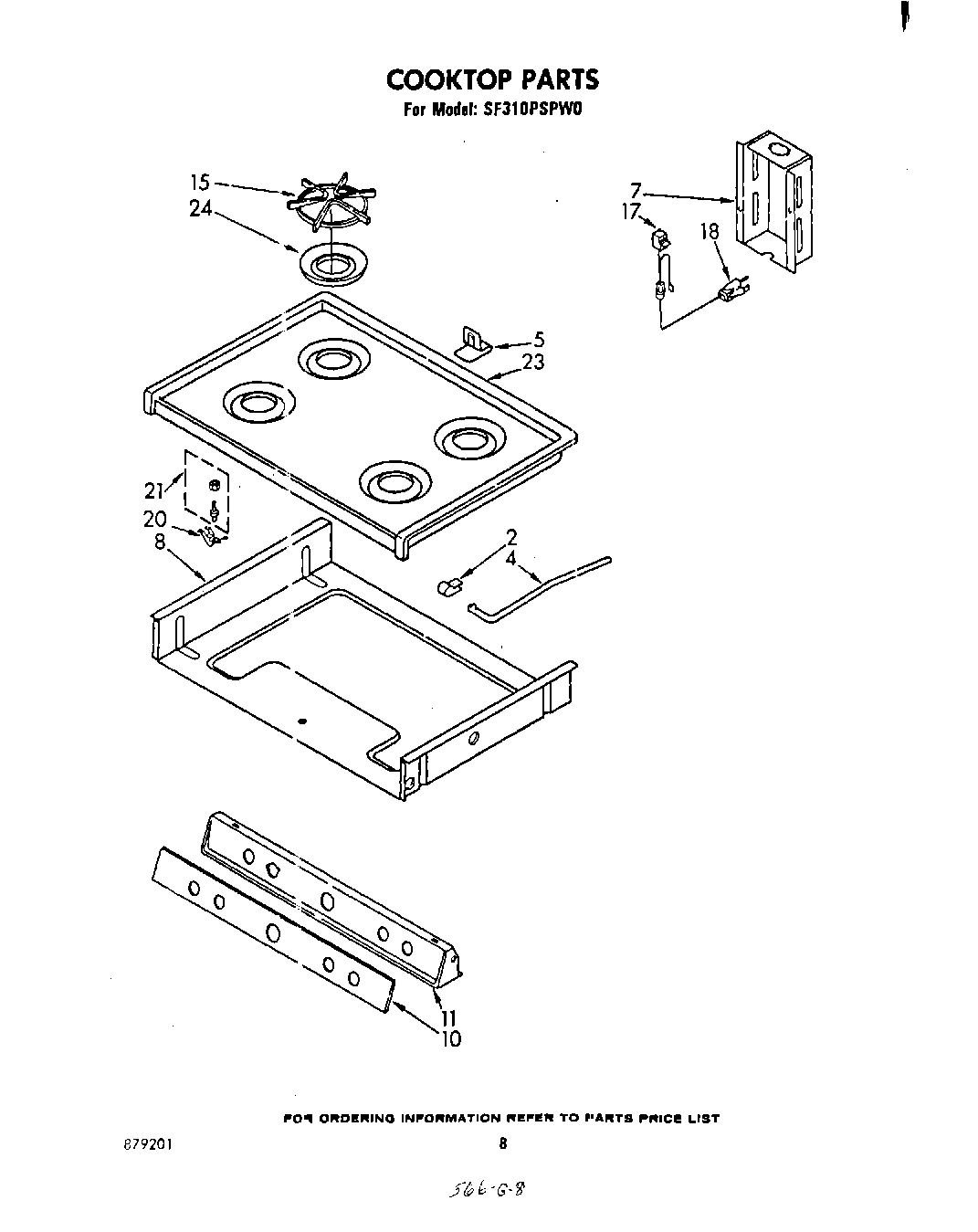

SF310PSPW0 06 – COOK TOP

Products

PositionProduct
2Clamp, Top Stop
4Stop, Cook Top
5Spacer, Main Top
7Cover, Wire
8Bottom, Burner Box
10Inlay, Manifold Panel
11Panel, Manifold (White)
11Panel, Manifold (Almond)
11Panel, Manifold (Toast)
11Panel, Manifold (Toast)
15Grate, Burner (4)
17Block, Disconnect Socket
18Cord, Extension
20Catch, Main Top (2)
21Strike, Main Top (2)
23Top, Main (White)
23Top, Main (Brushed Chrome)
23Top, Main (Almond)
23Top, Main (Toast)
23Top, Main (Platinum)
24Bowl, Drip (4
