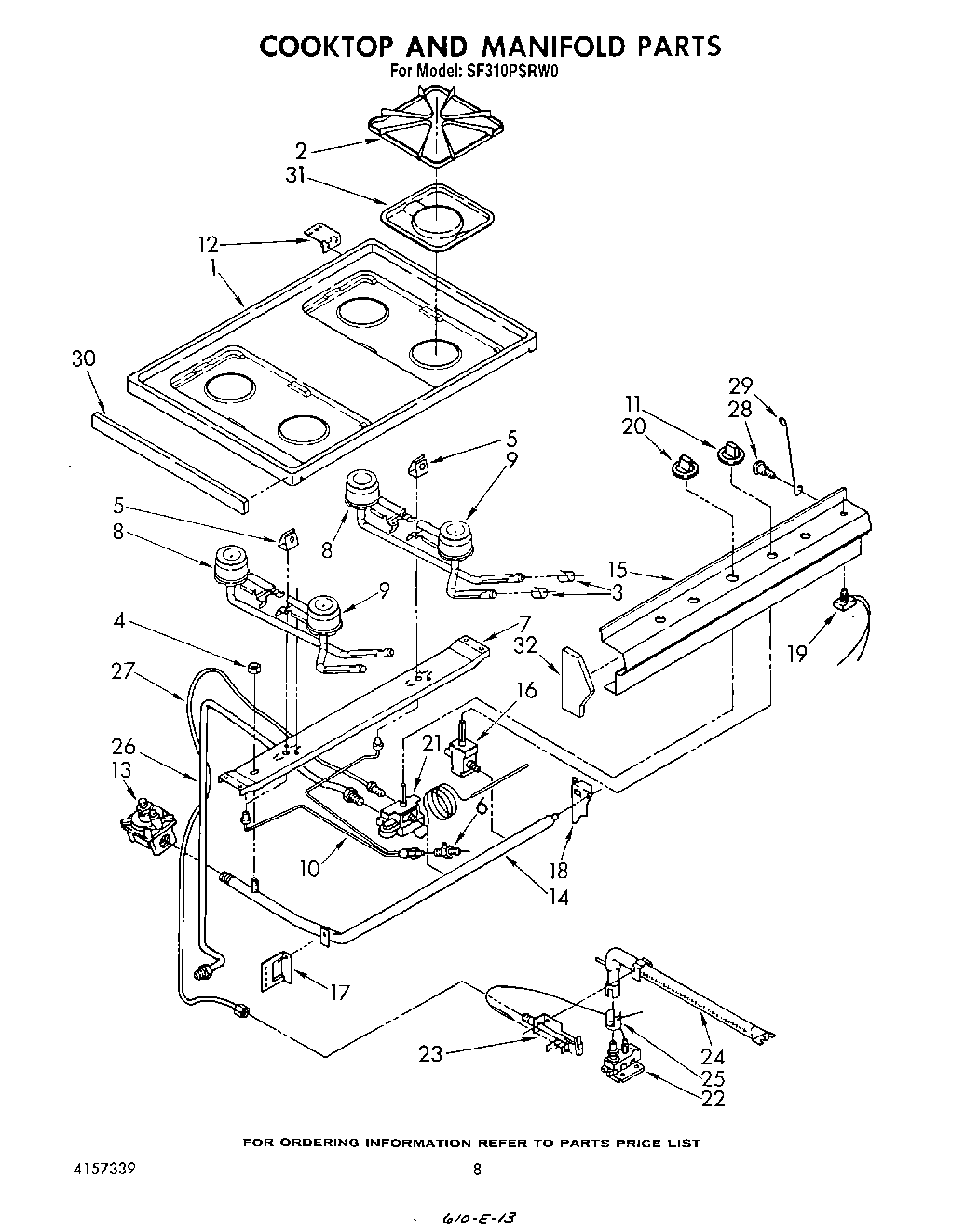

SF310PSRW0 06 – COOKTOP AND MANIFOLD , LITERATURE AND OPTIONAL

Products

Position	Product
	Guide
	Guide, Cooking
	List, Repair Parts
	WPL LIT786735
1	Cooktop (White)
1	Cooktop (Toast)
1	Cooktop (Almond)
1	Cooktop (Platinum)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
5	Cover, Pilot (2)
6	Filter, Pilot
7	Support, Burner
8	Burner, Rear (2)
9	Screw, 10-12 X 3/8 (2)
9	Burner, Front (2)
10	Tubing, Pilot (Incl. No. 6)
11	WP4179282 Whirlpool Knob
12	Speed Clip (4)
12	Hinge, Maintop (2)
12	SCREW
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4)
17	Support, Manifold (L.H.)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
19	Switch, Oven Light (2)
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Screw, 10-24 X 1/4 (1)
23	Pilot
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Screw
29	Rod, Support
30	WPL 4157189
31	WP786333 Whirlpool Drip Bowl
32	Endcap (R.H.)
32	Endcap (L.H.)
32	WPW10208653 Whirlpool Insulation
32	FOIL, ALUMINUM OVEN (18“ X 25 )
