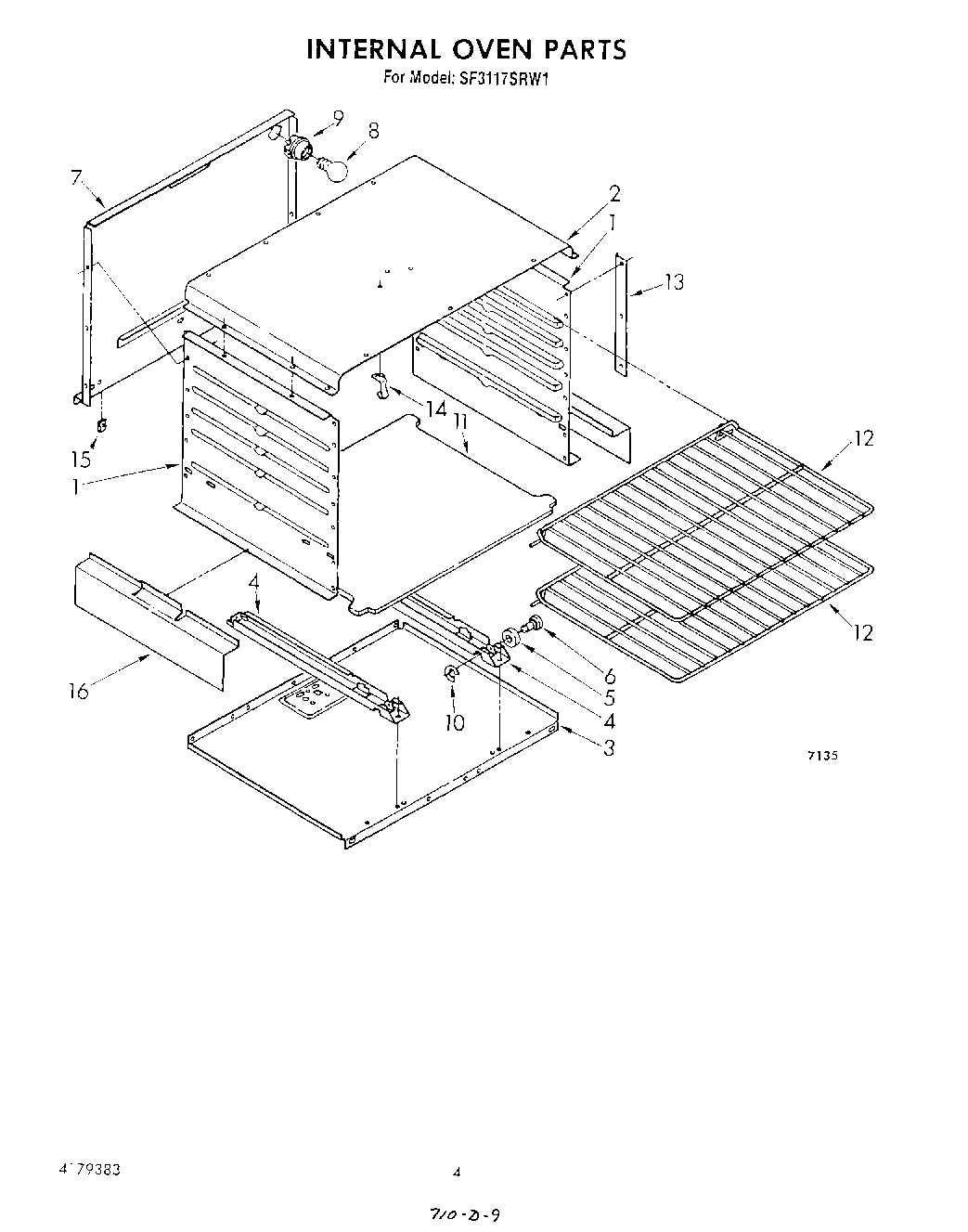

SF3117SRW1 03 – INTERNAL OVEN

SF3117SRW1 03 – INTERNAL OVEN

Written by

in

SF3117SRW1 03 – INTERNAL OVEN

Products

PositionProduct
1Liner, Oven Side (2)
2Liner, Oven Top
3Baffle, Bottom
4Track, Broiler (2)
4WP308685 Whirlpool Microwave Screw
5Roller (2)
6Pin, Roller (2)
7Liner, Oven Back
8RANGE ONLY 40W 120V APPL BULB
9Receptacle, Light
10Retainer, Roller (2)
11Bottom, Oven
12Rack, Oven (1)
13Support, Liner (2)
1498005642 Whirlpool Clip
15Clip, Speed
16Shield, Radiation
