SF3117SRW4 05 – OVEN DOOR AND BROILER

SF3117SRW4 05 – OVEN DOOR AND BROILER

Written by

in

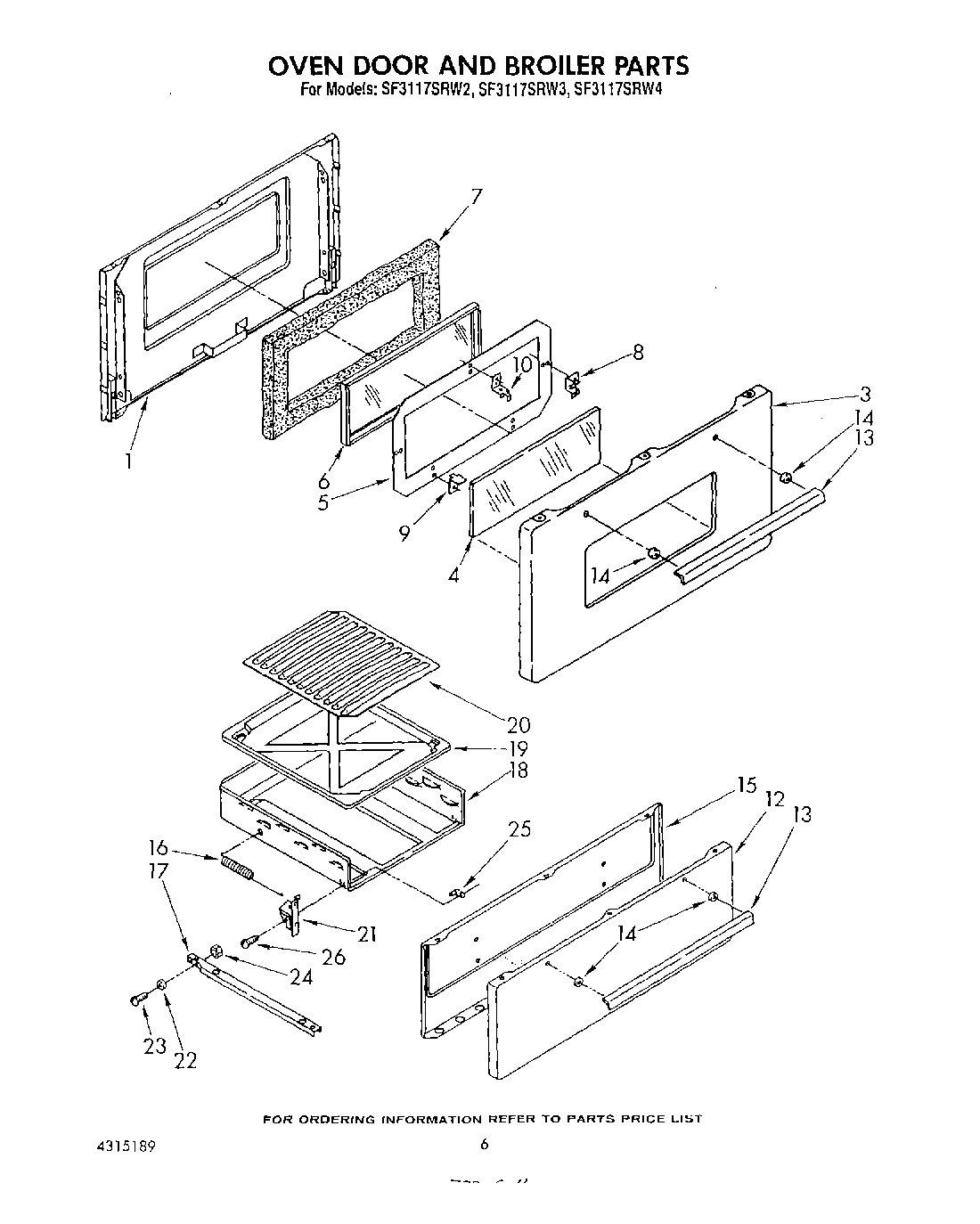

SF3117SRW4 05 – OVEN DOOR AND BROILER

Products

PositionProduct
1Liner, Door
3Panel, Door (Almond)
3Panel, Door (White)
4Glass
5Baffle
5SCREW
6Window
7Insulation
8Clip, Side (2)
9Clip, Bottom (2)
10Clip, Top
12Panel, Broiler (Almond)
12Panel, Broiler (White)
12Panel, Broiler (Almond)
12Panel, Broiler (White)
13Screw, 10-12 X 5/8 (2)
13Handle, Door (2)
13Washer (2)
14Spacer (4)
15Liner, Broiler Door
16Spring (2)
17Track, Upper (2)
18Liner, Broiler
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Grid
21W10080180 Whirlpool Nut
21Hinge, Door (R.H.)
21Hinge, Door (L.H.)
21WP308685 Whirlpool Microwave Screw
22Roller (2)
23Pin, Roller (2)
25Plate (2)
26Screw (2)
