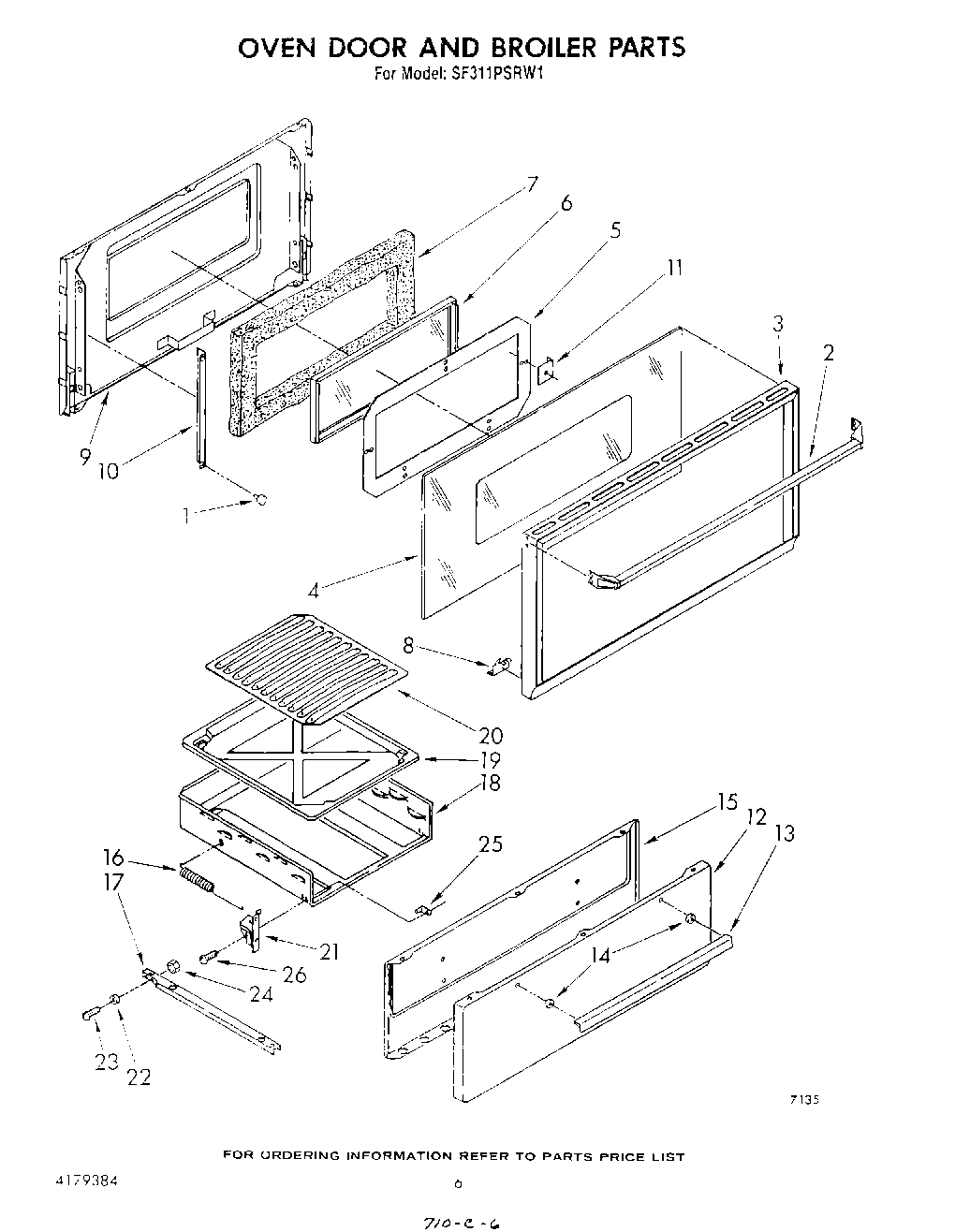

SF311PSRW1 05 – OVEN DOOR AND BROILER

SF311PSRW1 05 – OVEN DOOR AND BROILER

Written by

in

SF311PSRW1 05 – OVEN DOOR AND BROILER

Products

PositionProduct
1Bumper, Rubber (6)
2Screw, 8-18 X 3/8 (4)
2Handle, Door
3Frame, Door
4Glass
5Baffle
6Window Assy
7Insulation
8Support, Glass (Right Hand)
8SCREW
8Support, Glass
8Speed Clip (4)
9Liner, Door
10Support, Glass (2)
11Plate (2)
12Panel, Broiler (Almond)
12Panel, Broiler (White)
13Screw, 10-12 X 5/8 (2)
13Handle, Door (2)
13Washer (2)
14Spacer (4)
15Liner, Broiler Door
16Spring (2)
17Track, Upper (2)
18Liner, Broiler
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Grid
21W10080180 Whirlpool Nut
21Hinge, Door (L.H.)
21WP308685 Whirlpool Microwave Screw
21Hinge, Door (R.H.)
22Roller (2)
23Pin, Roller (2)
24Nut, Hex
25Plate (2)
26Screw (2)
