SF311PSRW2 05 – OVEN DOOR AND BROILER

SF311PSRW2 05 – OVEN DOOR AND BROILER

Written by

in

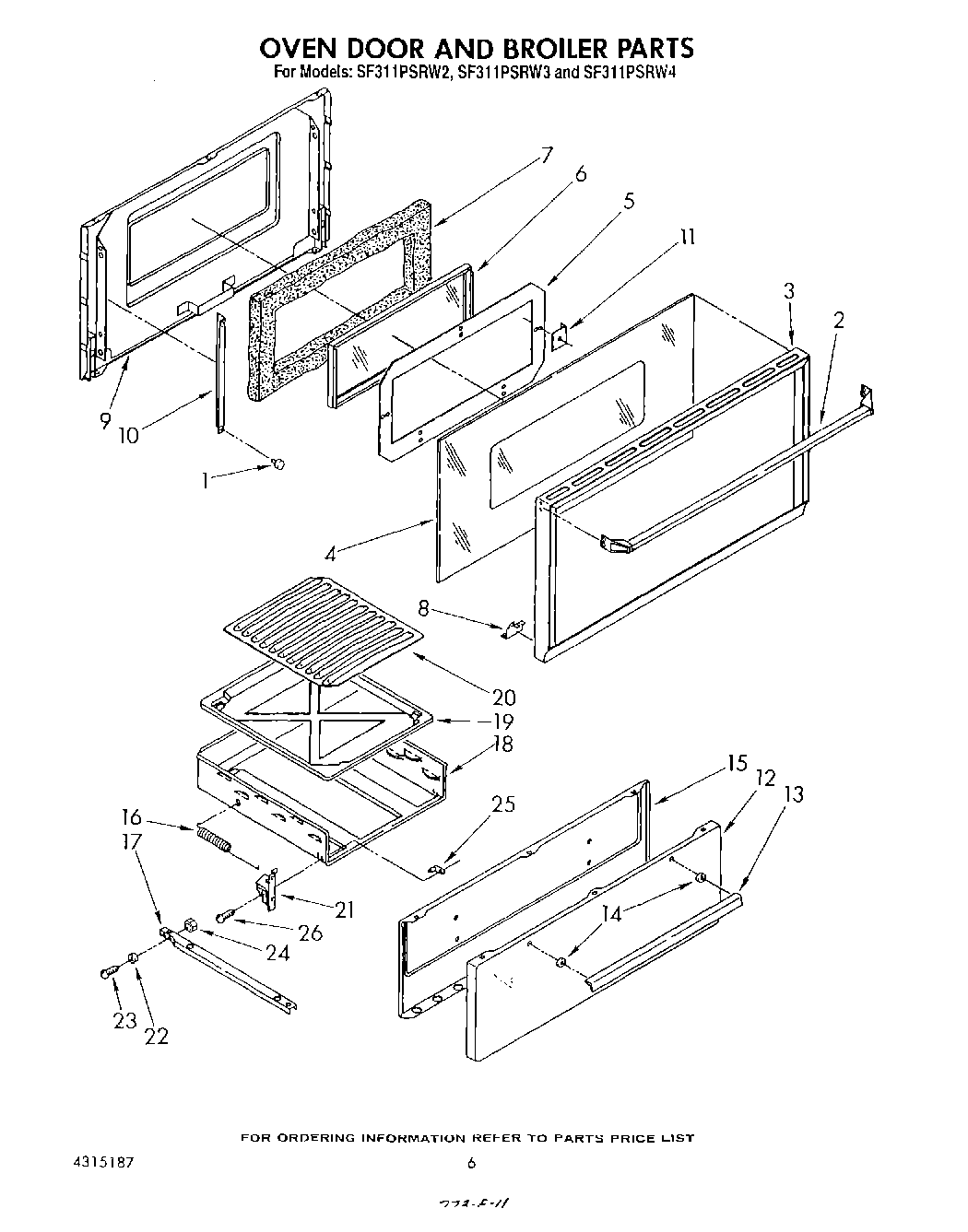

SF311PSRW2 05 – OVEN DOOR AND BROILER

Products

PositionProduct
1Bumper, Rubber (6)
2Handle, Door
2Screw, 8-18 X 3/8 (4)
3Frame, Door
4Glass
5Baffle
6Window Assy
7Insulation
8SCREW
8Support, Glass (Right Hand)
8Speed Clip (4)
8Support, Glass
9Liner, Door
10Support, Glass (2)
11Plate (2)
12Panel, Broiler (White)
12Panel, Broiler (Almond)
13Washer (2)
13Screw, 10-12 X 5/8 (2)
13Handle, Door (2)
14Spacer (4)
15Liner, Broiler Door
16Spring (2)
17Track, Upper (2)
18Liner, Broiler
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Grid
21W10080180 Whirlpool Nut
21Hinge, Door (R.H.)
21Hinge, Door (L.H.)
21WP308685 Whirlpool Microwave Screw
22Roller (2)
23Pin, Roller (2)
24Nut, Hex
25Plate (2)
26Screw (2)
