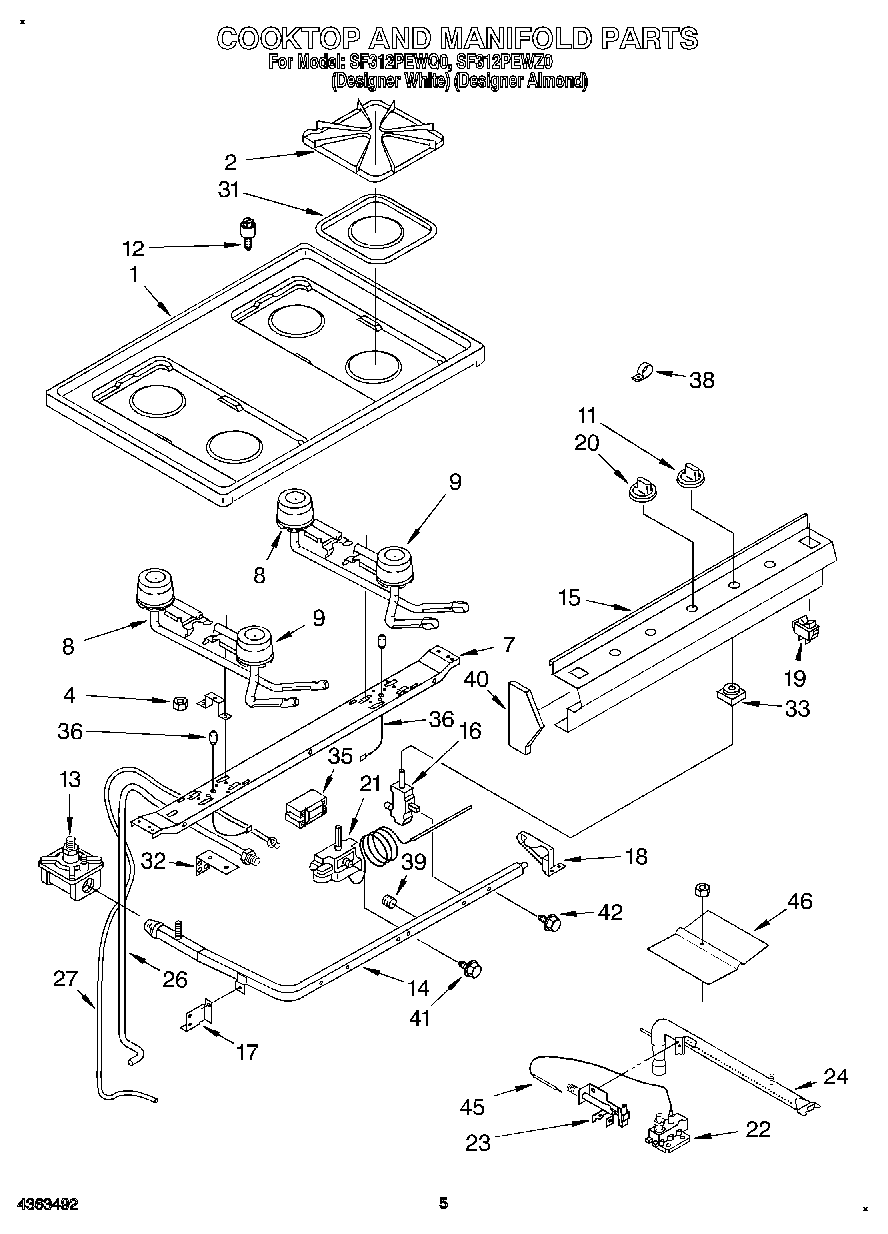

SF312PEWQ0 03 – COOKTOP AND MANIFOLD, LITERATURE

Products

Position	Product
	Guide, Use & Care
	Installation Instuctions
	Guide, Cooking
1	Cooktop (White)
1	Cooktop (Almond)
2	Grate (4) ((White Model))
2	Grate, Top Burner (4)
4	Nut, Hex
7	Support, Burner
7	Wire, Tie
8	Burner, Rear (2)
9	Screw, 10-12 X 3/8 (2)
9	Burner, Front (2)
11	Knob, Burner (4) ((Almond Model))
11	Knob, Burner (4) ((White Model))
12	Locator Stud (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold (Almond)
15	Panel, Manifold (White)
16	Valve, 90~ (4) (Includes Ill. No. 32)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
19	Switch, Oven Light (White)
19	Switch, Oven Light (Almond)
20	Knob, Thermostat (Almond)
20	Knob, Thermostat (White)
21	Thermostat (Includes Ill. No. 45)
22	Valve, Safety
23	Pilot
23	Screw
24	Burner, Oven
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
31	WPY0060872 Whirlpool Drip Pan
32	Plate, Spark Module
33	WP4157180 Whirlpool Surface Burner Ignition Switch
35	Module, Spark
36	Ignitor (L.H.)
36	Ignitor (R.H.)
38	Strain Relief
39	W10295523 Whirlpool Plug
40	Endcap (R.H.)
40	Endcap (L.H.)
41	Bolt, Thermostat Mounting (2)
42	Bolt, Valve Mounting
45	Screw, Thermostat Mounting (2)
45	Ignitor, Oven
46	W10080180 Whirlpool Nut
46	Spreader, Flame
