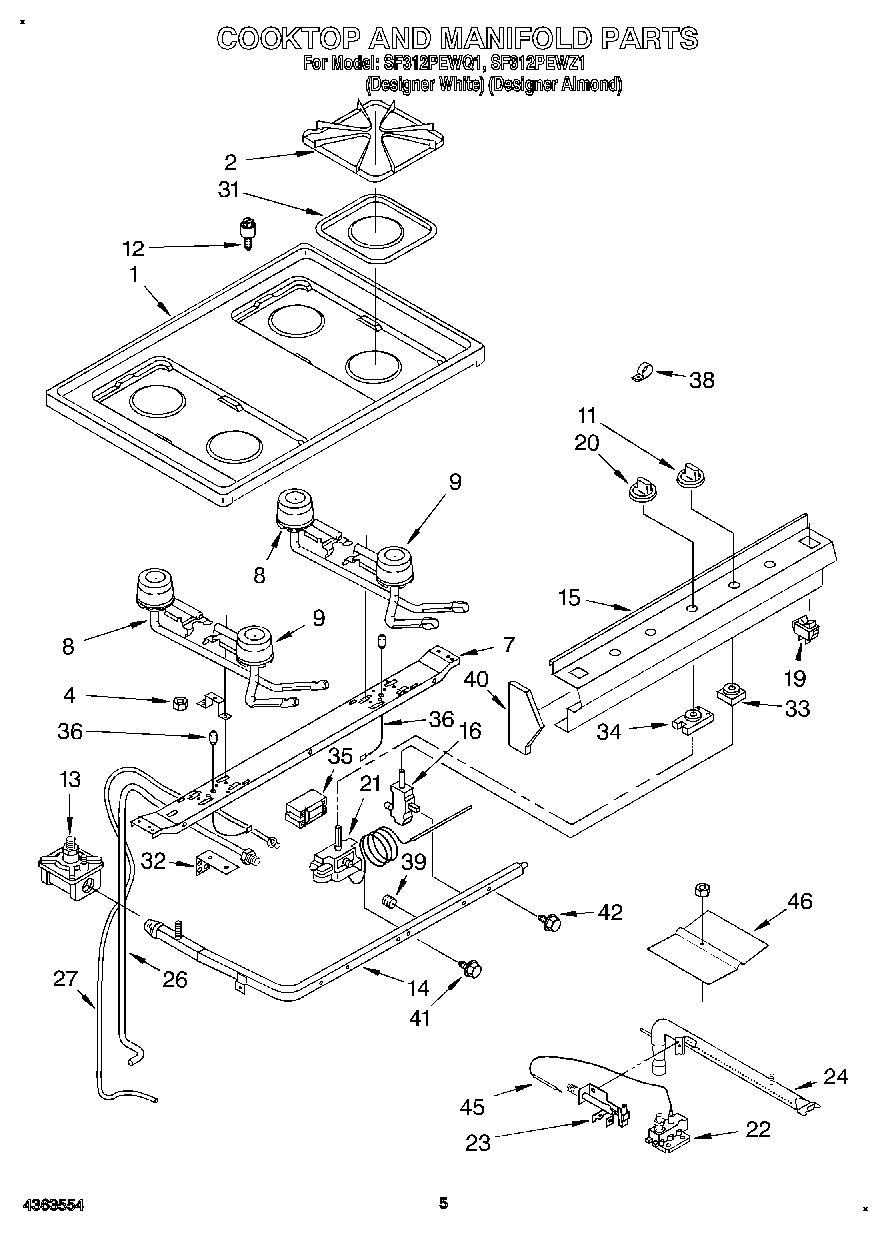

SF312PEWZ1 03 – COOKTOP AND MANIFOLD, LITERATUREadmin2025-04-26T11:24:43+00:00SF312PEWZ1 03 – COOKTOP AND MANIFOLD, LITERATURE
Products
| Position | Product |
|---|
| Installation Instuctions |
| Guide, Use & Care |
| Guide, Cooking |
| 1 | Cooktop (White) |
| 1 | Cooktop (Almond) |
| 2 | Grate (4) ((White Model)) |
| 2 | Grate, Top Burner (4) |
| 4 | Nut, Hex |
| 7 | Support, Burner |
| 7 | Wire, Tie |
| 8 | Burner, Rear (2) |
| 9 | Burner, Front (2) |
| 9 | Screw, 10-12 X 3/8 (2) |
| 11 | Knob, Burner (4) ((White Model)) |
| 11 | Knob, Burner (4) ((Almond Model)) |
| 12 | Locator Stud (2) |
| 13 | Regulator, Pressure |
| 14 | Panel, Broiler (Screw) |
| 14 | Manifold |
| 15 | Panel, Manifold (Almond) |
| 15 | Panel, Manifold (White) |
| 16 | Valve, 90~ (4) (Includes Ill. No. 32) |
| 19 | Switch, Oven Light (Almond) |
| 19 | Switch, Oven Light (White) |
| 20 | Knob, Thermostat (Almond) |
| 20 | Knob, Thermostat (White) |
| 21 | Thermostat (Includes Ill. No. 45) |
| 22 | WP308685 Whirlpool Microwave Screw |
| 22 | Valve, Safety |
| 23 | Pilot |
| 23 | Screw |
| 24 | Burner, Oven |
| 26 | Tubing 3/8`` (Thermostat To Safety Valve) |
| 27 | Tubing 3/16`` (Thermostat To Pilot) |
| 31 | WPY0060872 Whirlpool Drip Pan |
| 32 | Plate, Spark Module |
| 33 | WP4157180 Whirlpool Surface Burner Ignition Switch |
| 34 | WP878009 Whirlpool Igniter Switch |
| 35 | Module, Spark |
| 36 | Ignitor (R.H.) |
| 36 | Ignitor (L.H.) |
| 38 | Strain Relief |
| 39 | W10295523 Whirlpool Plug |
| 40 | Endcap (R.H.) |
| 40 | Endcap (L.H.) |
| 41 | Bolt, Thermostat Mounting (2) |
| 42 | Bolt, Valve Mounting |
| 45 | Screw, Thermostat Mounting (2) |
| 45 | Ignitor, Oven |
| 46 | Spreader, Flame |
| 46 | W10080180 Whirlpool Nut |
