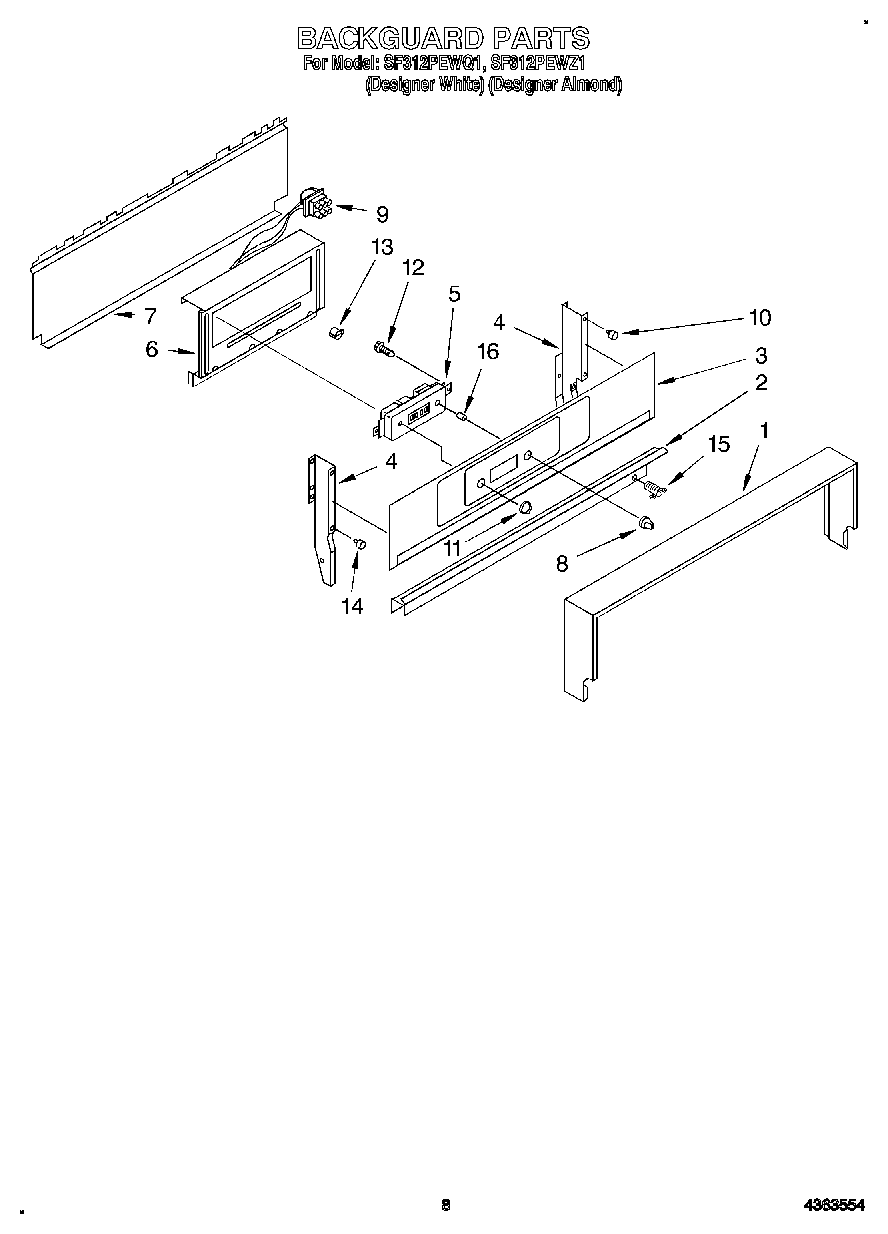

SF312PEWZ1 05 – BACKGUARD

Products

Position	Product
1	Frame, Backguard (Almond)
1	Frame, Backguard (White)
2	Screw, 10-12 x 1/2 (4)
2	Bottom, Backguard (White)
2	Bottom, Backguard (Almond)
3	Glass, Backguard (White)
3	Glass, Backguard ((Almond Model))
4	Support, Backguard (Right Hand)
4	Support, Backguard (Left Hand)
4	Screw, 10-32 X 1/2 (1)
5	Clock, Timer
6	Bracket, Clock
7	Panel, Rear
7	Screw, 10-12 X 3/8 (2)
8	Knob, Clock ((Almond Model))
8	Knob, Clock ((White Model))
9	Harness, Backguard
11	Set Button ((Almond Model))
11	Set Button ((White Model))
12	WP488729 Whirlpool Refrigerator Door Screw
13	Clip, Wire
14	Bumper, Rubber (6)
15	Strain Relief
15	WP308685 Whirlpool Microwave Screw
16	Shaft, Timer
