SF313PEPT0 05 – BACKGUARD
Written by
in

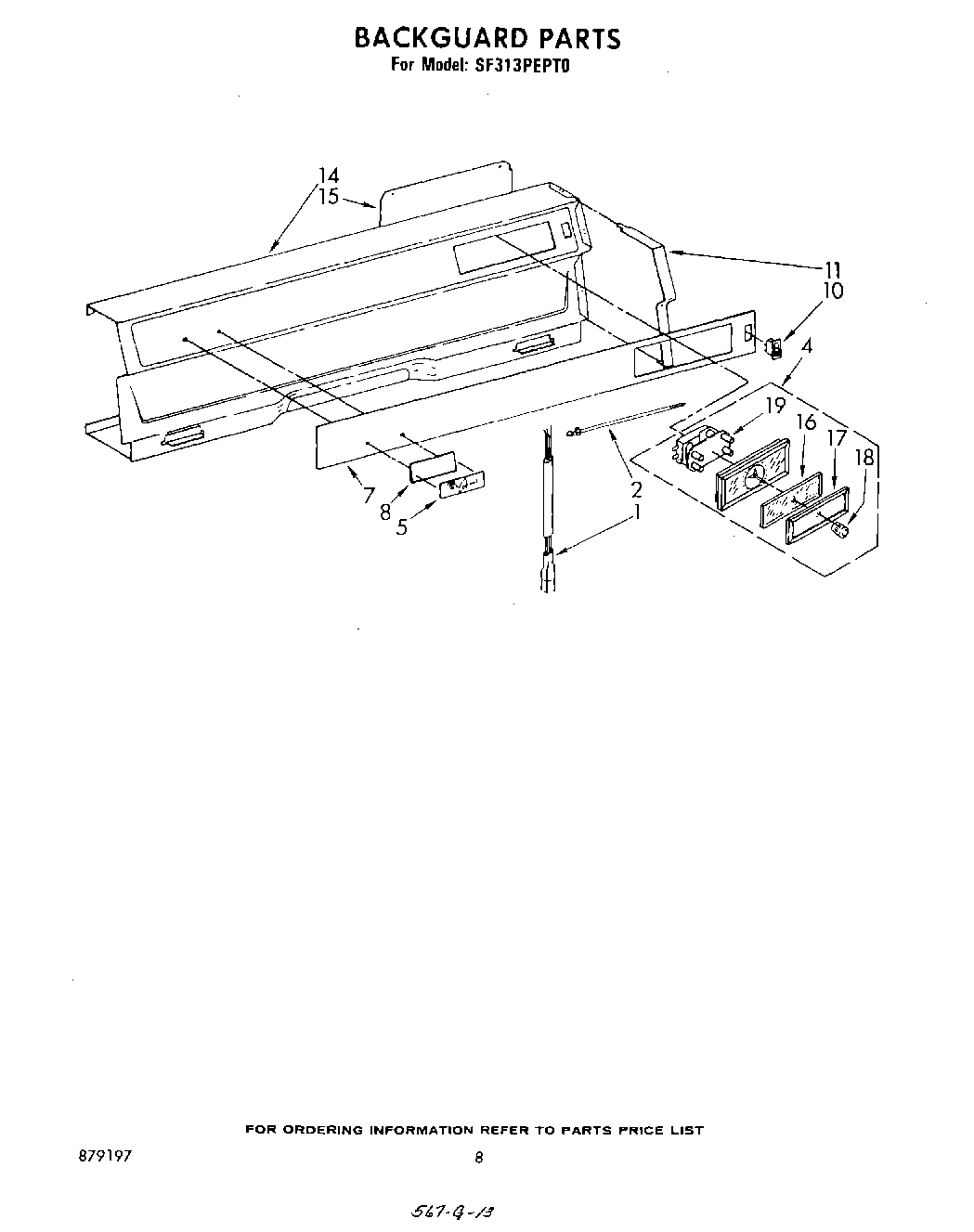

SF313PEPT0 05 – BACKGUARD
Products
Position
Product
1
Block, Disconnect Pin
2
Clamp, Wire
2
Clamp, Wire
4
Clock, Regular
5
Inlay, Nameplate
7
Inlay, Backguard Panel
8
Plate, Name
10
Switch, Rocker
11
End Cap, Backguard (Right Side)
11
End Cap, Backguard (Left Side)
14
almond
15
Cover, Clock
16
Bezel
17
Motor
18
WP3169181 Whirlpool Knob
19
Glass, Timer
←
