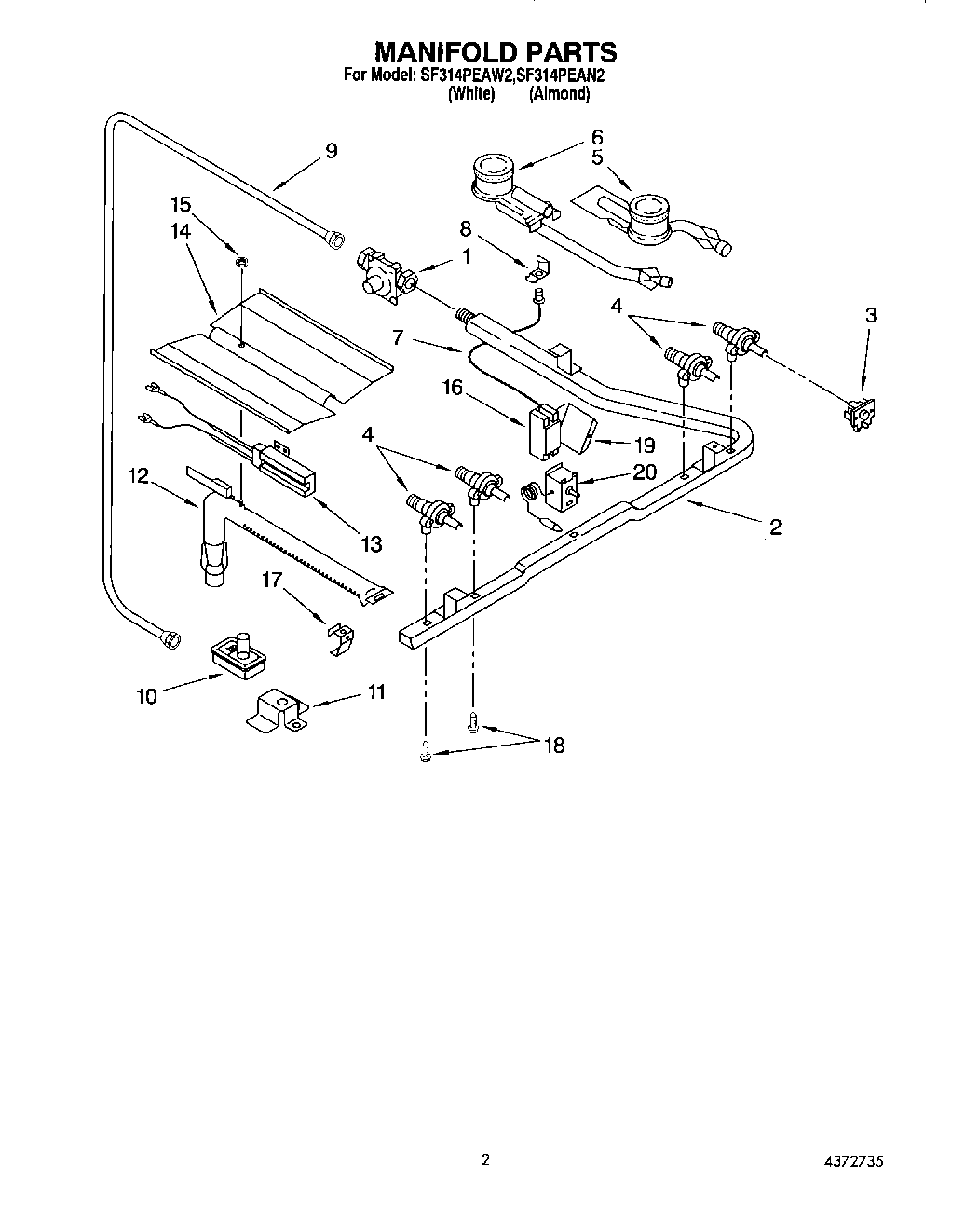

SF314PEAN2 02 – MANIFOLD

SF314PEAN2 02 – MANIFOLD

Written by

in

SF314PEAN2 02 – MANIFOLD

Products

PositionProduct
1Regulator, Pressure
2Pipe, Manifold
3Switch, Ignitor (4)
4Valve, 2 pos (4)
5Burner, Front (2)
6Burner, Rear (2)
7Ignitor, Top Burner
8Retainer, Ignitor
9Tubing, Alum 3/8
10Valve, Safety
11Bracket, Valve
12Burner, Oven
13814269 Whirlpool Oven Flat Igniter
14Baffle, Oven Burner
15Nut, Hex (2)
16Module, Spark
17Bracket, Burner
18WP3186217 Whirlpool Screw
19Shield, Ignitor
20Thermostat, Oven
