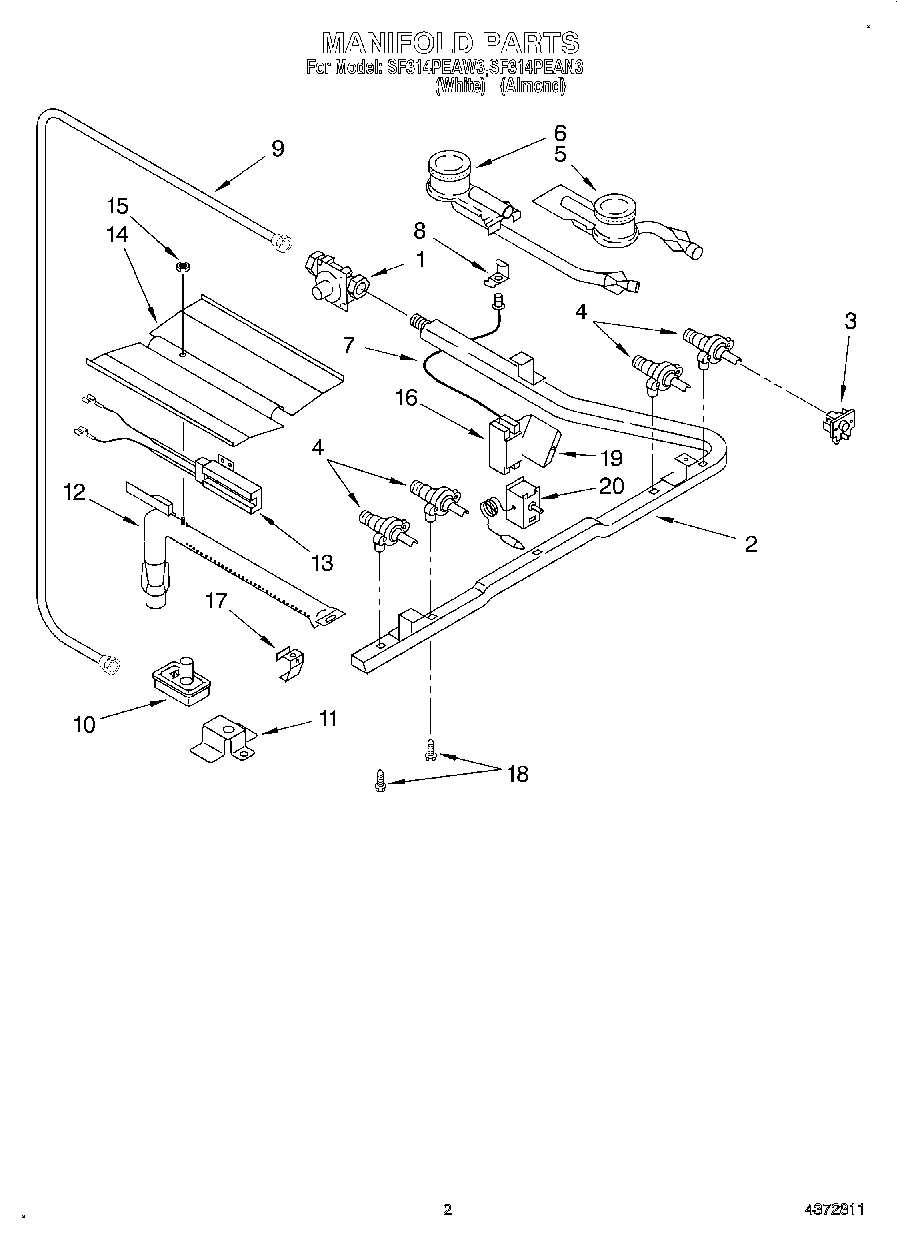

SF314PEAN3 02 – MANIFOLD

Products

Position	Product
1	Regulator, Pressure
2	Pipe, Manifold
3	Switch, Ignitor (4)
4	Valve, 2 pos (4)
5	Burner, Front (2)
6	Burner, Rear (2)
7	Ignitor, Top Burner
8	Retainer, Ignitor
9	Tubing, Alum 3/8
10	Valve, Safety
11	Bracket, Valve
12	Burner, Oven
13	814269 Whirlpool Oven Flat Igniter
14	Baffle, Oven Burner
15	Nut, Hex (2)
16	Module, Spark
17	Bracket, Burner
18	WP3186217 Whirlpool Screw
19	Shield, Ignitor
20	Thermostat, Oven
