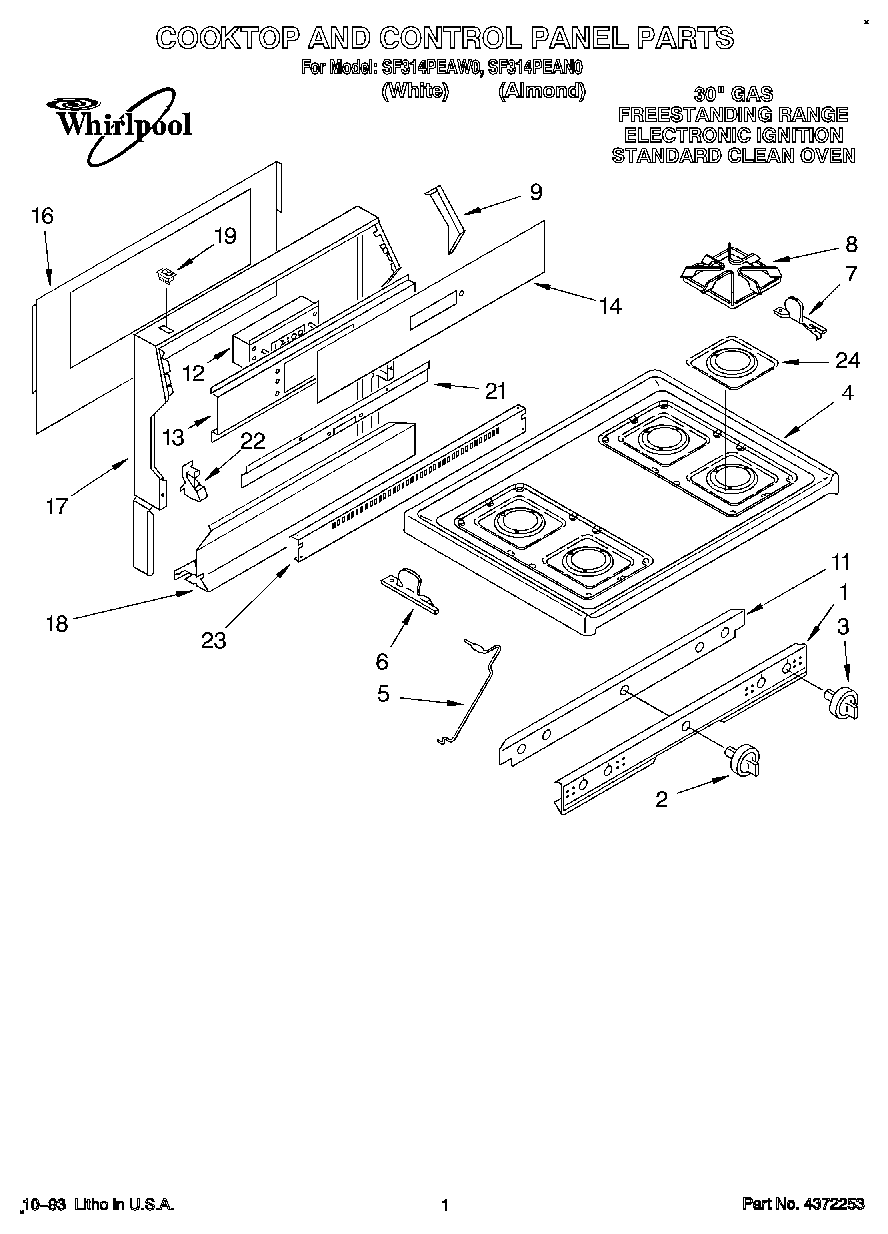

SF314PEAW0 01 – COOKTOP AND CONTROL PANEL, LITERATURE

Products

PositionProduct
Installation, Instructions
Guide, Use & Care
1Panel, Control
2Knob, Thermostat
3Knob, Burner (4)
4Top, Main (White)
4Top, Main (Almond)
5Rod, Support Top
6Bracket, Hinge LH
7Bracket, Hinge RH
8Grate (4)
9Cap, End (R.H.)
9Cap, End (L.H.)
11Cover, Manifold
12Clock, Electronic
13Plate, Timer Mounting
14Panel, Control
16Shield, Rear Wall
17Trim, Wrapper
18Trim, Splasher (White)
18Trim, Splasher (Almond)
19WP4314961 Whirlpool Lite Switch
21Retainer, Timer
22Brace, Backguard
23Trim, Vent
24Pan, Burner (4)
