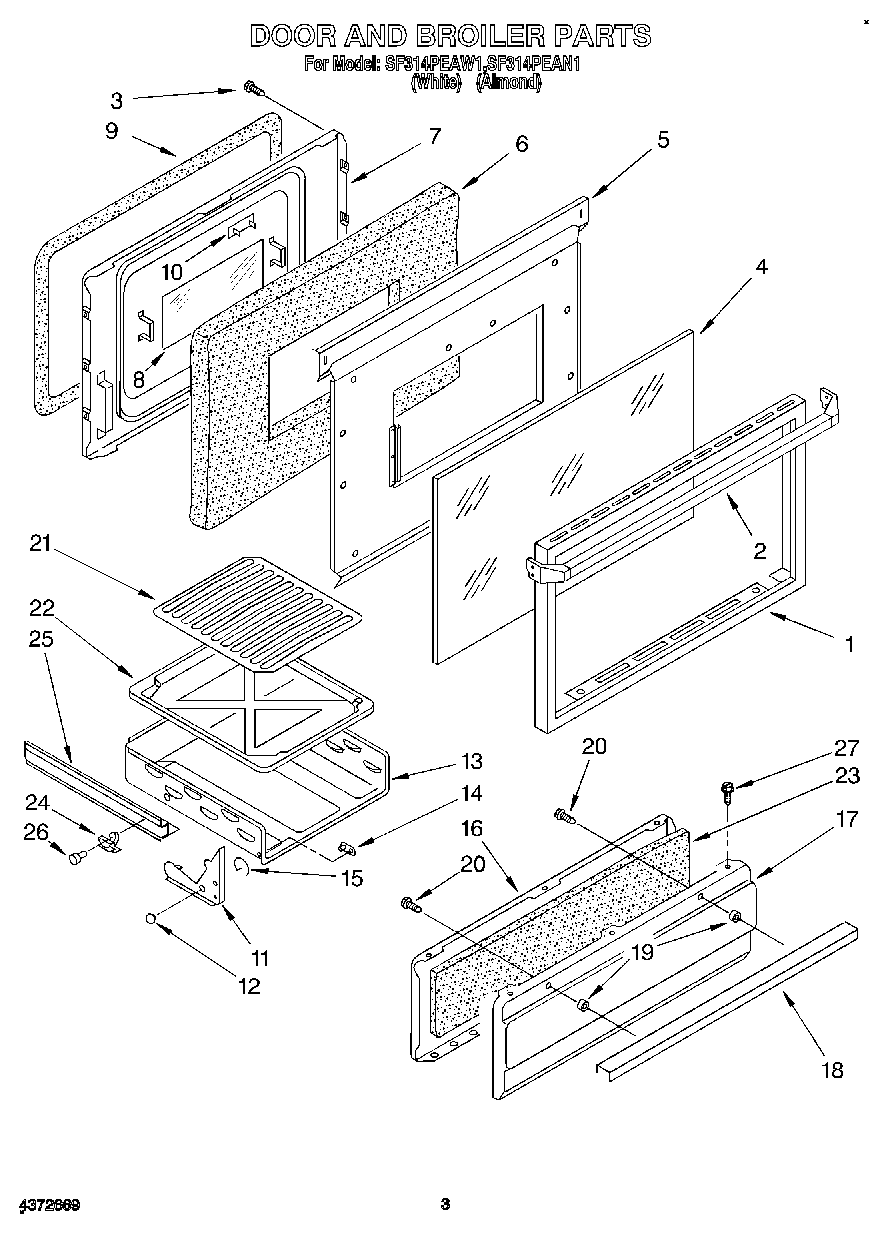

SF314PEAW1 03 – DOOR AND BROILER

Products

Position	Product
1	Trim, Door
2	Handle, Door
3	Screw, Handle
4	Glass, Door
5	Shield, Heat
6	Insulation
7	Liner, Oven Door
8	Glass, Inner
9	Seal, Door
10	Cover, Door
11	Bracket, Hinge LH
11	Bracket, Hinge RH
12	Fastener, Push Nut
13	Body, Broiler
14	Pin, Hinge (2)
15	Spring, Broiler (R.H.)
15	Spring, Broiler (L.H.)
16	Liner, Broiler Door
17	Panel, Drawer
18	Handle, Utility Drawer
19	Spacer, Handle
20	Screw, Handle (2)
21	Insert, Broiler Pan
22	Pan, Broiler
23	Insulation
24	Glide, Drawer (6)
25	Channel, Broiler
26	Button, Glide (2)
27	Screw, Panel (4)
