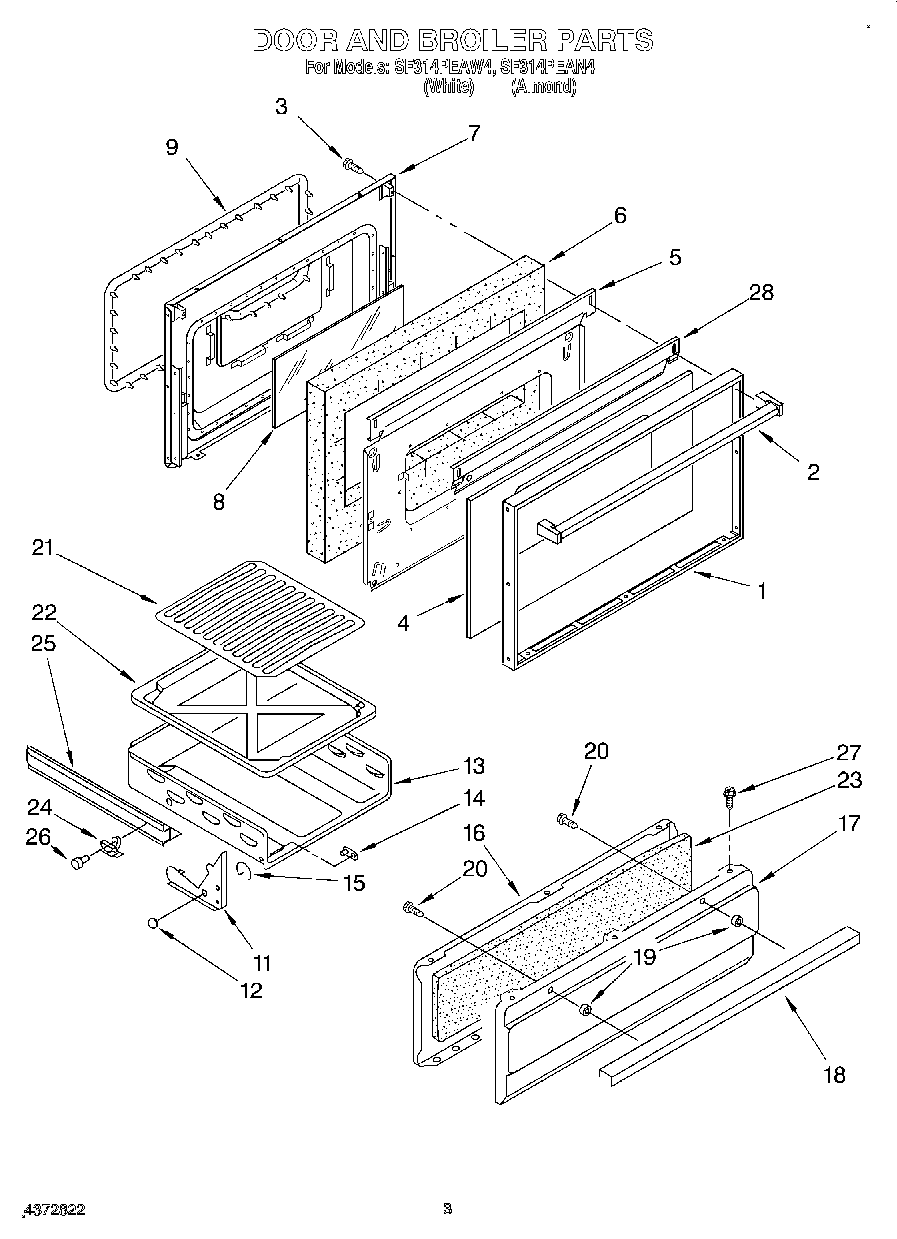

SF314PEAW4 03 – DOOR AND BROILER

Products

PositionProduct
1Trim, Door
2Handle, Door
3Screw, Handle
4Glass, Door
5Shield, Heat
6Insulation
7Liner, Oven Door
8Glass, Inner
9Seal, Door
11Bracket, Hinge LH
11Bracket, Hinge RH
12Fastener, Push Nut
13Body, Broiler
14Pin, Hinge (2)
15Spring, Broiler (R.H.)
15Spring, Broiler (L.H.)
16Liner, Broiler Door
17Panel, Drawer
18Handle, Utility Drawer
19Spacer, Handle
20Screw, Handle (2)
21Insert, Broiler Pan
22Pan, Broiler
23Insulation
24Glide, Drawer (6)
25Channel, Broiler
26Button, Glide (2)
27Screw, Panel (4)
28Sheild, Door Top
