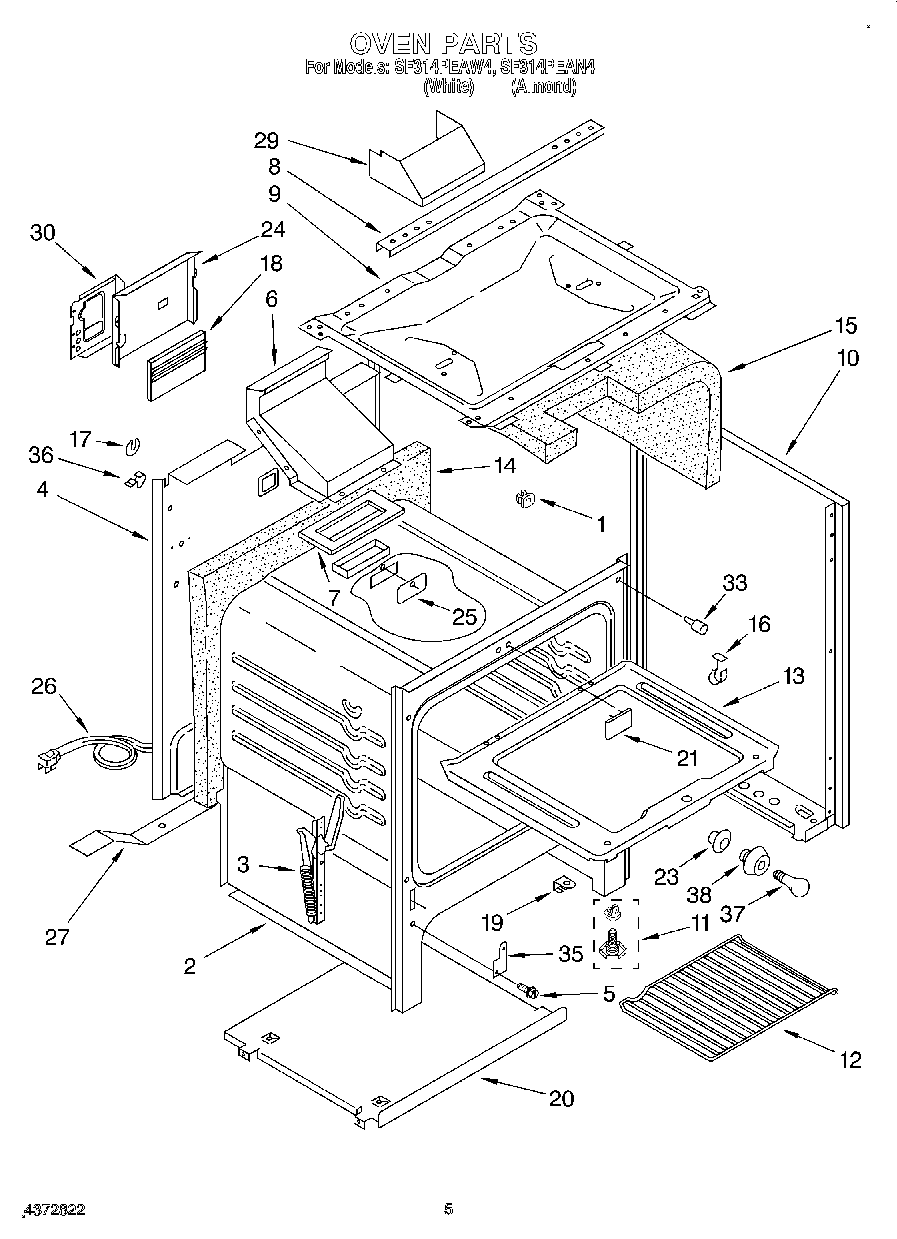

SF314PEAW4 04 – OVEN

Products

Position	Product
1	Spacer, Body (8)
2	Liner, Oven (Not a Serviceable Part)
3	Hinge, Oven Door
4	Back, Main
5	Screw, Oven Bottom
6	Flue
7	Gasket, Flue
8	Support, Burner
8	WP912618 Whirlpool Dishwasher Screw
9	Burner, Box
10	Panel, Side (White LH)
10	Panel, Side (White RH)
10	Panel, Side (Almond LH)
10	Panel, Side (Almond RH)
11	Screw, Leveler (4)
12	Rack, Oven (2)
13	Bottom, Oven
14	Insulation, Back
15	WPW10208653 Whirlpool Insulation
16	Clip, Thermo Bulb
17	Fastener, U Type
18	Cover, Flue
19	Support, Oven Bottom
20	Base, Broiler
21	Cover, Front
23	Housing, Oven Light
24	Shield, Flue
25	Plate, Cover
26	Cord, Power
27	Bracket, Anti-Tip
29	Cover, Top Rear
30	Shield, Module
33	Bumper, Front (4)
35	Cover, Hinge
36	Fastener, Wire
37	RANGE ONLY 40W 120V APPL BULB
38	W10856866 Whirlpool Light Socket
