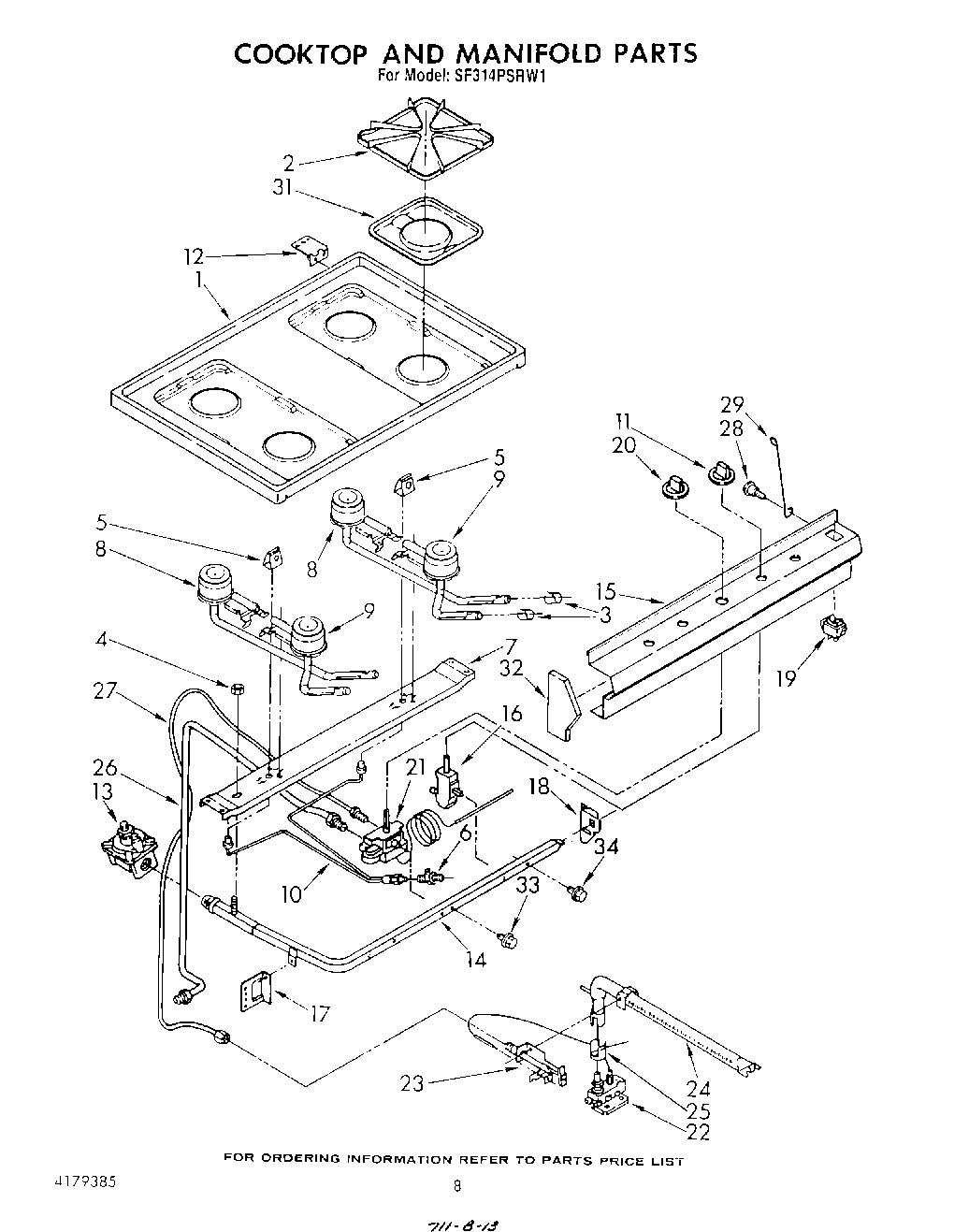

SF314PSRW1 06 – COOKTOP AND MANIFOLD , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT4179385
Guide, Cooking
Sheet, Conversio
WPL LIT786735
Guide
1Cooktop (White)
1Cooktop (Almond)
1Cooktop (Harvest Gold)
2Grate (4)
3Shutter, Air (4)
4Nut, Hex
5Cover, Pilot (2)
6Filter, Pilot
7Support, Burner
8Burner, Rear (2)
9Burner, Front (2)
9Screw, 10-12 X 3/8 (2)
10Tubing, Pilot (Incl. No. 6)
11WP4179282 Whirlpool Knob
12Speed Clip (4)
12SCREW
12Hinge, Maintop (2)
13Regulator, Pressure
14Manifold
15Panel, Manifold
16Valve, 90~ (4) (Includes Ill. No. 32)
17Support, Manifold (L.H.)
18Support, Manifold (R.H.)
18WP308685 Whirlpool Microwave Screw
19Switch, Oven Light (2)
20WPY07506601 Whirlpool Thermal Knob
21Thermostat (Includes Ill. No. 31)
22WP3387230 Whirlpool Screw
22Valve, Safety
23Screw, 10-24 X 1/4 (1)
23Pilot
24Burner, Oven
25Shutter, Burner
26Tubing 3/8“ (Thermostat To Safety Valve)
27Tubing 3/16“ (Thermostat To Pilot)
28Screw
29Rod, Support
30WPL 4157189
31WP786333 Whirlpool Drip Bowl
32Endcap (L.H.)
32Endcap (R.H.)
33Bolt, Thermostat Mounting (2)
34Bolt, Valve Mounting
34WPW10208653 Whirlpool Insulation
34FOIL, ALUMINUM OVEN (18“ X 25 )
