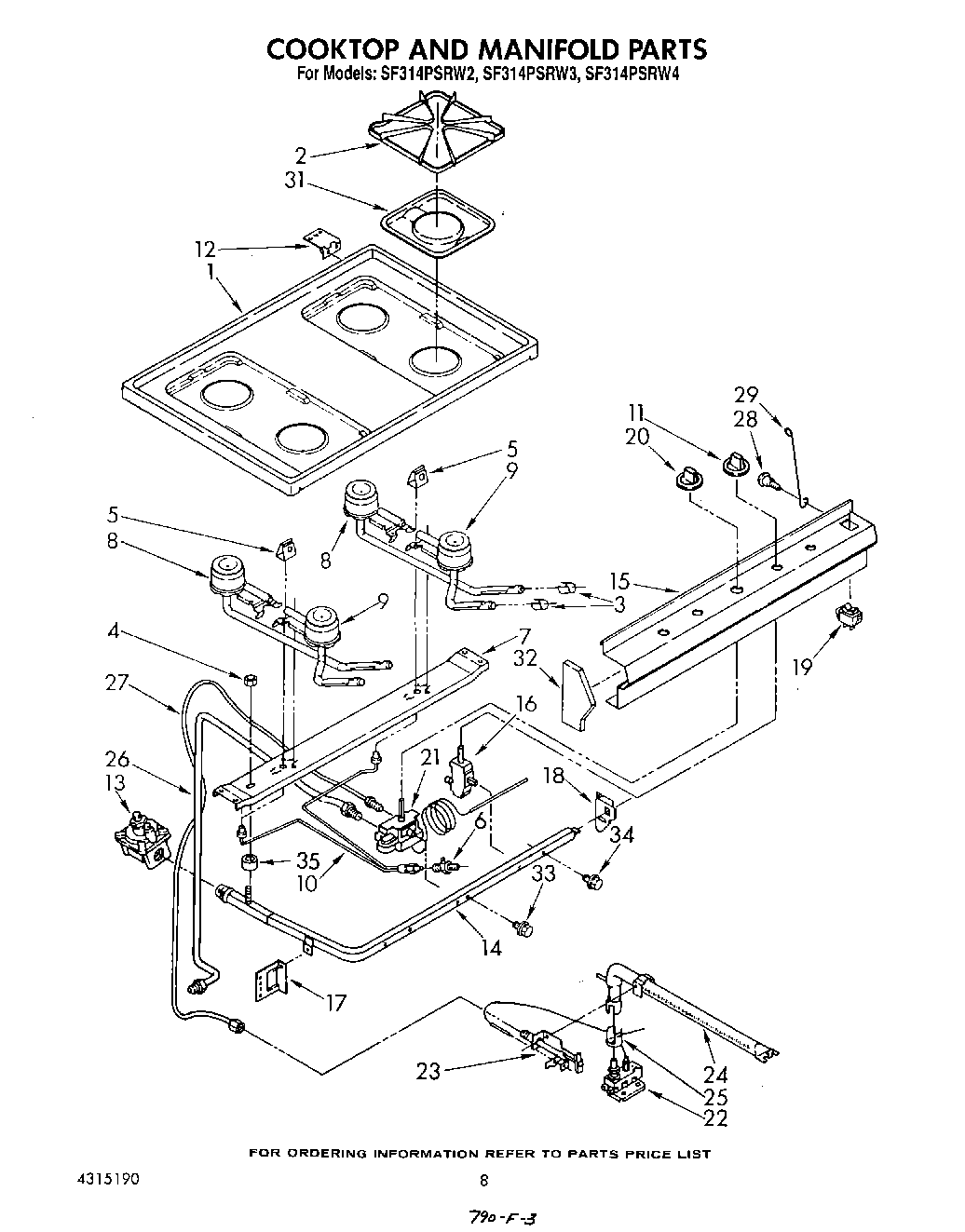

SF314PSRW2 06 – COOKTOP AND MANIFOLD , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT4315190
	Guide, Cooking
	Sheet, Conversio
	WPL LIT786735
	Guide
1	Cooktop (White)
1	Cooktop (Almond)
1	Cooktop (Harvest Gold)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
5	Cover, Pilot (2)
6	Filter, Pilot
7	Support, Burner
8	Burner, Rear (2)
9	Screw, 10-12 X 3/8 (2)
9	Burner, Front (2)
10	Tubing, Pilot (Incl. No. 6)
11	WP4179282 Whirlpool Knob
12	Hinge, Maintop (2)
12	Speed Clip (4)
12	SCREW
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
19	Switch, Oven Light (2)
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat (Includes Ill. No. 31)
22	WP3387230 Whirlpool Screw
22	Valve, Safety
23	Screw, 10-24 X 1/4 (1)
23	Pilot
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Screw
29	Rod, Support
30	WPL 4157189
31	WP786333 Whirlpool Drip Bowl
32	Endcap (R.H.)
32	Endcap (L.H.)
33	Bolt, Thermostat Mounting (2)
34	Bolt, Valve Mounting
35	Spacer, Manifold
35	FOIL, ALUMINUM OVEN (18“ X 25 )
35	WPW10208653 Whirlpool Insulation
