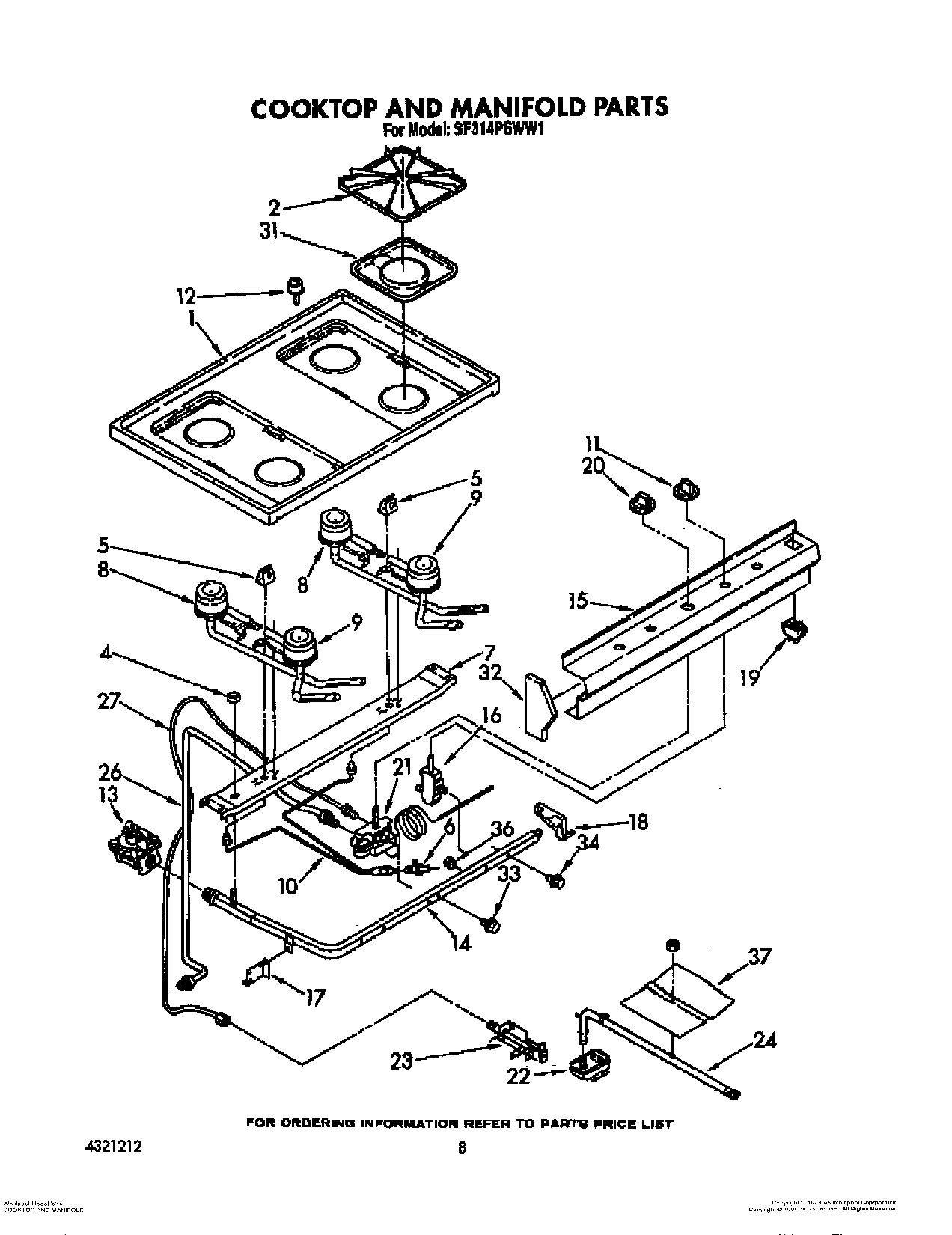

SF314PSWW1 06 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	WPL LIT4321212
	Use & Care Guide
	Sheet, Conversio
	Instuctions, Installation
	Guide, Cooking
1	Cooktop (White)
1	Cooktop (Almond)
2	Grate (4)
4	Nut, Hex
5	Cover, Pilot (2)
6	Filter, Pilot
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
10	Tubing, Pilot (Incl. No. 6)
11	WP4320580 Whirlpool Knob Assembly
12	Speed Clip (4)
12	Locator Stud (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
19	Switch, Oven Light
20	Knob, Thermostat
21	Thermostat (Includes Ill. No. 31)
22	WP3387230 Whirlpool Screw
22	Valve, Safety
23	Screw, 10-24 X 1/4 (1)
23	Pilot
24	Burner, Oven
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
31	WP786333 Whirlpool Drip Bowl
32	Endcap (R.H.)
32	Endcap (L.H.)
33	Bolt, Thermostat Mounting (2)
34	Bolt, Valve Mounting
36	W10295523 Whirlpool Plug
37	Spreader, Flame
37	WPW10208653 Whirlpool Insulation
37	W10080180 Whirlpool Nut
37	FOIL, ALUMINUM OVEN (18“ X 25 )
