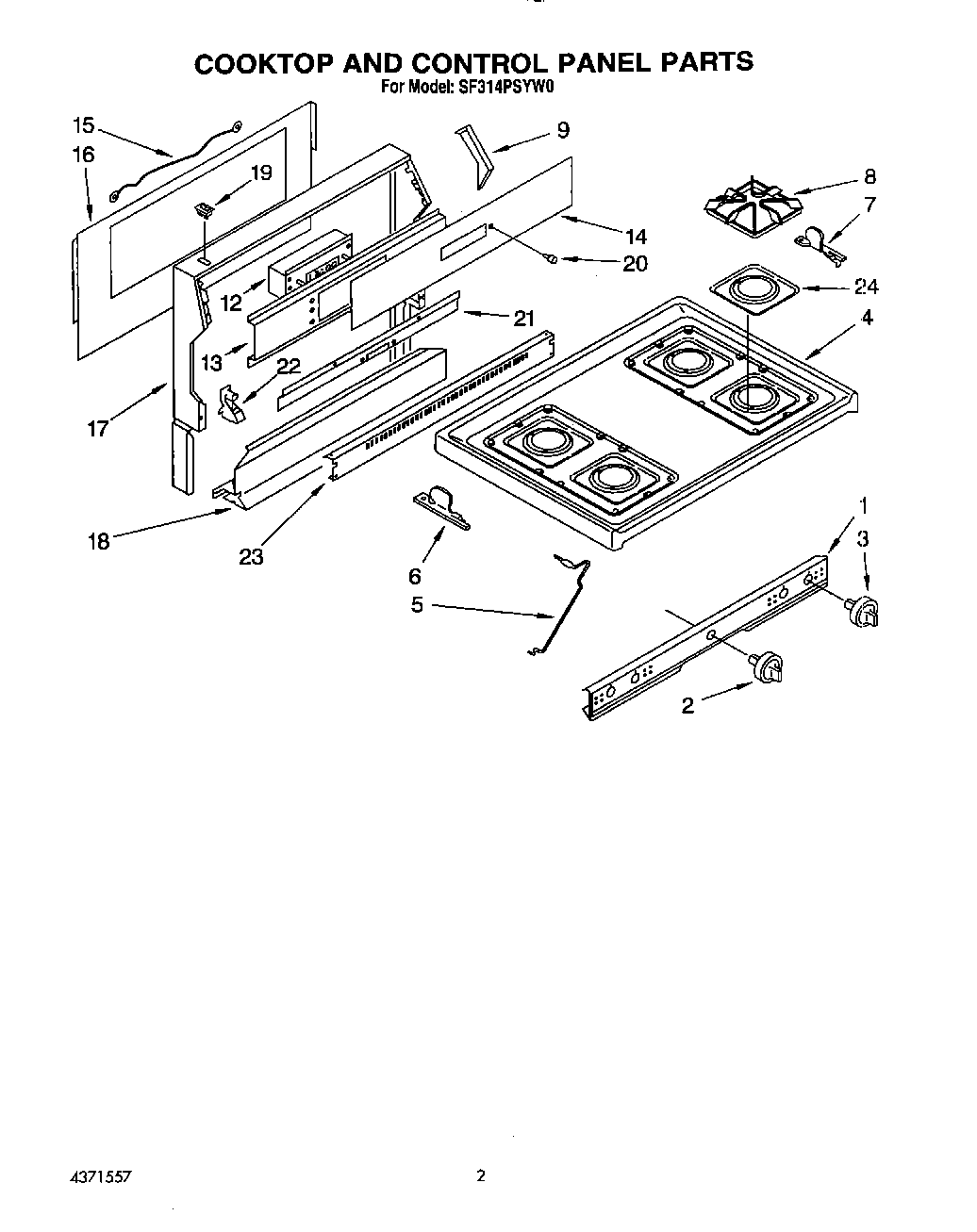

SF314PSYW0 02 – COOKTOP AND CONTROL PANEL, LIT/OPTI

Products

PositionProduct
List, Repair Parts
Guide, Use & Care
Installation, Instructions
1Panel, Control
2Knob, Thermostat
3Knob, Burner (4)
4Top, Main (Gold)
4Top, Main (Almond)
4Top, Main (White)
5Rod, Support Top
6Bracket, Hinge LH
7Bracket, Hinge RH
8Grate (4)
9Cap, End (R.H.)
9Cap, End (L.H.)
12Clock
13Bracket, Timer
14Panel, Control
15Cable, Anti-Tip
16Shield, Rear Wall
17Trim, Wrapper
18Panel, Splash (Gold)
18Trim, Splasher (White)
18Trim, Splasher (Almond)
19WP4314961 Whirlpool Lite Switch
20Knob, Clock
21Retainer, Timer
22Brace, Backguard
23Trim, Vent
24Pan, Burner
