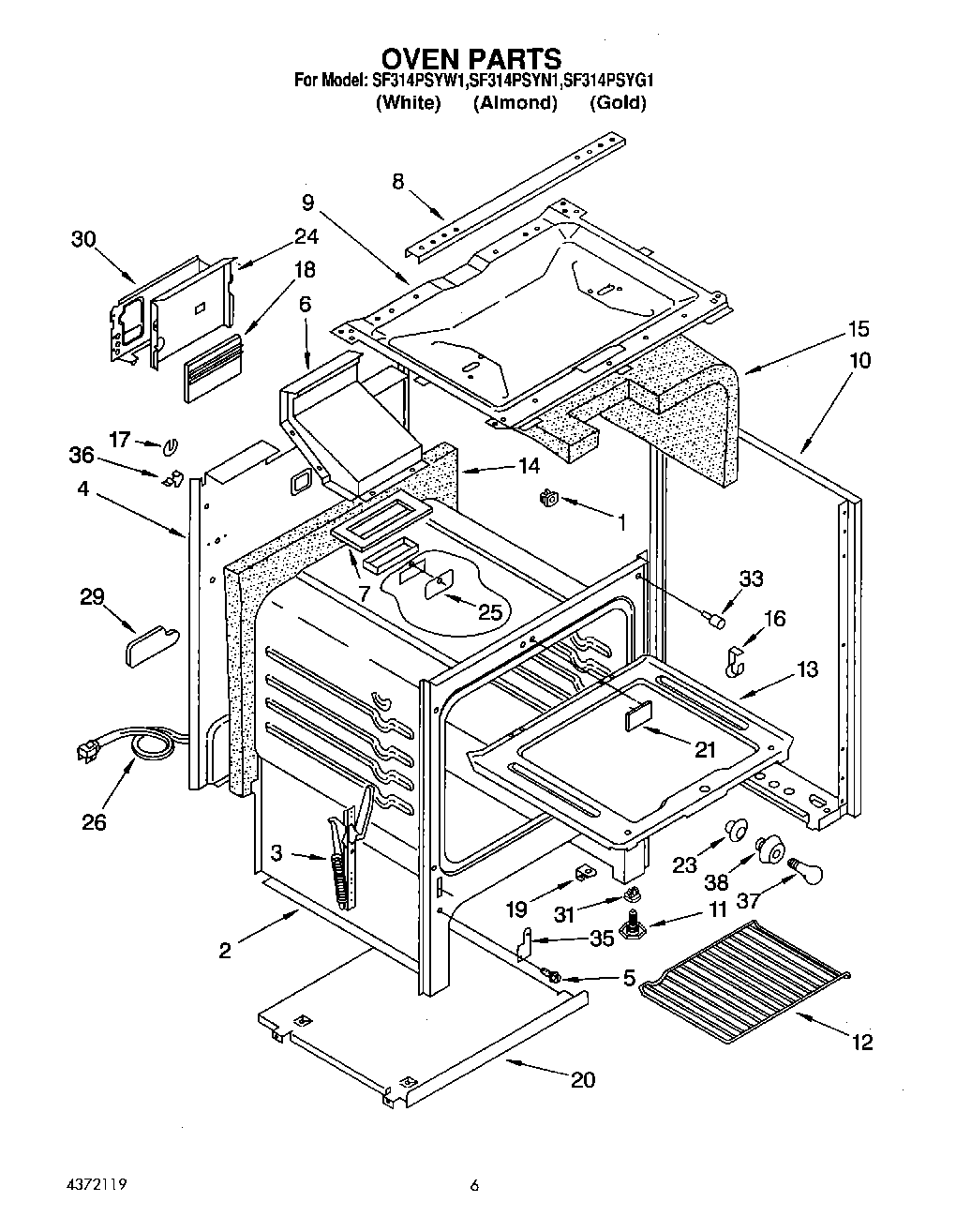

| 1 | Spacer, Body (8) |
| 2 | Liner, Oven (Not a Serviceable Part) |
| 3 | Hinge, Oven Door |
| 4 | Back, Main |
| 5 | Screw, Oven Bottom |
| 6 | Flue |
| 7 | Gasket, Flue |
| 8 | Support, Burner |
| 9 | Burner, Box |
| 10 | Panel B/S (Gold RH) |
| 10 | Panel B/S (Gold LH) |
| 10 | Panel, Side (White LH) |
| 10 | Panel, Side (Almond RH) |
| 10 | Panel, Side (Almond LH) |
| 10 | Panel, Side (White RH) |
| 11 | Screw, Leveler (4) |
| 12 | Rack, Oven (2) |
| 13 | Bottom, Oven |
| 14 | Insulation, Back |
| 15 | WPW10208653 Whirlpool Insulation |
| 16 | Clip, Thermo Bulb |
| 17 | Fastener, U Type |
| 18 | Cover, Flue |
| 19 | Support, Oven Bottom |
| 20 | Base, Broiler |
| 21 | Cover, Front |
| 23 | Housing, Oven Light |
| 24 | Shield, Flue |
| 25 | Plate, Cover |
| 26 | Cord, Power |
| 29 | Cover, Top Rear |
| 30 | Shield, Module |
| 31 | Fastener, T Nut (4) |
| 33 | Bumper, Front (4) |
| 35 | Cover, Hinge |
| 36 | Fastener, Wire |
| 37 | RANGE ONLY 40W 120V APPL BULB |
| 38 | W10856866 Whirlpool Light Socket |
