SF315EEPW0 06 – COOKTOP

SF315EEPW0 06 – COOKTOP

Written by

in

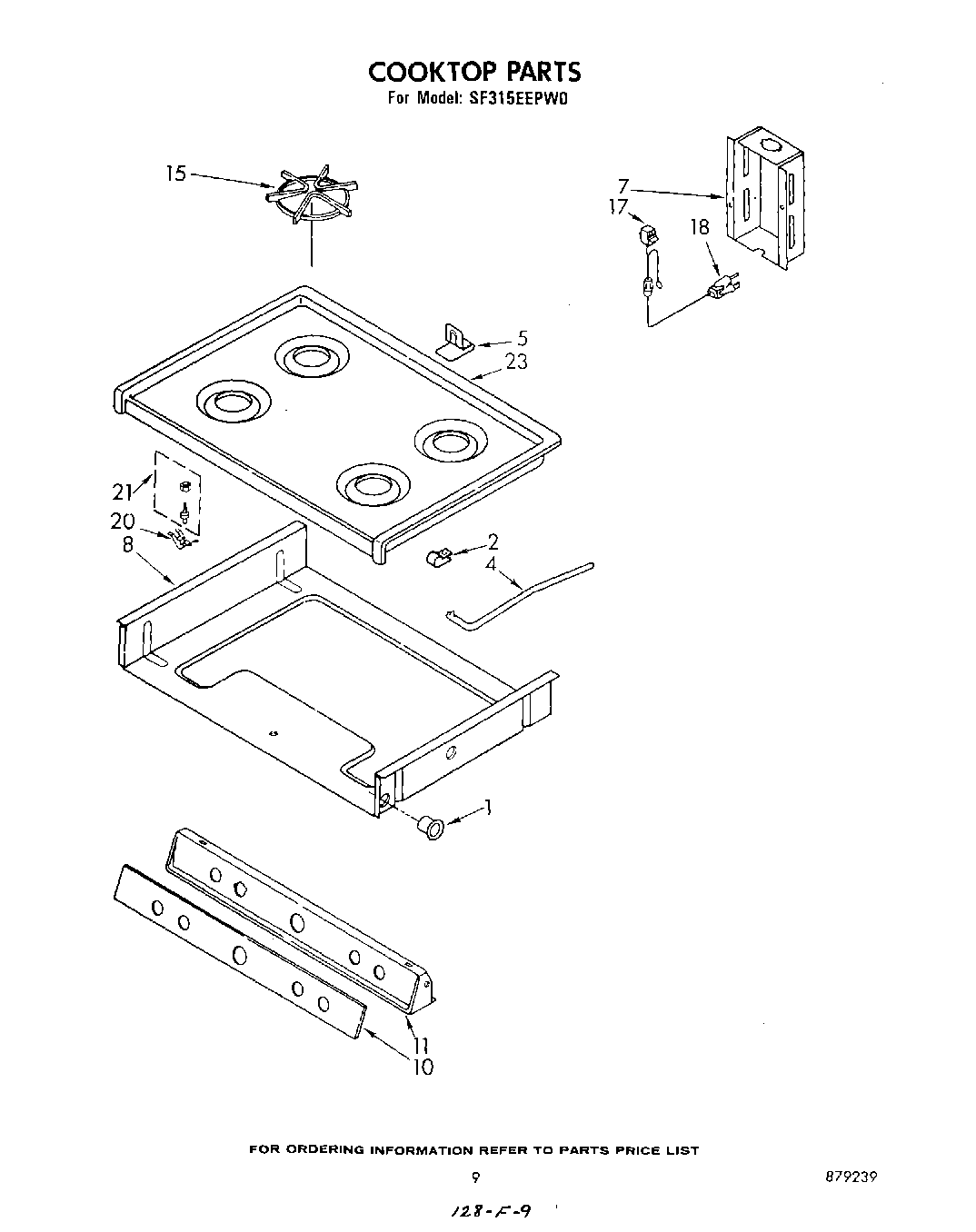

SF315EEPW0 06 – COOKTOP

Products

Position	Product
1	Bushing, Snap
2	Clamp, Top Stop
4	Stop, Cook Top
5	Spacer, Main Top
7	Cover, Wire
8	Bottom, Burner Box
10	Inlay, Manifold Panel
11	Panel, Manifold (Toast)
11	Panel, Manifold (White)
11	Panel, Manifold (Almond)
11	Panel, Manifold (Toast)
15	Grate, Burner (4)
17	Block, Disconnect Socket
18	Cord, Extension
20	Catch, Main Top (2)
21	Strike, Main Top (2)
23	Top, Main (Platinum)
23	Top, Main (Toast)
23	Top, Main (Almond)
23	Top, Main (White)
