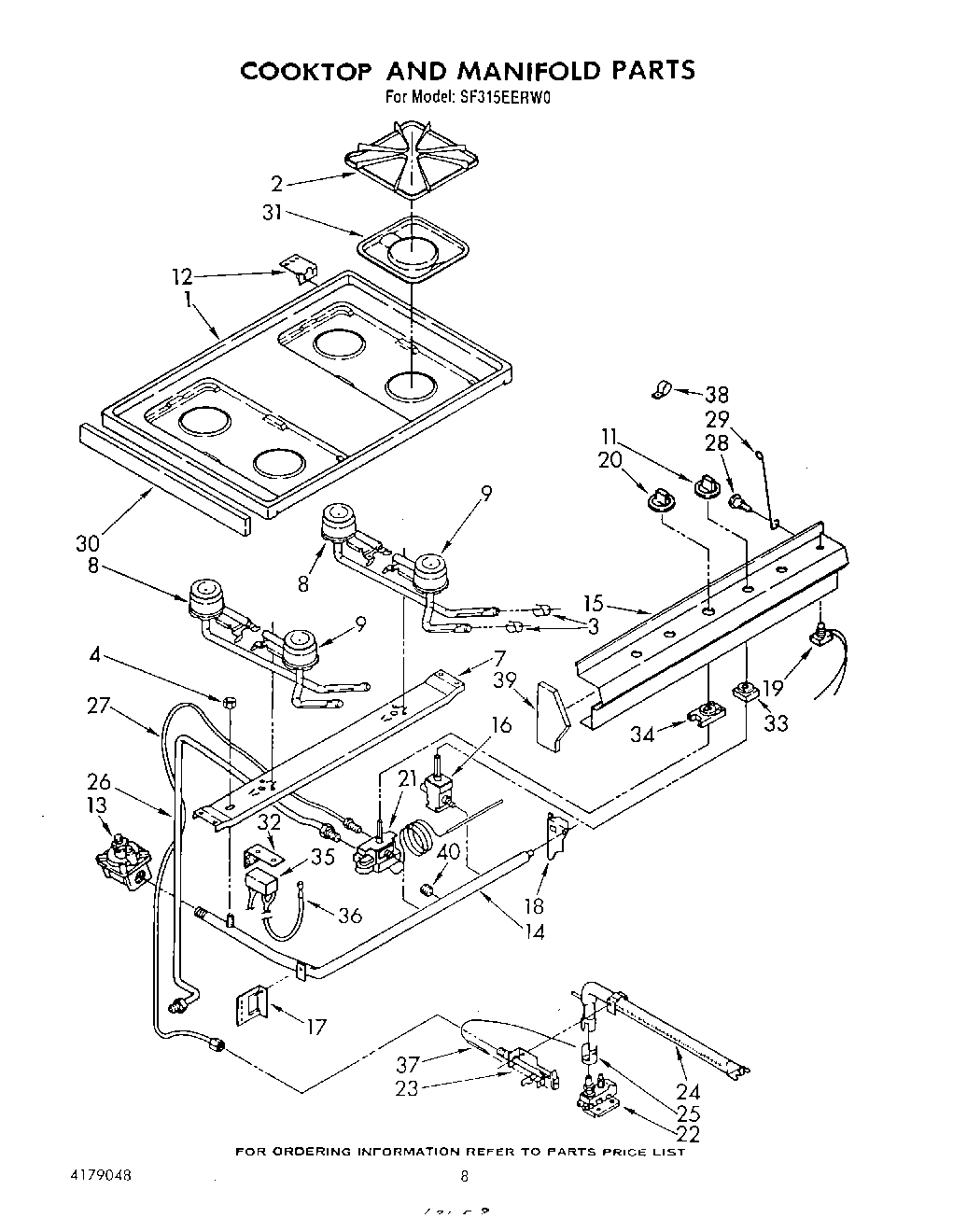

SF315EERW0 06 – COOK TOP AND MANIFOLD , LITERATURE

Products

Position	Product
	WPL LIT786735
	WPL LIT4179048
	WPL LIT4157063
	Guide, Cooking
1	Cooktop (White)
1	Cooktop (Platinum)
1	Cooktop (Toast)
1	Cooktop (Almond)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
11	WP4179282 Whirlpool Knob
12	Hinge, Maintop (2)
12	Speed Clip (4)
12	SCREW
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 180~ (4)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
19	Switch, Oven Light (2)
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Pilot
23	Screw, 10-24 X 1/4 (1)
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8`` (Thermostat To Safety Valve)
27	Tubing 3/16`` (Thermostat To Pilot)
28	Screw
29	Rod, Support
31	WP786333 Whirlpool Drip Bowl
32	Plate, Spark Module
33	WP4157180 Whirlpool Surface Burner Ignition Switch
34	WP878009 Whirlpool Igniter Switch
35	Module, Spark
36	Ignitor (R.H.)
36	Ignitor (L.H.)
37	Ignitor, Oven
38	Strain Relief
39	W10295523 Whirlpool Plug
40	FOIL, ALUMINUM OVEN (18`` X 25 )
40	Endcap (L.H.)
40	Endcap (R.H.)
40	WPW10208653 Whirlpool Insulation
