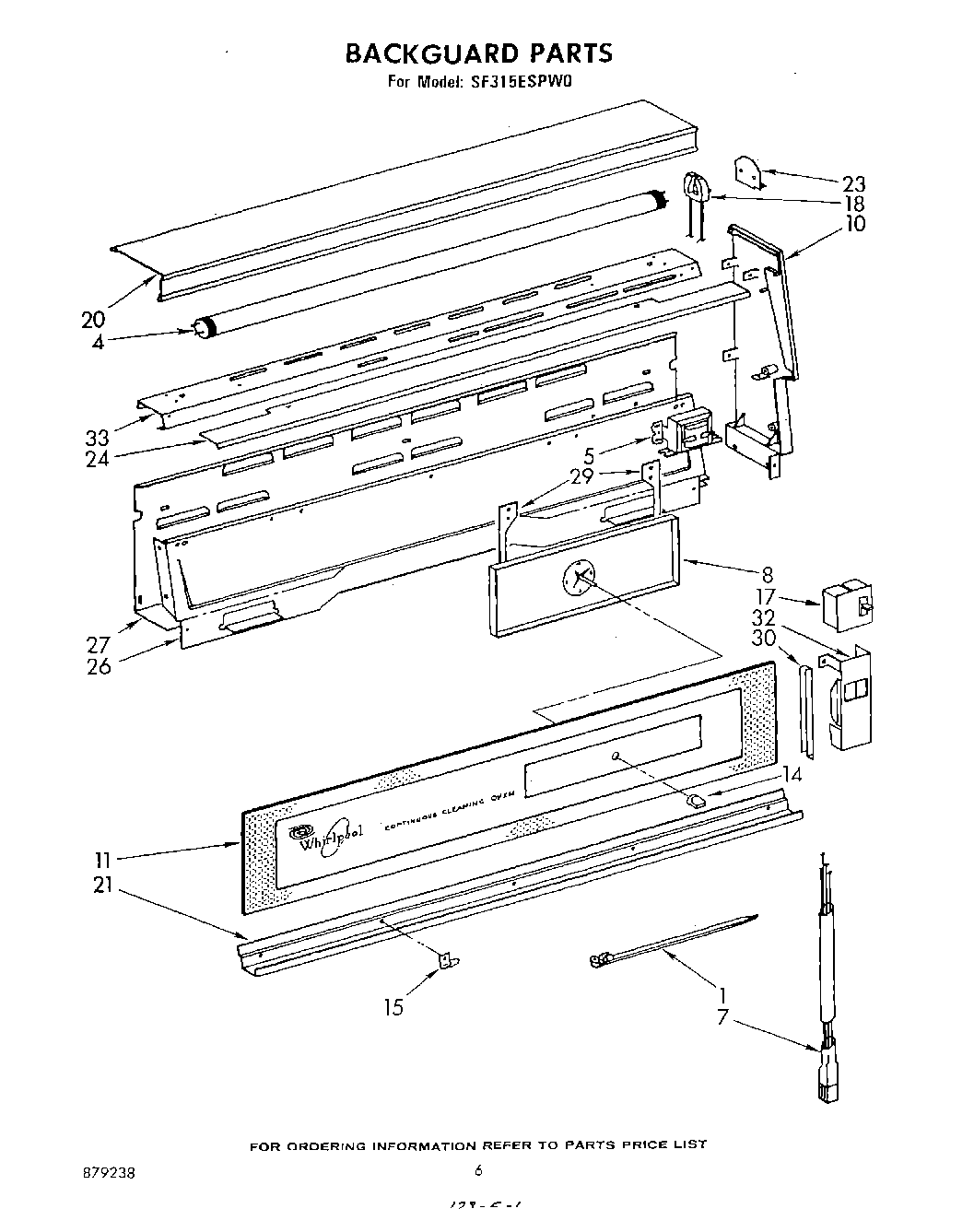

SF315ESPW0 04 – BACKGUARD

Products

Position	Product
1	Clamp, Wire
4	WP95292 Whirlpool Fluorescent Light Bulb
5	Ballast, Fluorescent Light
7	Block, Disconnect Pin
8	Clock, Automatic
10	Cap, End (Left Side)
10	Cap, End (Right Side)
11	Panel, Backguard (White)
14	Knob, Clock (2)
15	Spacer, Backguard Glass (2)
17	Switch, Backguard
18	Socket, Fluorescent Light (Right Side)
18	Socket, Fluorescent Light (Left Side)
20	Trim, Backguard Top
21	Trim, Backguard Bottom
23	Bracket, Brackguard Lampholder (Left Side)
23	Bracket, Brackguard Lampholder (Right Side)
24	Retainer, Glass
26	Panel Backguard (Toast)
26	Panel Backguard (Platinum)
26	Panel Backguard (White)
26	Panel Backguard (Almond)
27	Cover, Backguard Wire
29	Support, Clock (Left Side)
29	Support, Clock (Right Side)
30	Trim, Backguard Glass (2)
32	Plate, Switch
33	Brace, Backguard
