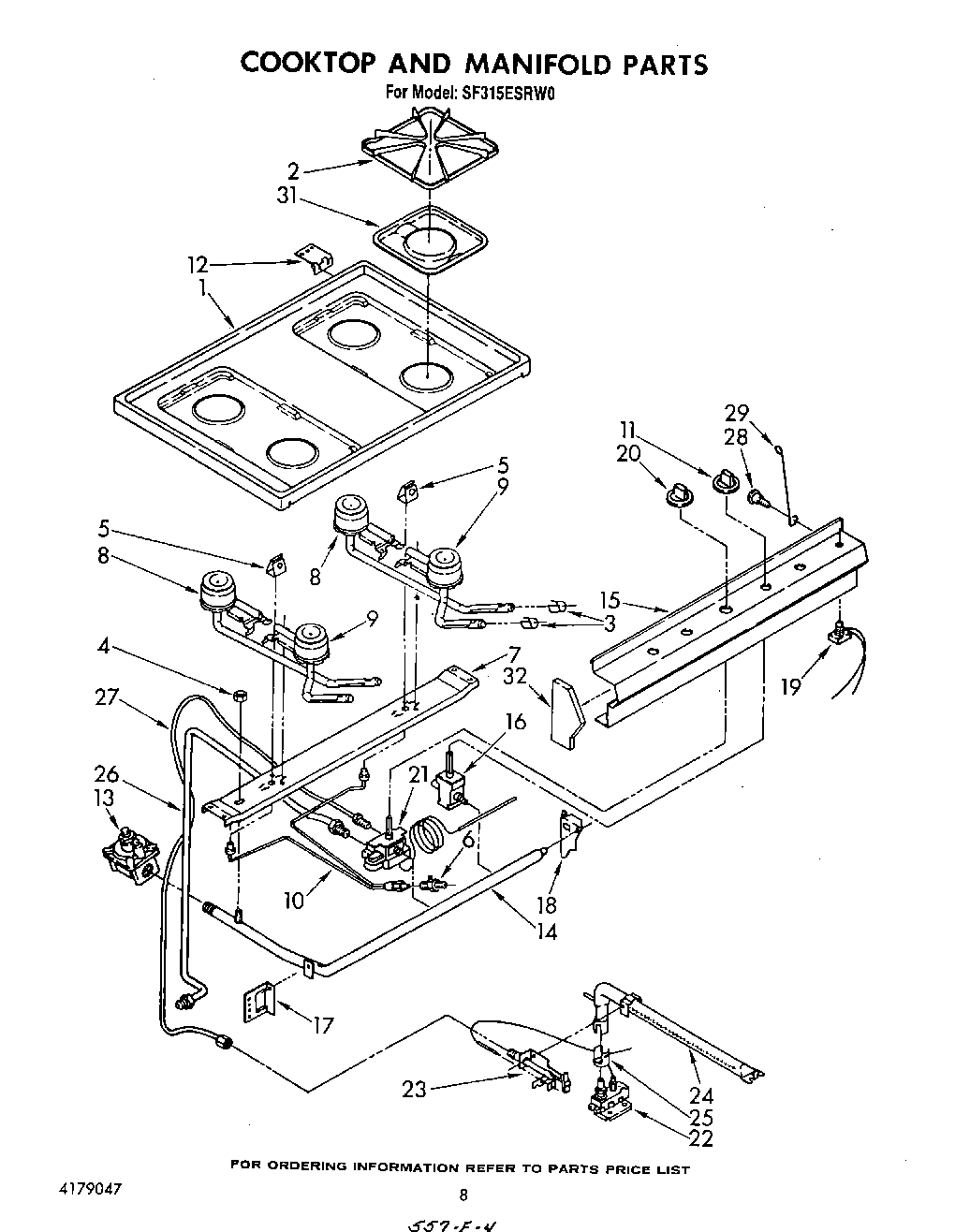

SF315ESRW0 06 – COOK TOP AND MANIFOLD , LITERATURE

Products

Position	Product
	WPL LIT786735
	List, Repair Parts
	Guide, Cooking
	WPL LIT4157063
1	Cooktop (Almond)
1	Cooktop (Platinum)
1	Cooktop (White)
1	Cooktop (Toast)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
5	Cover, Pilot (2)
6	Filter, Pilot
7	Support, Burner
8	Burner, Rear (2)
9	Screw, 10-12 X 3/8 (2)
9	Burner, Front (2)
10	Tubing, Pilot (Incl. No. 6)
11	WP4179282 Whirlpool Knob
12	SCREW
12	Speed Clip (4)
12	Hinge, Maintop (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 180~ (4)
17	Support, Manifold (L.H.)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
19	Switch, Oven Light (2)
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Screw, 10-24 X 1/4 (1)
23	Pilot
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Screw
29	Rod, Support
31	WP786333 Whirlpool Drip Bowl
32	Endcap (R.H.)
32	Endcap (L.H.)
32	WPW10208653 Whirlpool Insulation
32	FOIL, ALUMINUM OVEN (18“ X 25 )
