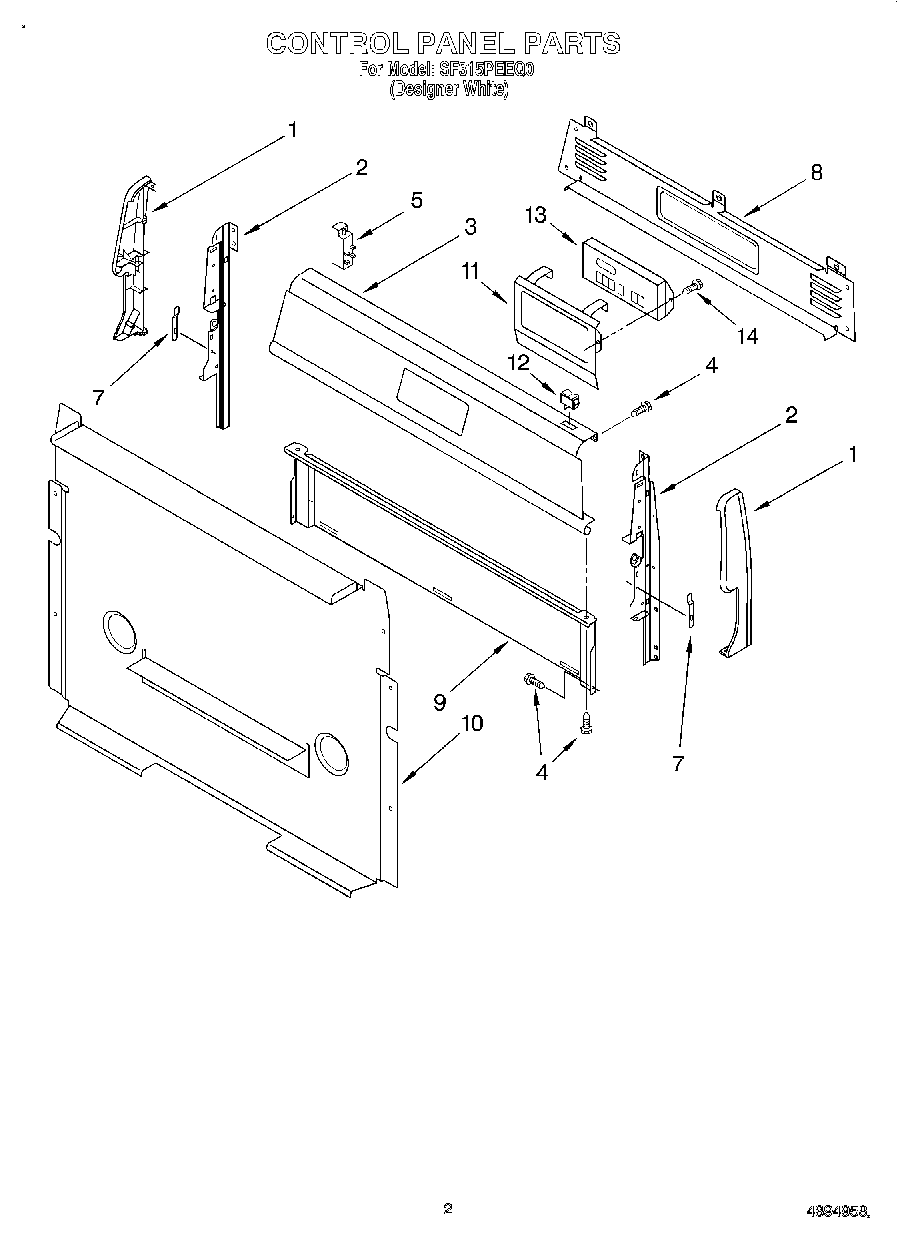

SF315PEEQ0 02 – CONTROL PANEL

SF315PEEQ0 02 – CONTROL PANEL

Written by

in

SF315PEEQ0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (White Left Hand)
1Endcap (White Right Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (White)
5WPY706189 Whirlpool Stove Screw
5WPW10110491 Whirlpool Spark Module
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
9Screw
10Cover, Lower
11Bracket, Control
123149360 Whirlpool Light Switch
13Control, Oven
14SCREW
