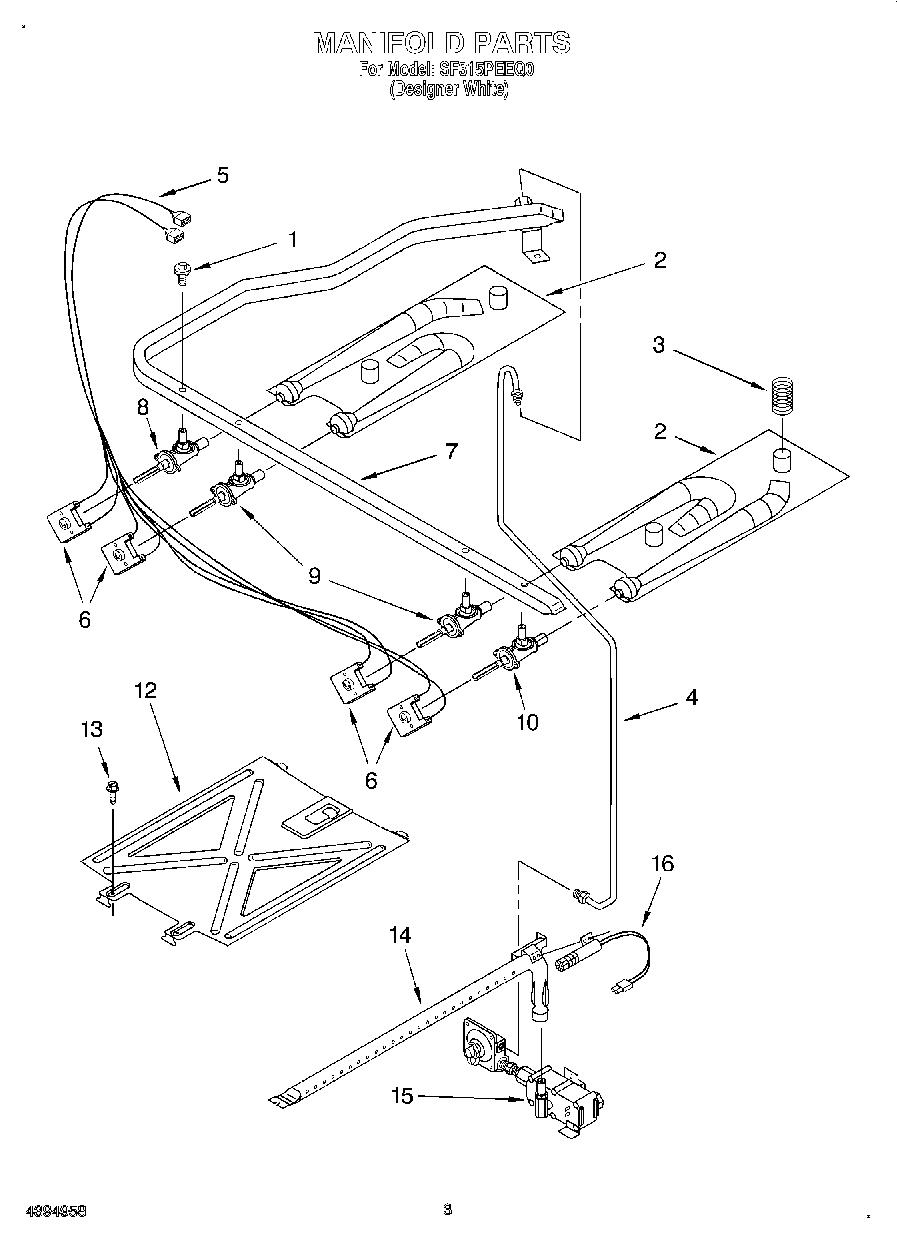

SF315PEEQ0 03 – MANIFOLD

Products

PositionProduct
1WP3186217 Whirlpool Screw
2Plate, Venturi (Right Hand)
2Plate, Venturi (Left Hand)
3Spring, Seal (4)
4Tubing (Manifold to Regulator)
5Harness, Igniter (Incl. Switches)
6Switch, Igniter (4)
7Pipe, Manifold
8Valve, 7,500 BTU (LR)
9Valve, 9,500 BTU (LF, RF)
10Valve, 6,500 BTU (RR)
12Spreader, Flame
13WP3196175 Whirlpool Screw
14SCREW
14Burner, Oven
143196265 Whirlpool Oven Screw
15WP3196183 Whirlpool Screw
15Valve, Gas Combo
16Igniter, Bake/Broil
16W11684507 Whirlpool Screw
