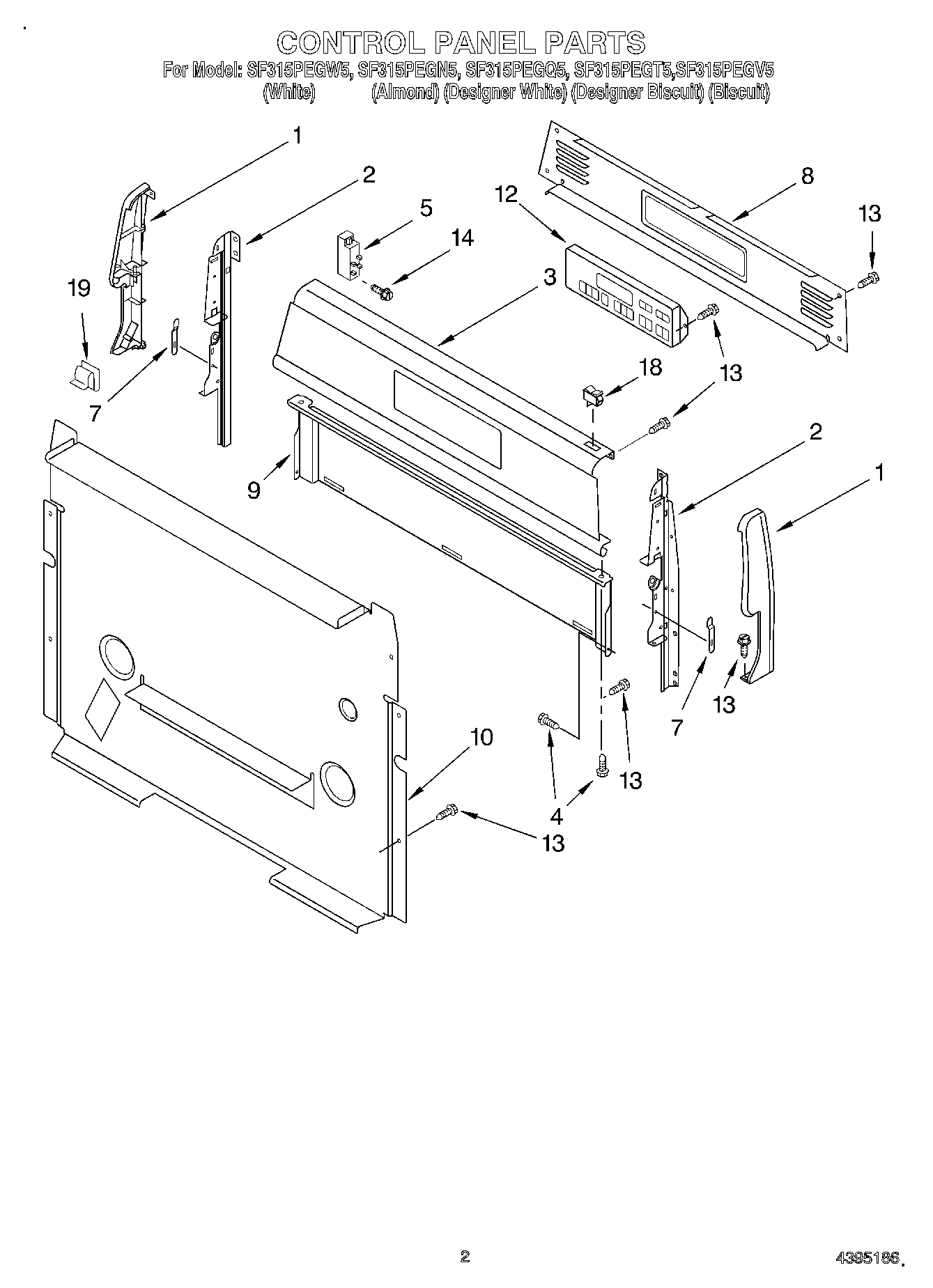

SF315PEGN5 02 – CONTROL PANEL

SF315PEGN5 02 – CONTROL PANEL

Written by

in

SF315PEGN5 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Black Left Hand)
1Endcap (Biscuit Right Hand)
1Endcap, Right Hand (Black)
1Endcap (White Right Hand)
1Endcap (White Left Hand)
1Endcap (Biscuit Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (Black)
3Panel, Backguard (White)
3Panel, Backguard (Biscuit)
4Screw
5WP8053421 Whirlpool Oven Spark Module
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
12Control, Range (Biscuit)
12Control, Range (White)
12Control, Range (Black)
13SCREW
14WPY706189 Whirlpool Stove Screw
18WP4314961 Whirlpool Lite Switch
18Switch, Rocker (Biscuit)
183149360 Whirlpool Light Switch
19WP8273564 Whirlpool Clip
